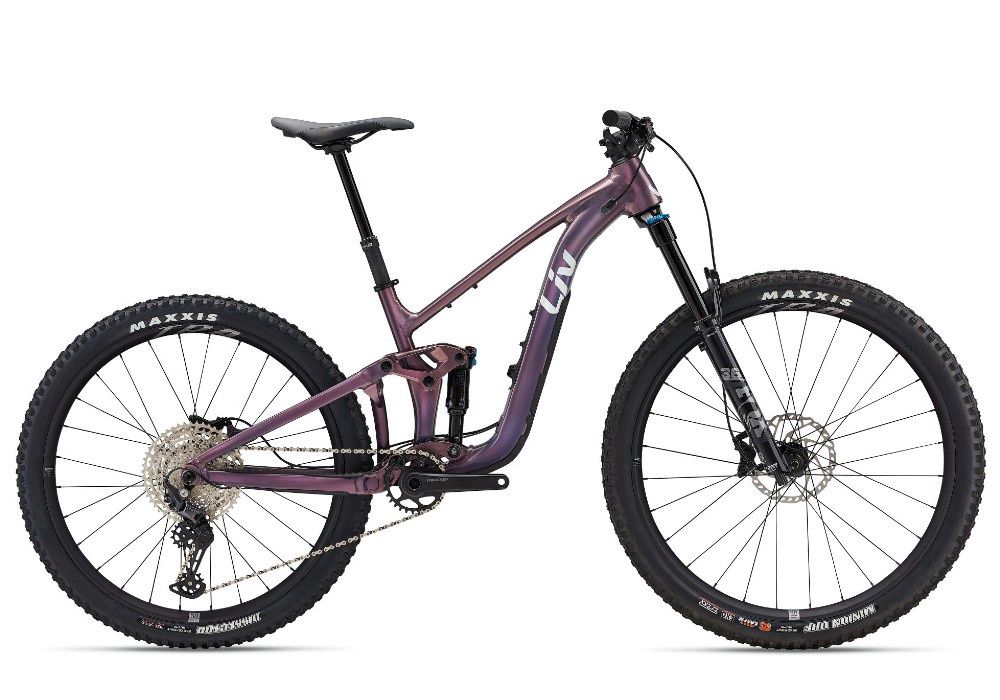

Liv Intrigue X 2

The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customisation with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.

Key Performance Factors

Performance Mid Travel Trail

Constructed with lightweight and durable ALUXX SL-grade aluminium, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and stability,

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your set.

Specification

• Sizes
  XS, S, M, L
• Colours
  Gloss Desert Dawn
• Frame
  ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
• Fork
  Fox 36 Float Rhythm, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset
• Shock
  Fox Float Performance, 185x52.5, custom tuned for Liv
• Handlebar
  Giant Contact TR35, 20mm rise, alloy
• Stem
  Giant Contact SL, 35mm
• Seatpost
  Giant Contact Switch, adjustable dropper, remote XS&S: 140-170mm travel / 30.9 x 470mm M&L: 170-200mm travel / 30.9 x 530mm
• Saddle
  Liv Sylvia
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Deore, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano Deore, Shadow +
• Brakes
  Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm
• Brake Levers
  Shimano BL-MT401
• Cassette
  Shimano Deore M6100, 10x51
• Chain
  KMC X12
• Crankset
  Praxis Cadet M24 Boost, 30t, 55mm chainline
• Bottom Bracket
  Praxis, press fit
• Rims
  Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
• Hubs
  alloy, sealed bearing
• Spokes
  Sapim
• Tyres
  Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
• Extras
  3M tailgate protector, factory tubeless set up, integrated down tube storage bag
• Max Tyre Clearance
  2.5"
• Max Chainring Size
  34t

Geometry
