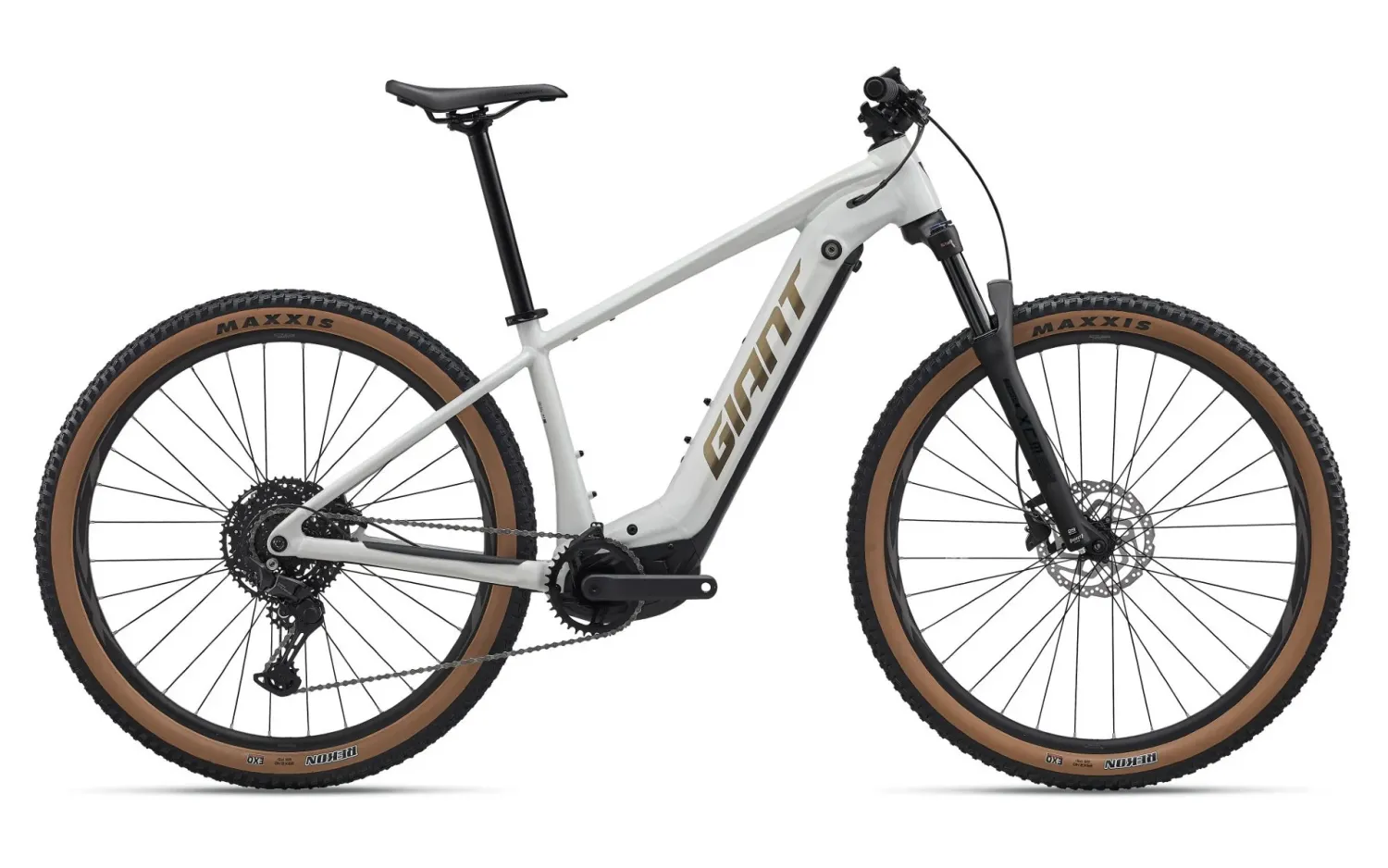

The new SyncDrive Sport motor delivers smooth, instantaneous power with 75Nm of torque to help riders climb steep hills and extend their trail riding capabilities.
Lightweight aluminium frame with trail-friendly geometry, 120mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain.
Integrated EnergyPak Smart with 625Wh of capacity is easy to charge up to 80 percent in 2.5 hours with our 6A Fast Charger.
S | M | L | XL | XXL | ||
---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 380 | 420 | 460 | 495 | 530 |
A1 | SEAT POST INSERTION DEPTH (mm) | 220 | 260 | 300 | 320 | 360 |
B | SEAT TUBE ANGLE | 75.0° | 75.0° | 75.0° | 75.0° | 75.0° |
C | TOP TUBE LENGTH (mm) | 590 | 610 | 630 | 650 | 670 |
D | HEAD TUBE LENGTH (mm) | 110 | 120 | 130 | 140 | 150 |
E | HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
F | FORK RAKE (mm) | 51 | 51 | 51 | 51 | 51 |
G | TRAIL (mm) | 113.4 | 113.4 | 113.4 | 113.4 | 113.4 |
H | WHEELBASE (mm) | 1197 | 1219 | 1241 | 1262 | 1284 |
I | CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 | 470 |
J | BOTTOM BRACKET DROP (mm) | 65 | 65 | 65 | 65 | 65 |
K | STACK (mm) | 647 | 656 | 665 | 675 | 684 |
L | REACH (mm) | 416 | 434 | 451 | 469 | 486 |
M | STAND OVER HEIGHT (mm) | 730 | 757 | 750 | 773 | 776 |
N | HANDLEBAR WIDTH (mm) | 750 | 780 | 780 | 780 | 780 |
O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 | 50 |
P | CRANK LENGTH (mm) | 165 | 165 | 165 | 165 | 165 |
Q | WHEEL SIZE | 29" | 29" | 29" | 29" | 29" |
