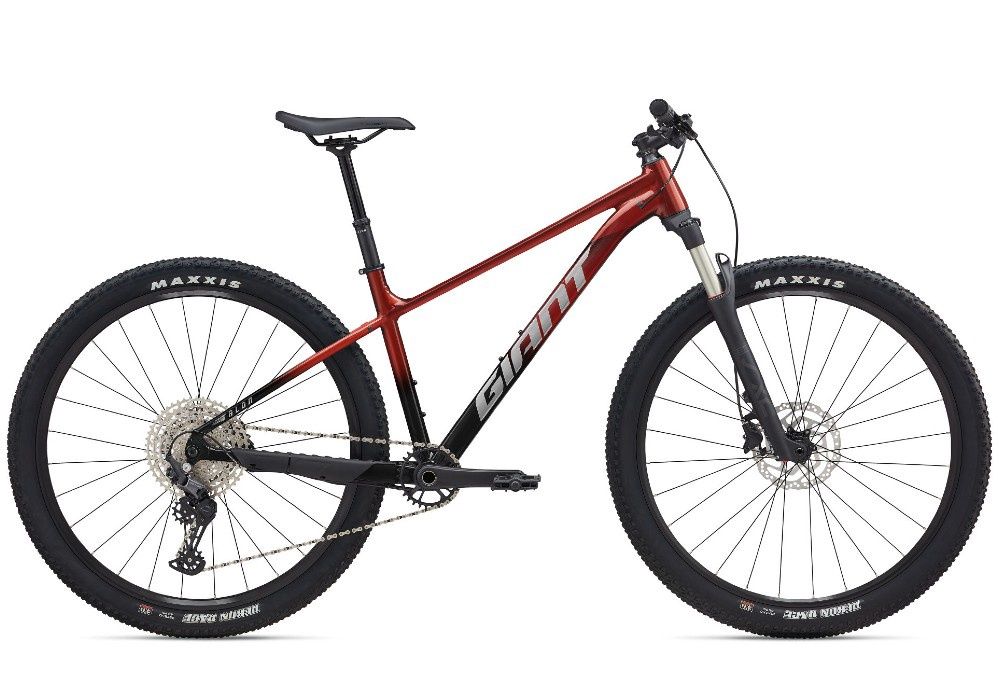

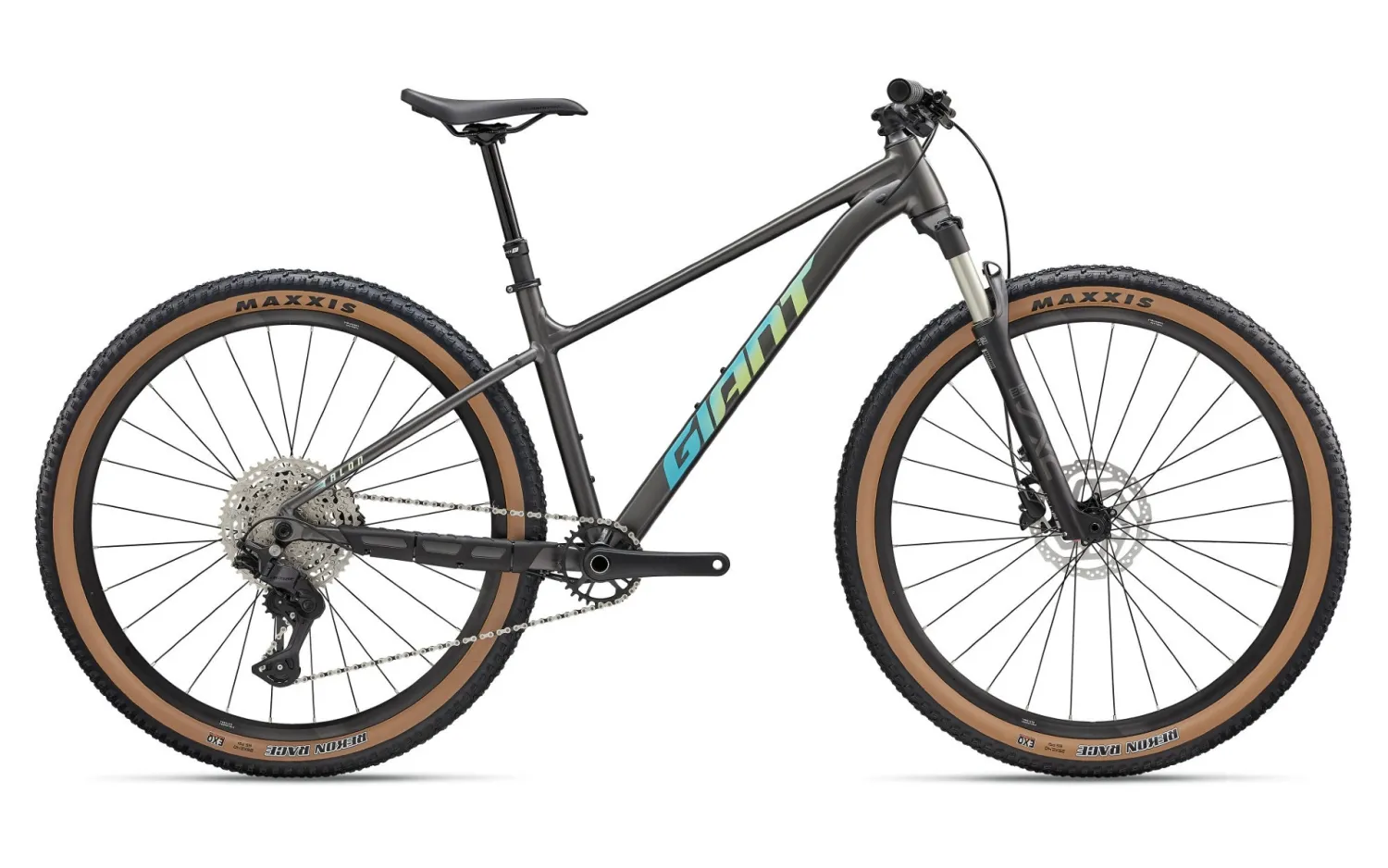

Giant Talon 0

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

• Sizes
  27.5: XS, S 29: S, M, L
• Colours

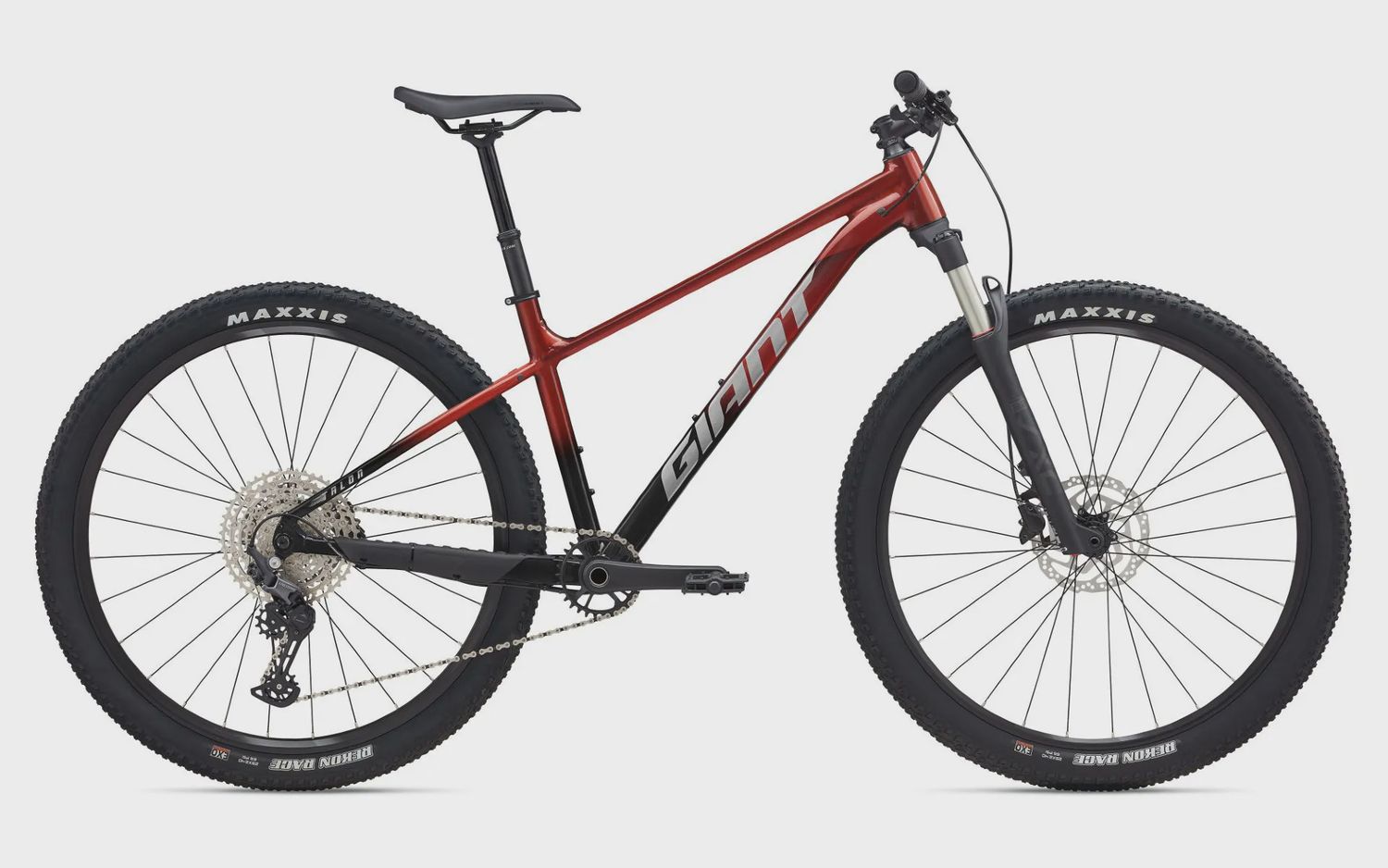

  Gloss Mars Dust/Black/Chrome, Gloss Ultra Navy/Chrome
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SXC32-2 RCL, air sprung, hydraulic lockout, tapered aluminium steerer, aluminium stanchions, 15x110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
• Stem
  Giant Sport, 7-degree rise
• Seatpost
  Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm (27.5) M-XXL: 120mm drop x 400mm (29)
• Saddle
  Giant ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  Shimano Deore M6100, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano Deore M6100
• Brakes
  Shimano Deore BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
• Brake Levers
  Shimano Deore BL-MT200
• Cassette
  Shimano Deore M6100, 10x51
• Chain
  KMC X12
• Crankset
  ProWheel MPX, 32t (27.5) or 30t (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  Shimano, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
• Spokes
  stainless, 14g
• Tyres
  Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
• Extras
  -
• Max Tyre Clearance
  2.4"

Geometry

		XS (27.5")	S (27.5")	M (29")	L (29")	XL (29")	XXL (29")
A	Seat Tube Length (mm)	345	375	420	450	480	500
A1	Seat Post Insertion Depth (mm)	306	337	200	237	292	322
B	Seat Tube Angle	74.0°	74.0°	74.5°	74.5°	74.5°	74.5°
C	Top Tube Length (mm)	542	562	604	629	653	676
D	Head Tube Length (mm)	90	90	105	125	140	155
E	Head Tube Angle	67.0°	67.0°	67.5°	67.5°	67.5°	67.5°
F	Fork Rake (mm)	44	44	44	44	44	44
G	Trail (mm)	105.2	105.2	108.9	108.9	108.9	108.9
H	Wheelbase (mm)	1084	1104	1164	1191	1217	1242
I	Chain Stay Length (mm)	440	440	455	455	455	455
J	Bottom Bracket Drop (mm)	45	45	55	55	55	55
K	Stack (mm)	548	548	606	625	639	653
L	Reach (mm)	385	405	436	456	476	495
M	Stand Over Height (mm)	684	684	709	709	710	707
N	Handlebar Width (mm)	690	690	690	690	690	690
O	Stem Length (mm)	40	50	60	70	80	90
P	Crank Length (mm)	165	165	170	170	175	175
Q	Wheel Size	27.5"	27.5"	29"	29"	29"	29"
