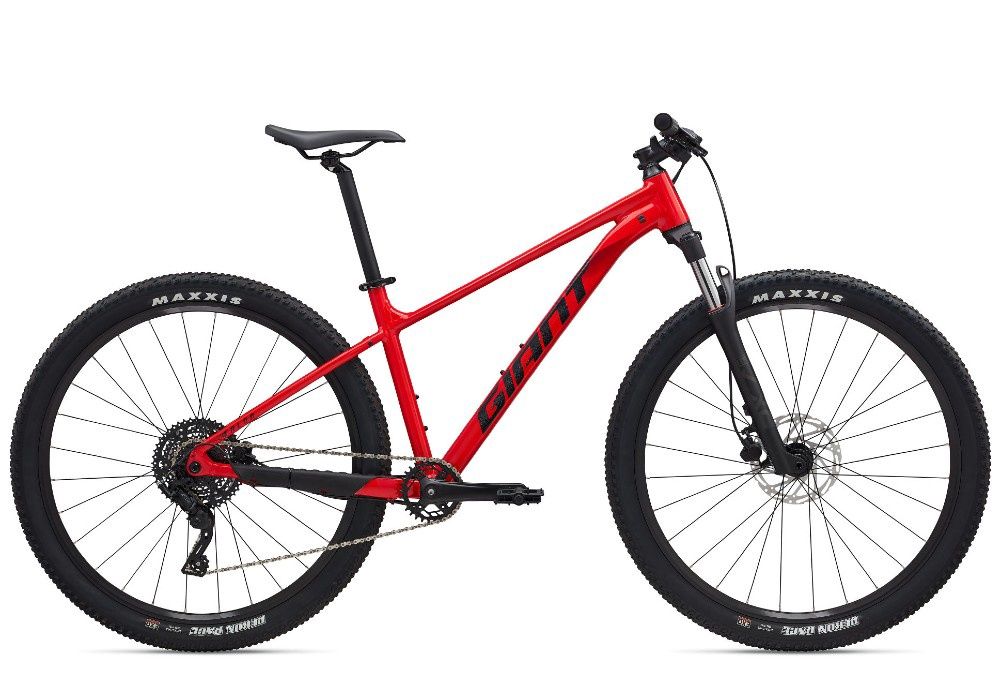

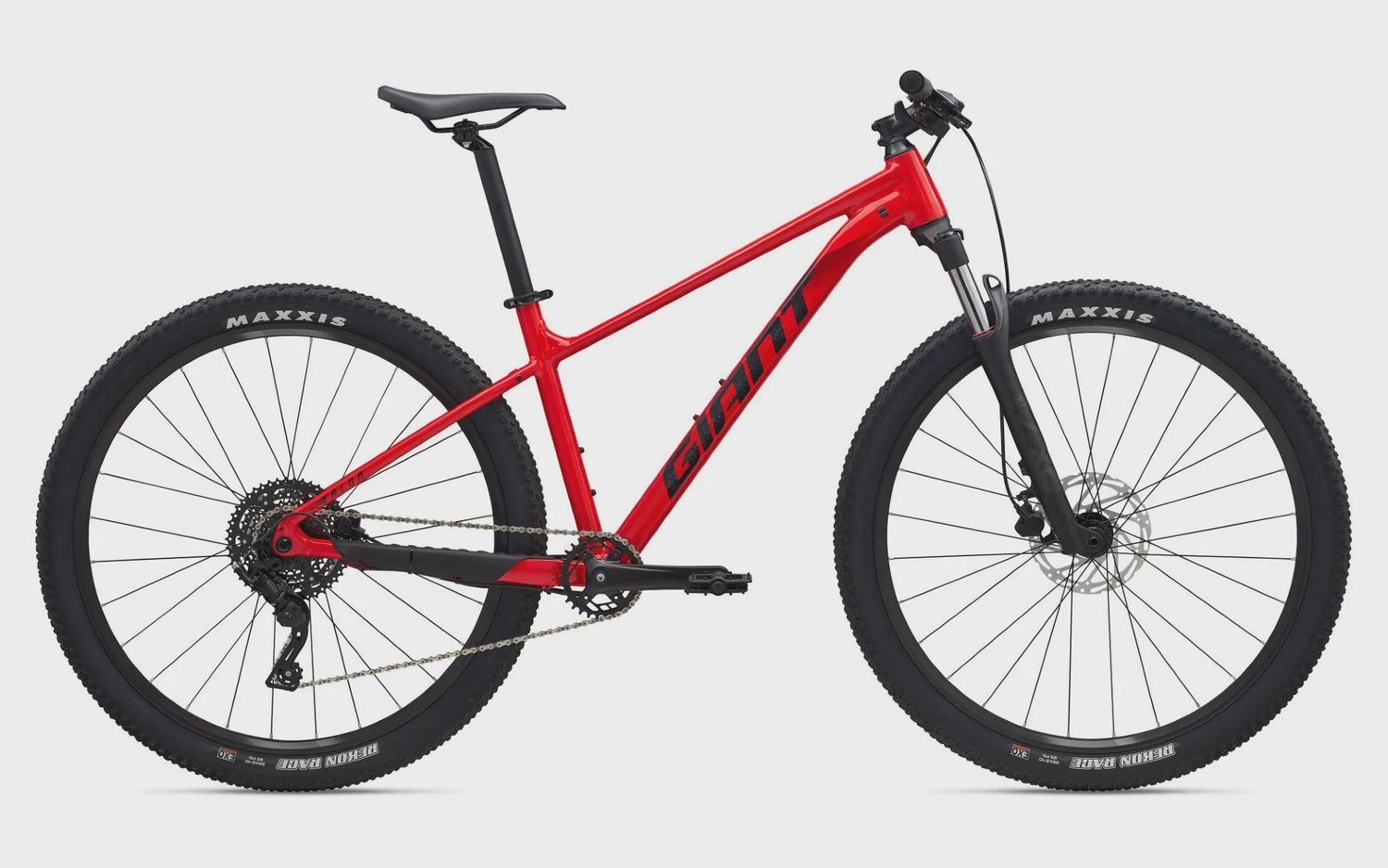

Giant Talon 2

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

• Sizes
  27.5: XS,S 29: M,L,XL,XXL
• Colours
  Gloss Asphalt Green, Gloss Pure Red, Gloss Dried Matcha
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SXC32-3 RCL, coil sprung, hydraulic lockout, tapered aluminium steerer, 15x110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
• Stem
  Giant Sport, 7-degree rise
• Seatpost
  Giant Sport, 30.9mm
• Saddle
  Giant ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  microSHIFT Advent, 1x9
• Front Derailleur
  N/A
• Rear Derailleur
  microSHIFT Advent
• Brakes
  Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Brake Levers
  Tektro HDC M275
• Cassette
  microSHIFT, 11x46
• Chain
  KMC X-9
• Crankset
  ProWheel Charm, 32t (27.5) or 30t (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
• Spokes
  stainless, 14g
• Tyres
  Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
• Extras
  -
• Max Tyre Clearance
  2.4"

Geometry

		S (29")	M (29")	L (29")	XL (29")	XXL (29")	XS (27.5")	S (27.5")
A	Seat Tube Length (MM)	380	420	450	480	500	345	375
B	Seat Tube Angle	74.5°	74.5°	74.5°	74.5°	74.5°	74.0°	74.0°
C	Top Tube Length (MM)	581	604	629	653	676	542	562
D	Head Tube Length (MM)	95	105	125	140	155	90	90
E	Head Tube Angle	67.5°	67.5°	67.5°	67.5°	67.5°	67.0°	67.0°
F	Fork Rake (MM)	44	44	44	44	44	44	44
G	Trail (MM)	108.9	108.9	108.9	108.9	108.9	105.2	105.2
H	Wheelbase (MM)	1139	1164	1191	1217	1242	1084	1104
I	Chain Stay Length (MM)	455	455	455	455	455	440	440
J	Bottom Bracket Drop (MM)	55	55	55	55	55	45	45
K	Stack (MM)	597	606	625	639	653	548	548
L	Reach (MM)	415	436	456	476	495	385	405
M	Stand Over Height (MM)	715	709	709	710	707	684	684
N	Handlebar Width (MM)	690	690	690	690	690	690	690
O	Stem Length (MM)	50	60	70	80	90	40	50
P	Crank Length (MM)	170	170	170	175	175	165	165
Q	Wheel Size	29	29	29	29	29	27	27
Q	Wheel Size	29	29	29	29	29	27	27
