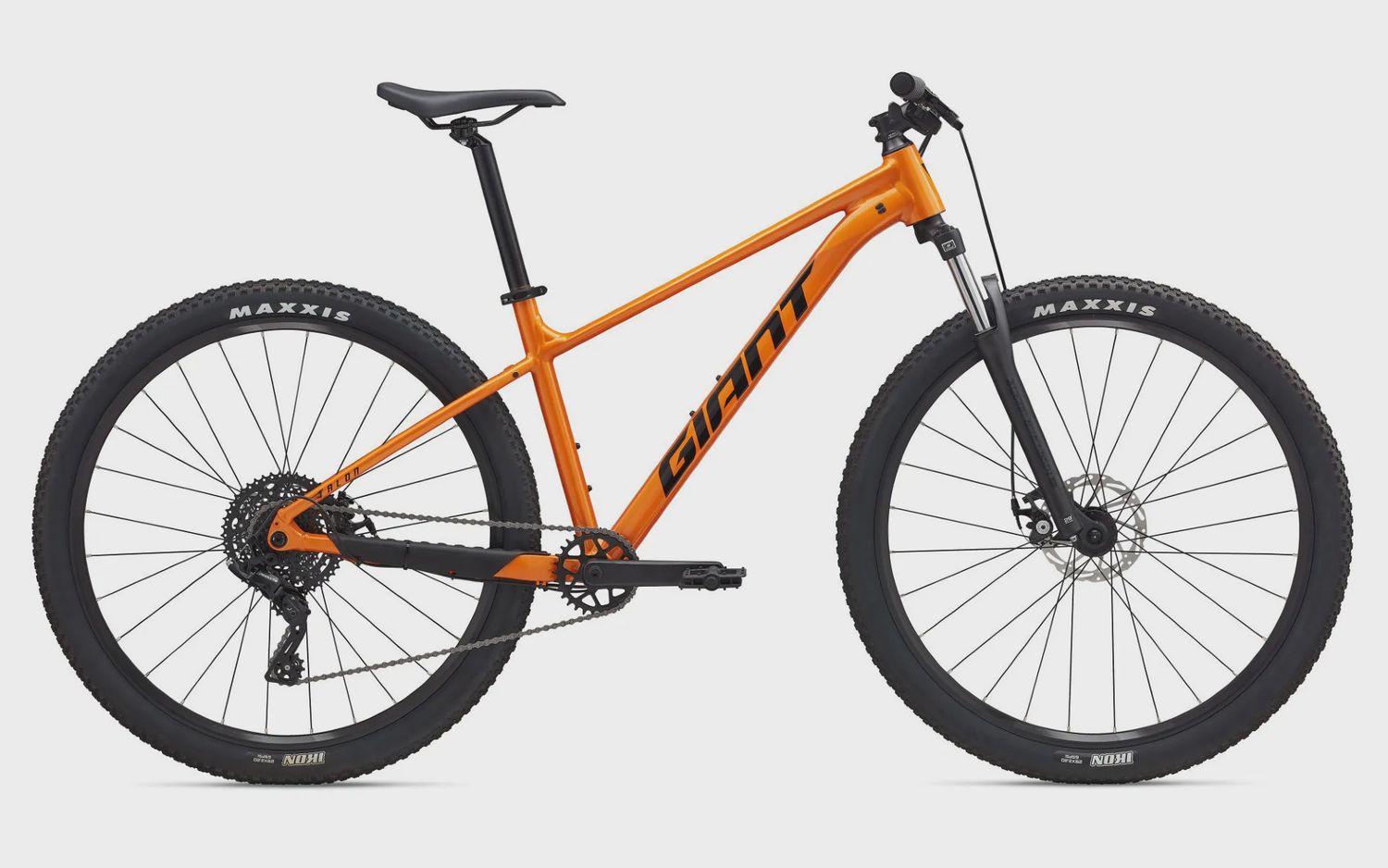

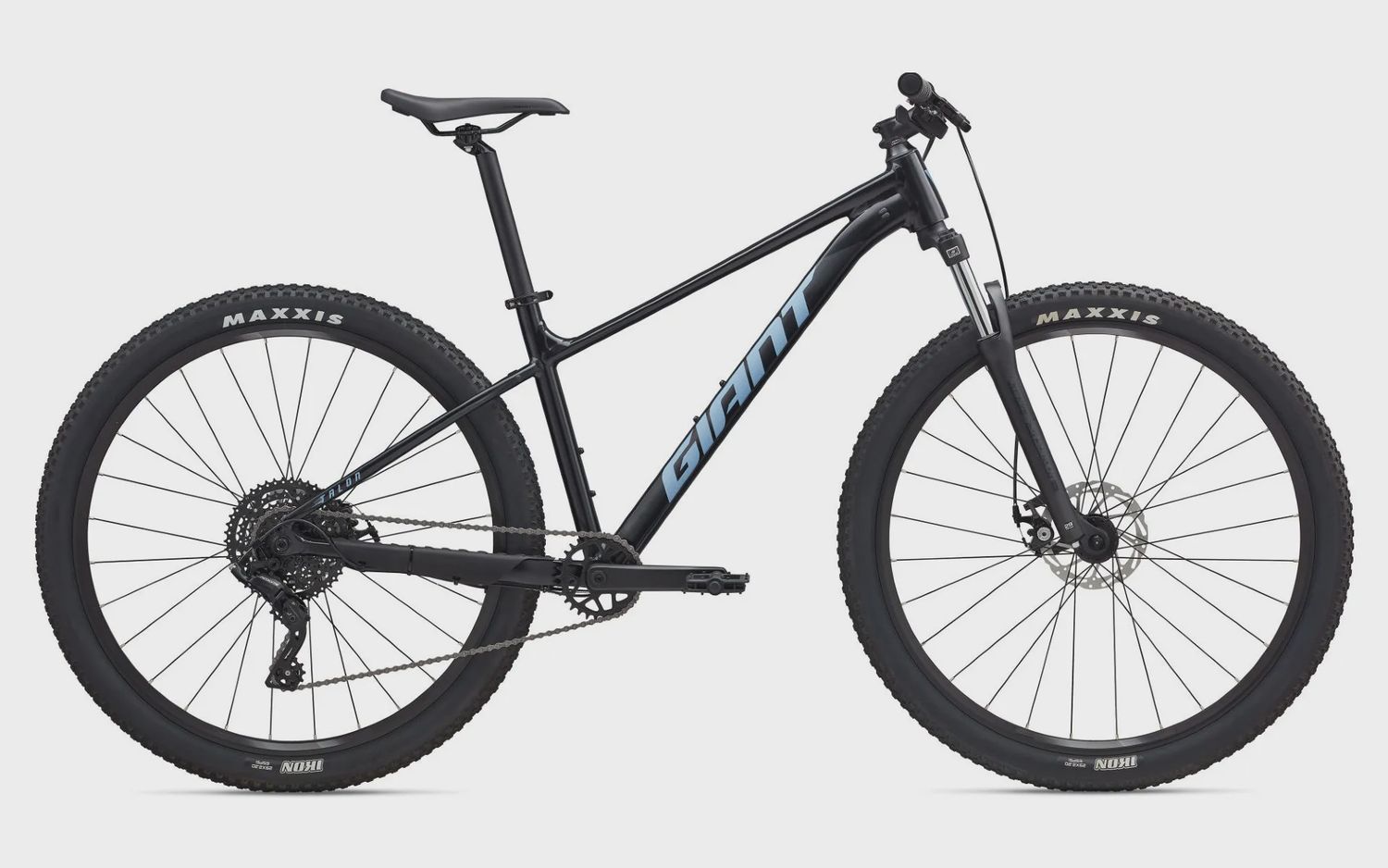

Giant Talon 4

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Key Performance Factors

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Specification

• Sizes
  27.5: XS,S 29: M,L,XL,XXL
• Colours
  Gloss Radiant Orange, Satin Black
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) M-XXL:100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29)
• Stem
  Giant Sport, 7-degree rise
• Seatpost
  Giant Sport, 30.9mm
• Saddle
  Giant ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  microSHIFT Acolyte, 1x8
• Front Derailleur
  N/A
• Rear Derailleur
  microSHIFT Acolyte
• Brakes
  Tektro 172, mechanical, Tektro rotors [F]160mm, [R]160mm
• Brake Levers
  Tektro TBK 172, mechanical
• Cassette
  microSHIFT, 12x46
• Chain
  KMC 8.3
• Crankset
  ProWheel Forged, 33t (27.5) or 30t (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
• Spokes
  stainless, 14g
• Tyres
  Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
• Extras
  -
• Max Tyre Clearance
  2.4"

Geometry
