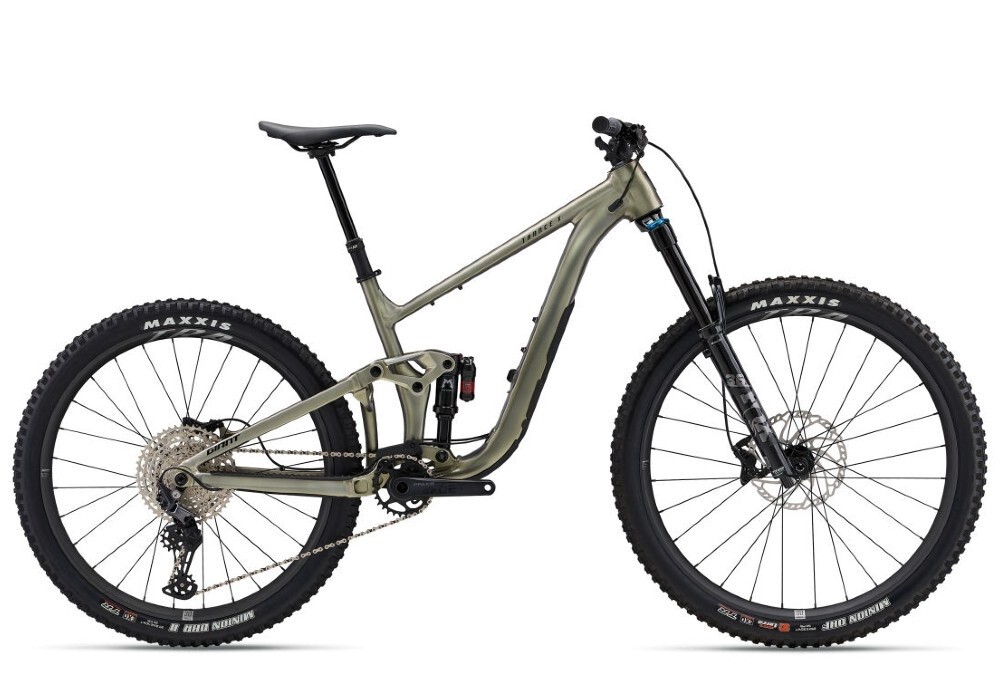

Giant Trance X SX

FROM LOAM TO CHUNDER, ALPINE PEAKS TO DESERT ROCK, THIS TRAIL SLAYER HAS A 29-INCH FRONT WHEEL AND 27.5-INCH REAR FOR THE ULTIMATE COMBO OF QUICKNESS AND CONTROL. WITH 145MM OF REAR SUSPENSION, A BEEFY 160MM FORK, AND ADJUSTABLE GEOMETRY, IT’S READY TO LET LOOSE ON BLACK DIAMOND DESCENTS.

KEY PERFORMANCE FACTORS

Updated suspension

This “SX” series features all-new Maestro rear suspension with added travel (145mm) for technical singletrack and rugged descents. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a longer travel 160mm fork, giving riders superior confidence and control on the descents.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry to suit their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so you can easily achieve your preferred positioning.

Mixed wheel setup

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and manoeuvrability to help riders rail corners, pop over features and show off their style.

Specification

• Sizes
  S, M, L
• Colours
  Gloss Golden Haze
• Frame
  ALUXX SL-grade aluminium front and rear triangles, 145mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Fork
  Fox 36 Float Rhythm, GRIP damper, 44mm offset, 160mm, 15x110 Kabolt, custom tuned for Giant
• Shock
  Marzocchi Bomber Air, 185/55, custom tuned for Giant
• Handlebar
  Giant Contact TR35, 780x35mm, 20mm rise
• Grips
  Giant Tactal Pro Single S:120mm, M:120mm, L:130mm
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:50mm
• Seatpost
  Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm
• Saddle
  Giant Romero
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Deore, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano Deore
• Brakes
  Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers
  Shimano Deore BL-MT401
• Cassette
  Shimano Deore, 10x51
• Chain
  KMC X-12
• Crankset
  Praxis Cadet, 30t, 55mm chainline
• Bottom Bracket
  Praxis, press fit
• Rims
  Giant TRA 2, 29" wheelset, hookless aluxx wheelsystem, 30mm inner width, 40mm outer width
• Hubs
  [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
• Spokes
  Sapim, 28, J-bend
• Tyres
  [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless
• Extras
  Factory tubeless set up, 2.5" max tyre size, 36t max chainring size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
