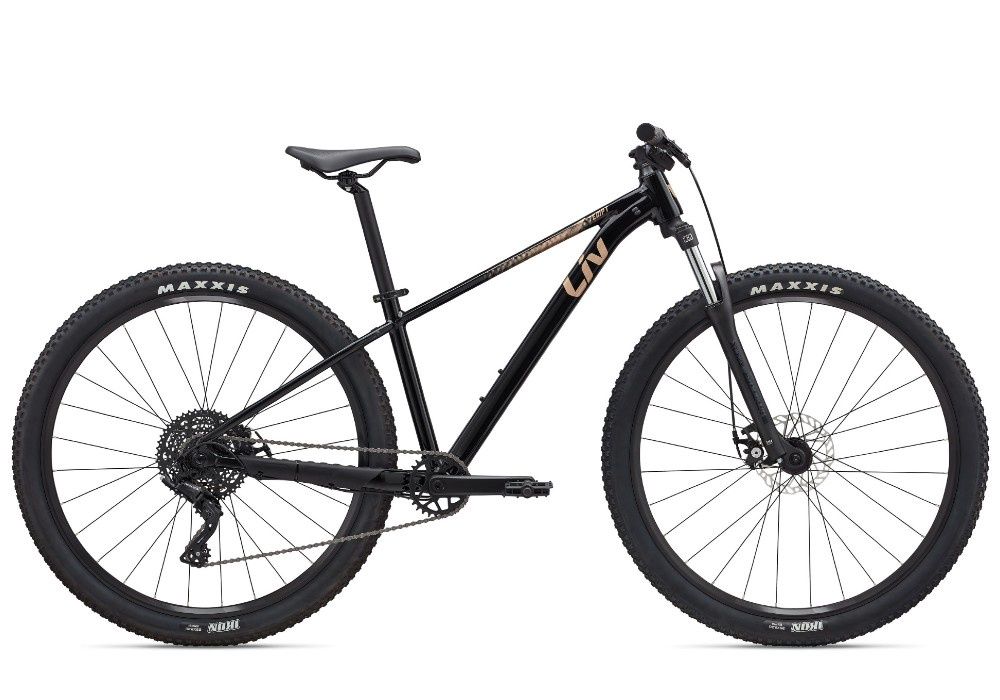

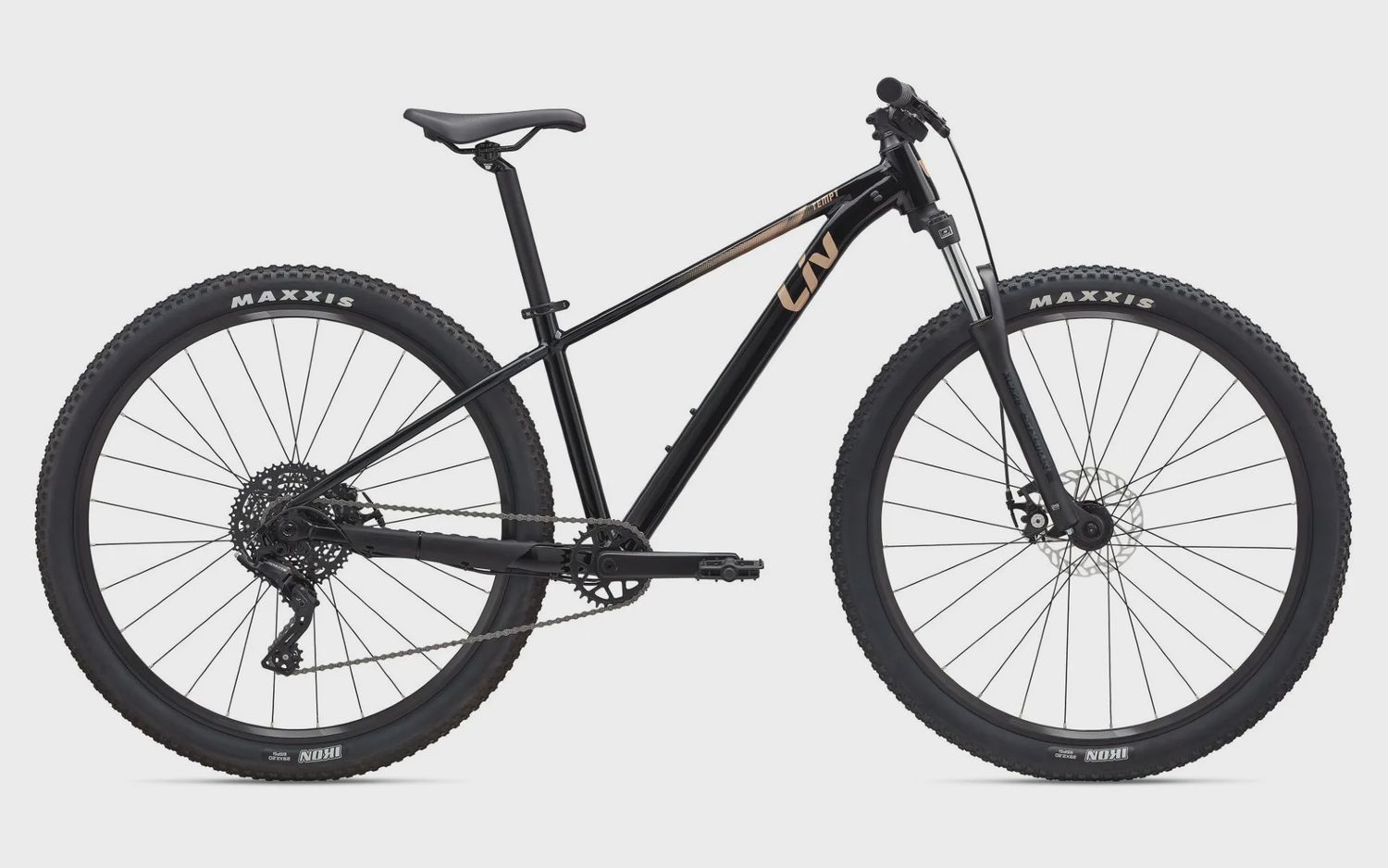

Liv Tempt 4

Modern MTB Design

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Off-Road Control

The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

Specification

• Sizes
  27.5: XS, S 29: S, M, L
• Colours
  Gloss Black/Golden Wheat, Satin Nordic Breeze/Frost Silver
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) S-L:100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29)
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree rise
• Seatpost
  Giant Sport, 30.9mm
• Saddle
  Liv ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  microSHIFT Acolyte, 1x8
• Front Derailleur
  N/A
• Rear Derailleur
  microSHIFT Acolyte
• Brakes
  Tektro 172, mechanical, Tektro rotors [F]160mm, [R]160mm
• Brake Levers
  Tektro TBK 172, mechanical
• Cassette
  microSHIFT, 12x46
• Chain
  KMC 8.3
• Crankset
  ProWheel Forged, 33t (27.5) or 30t (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  Alloy, sealed bearing, [F] 9x100 QR, [R] 12x142 thru-axle
• Spokes
  stainless, 14g
• Tyres
  Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
• Extras
  -
• Max Tyre Clearance
  2.4"
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
