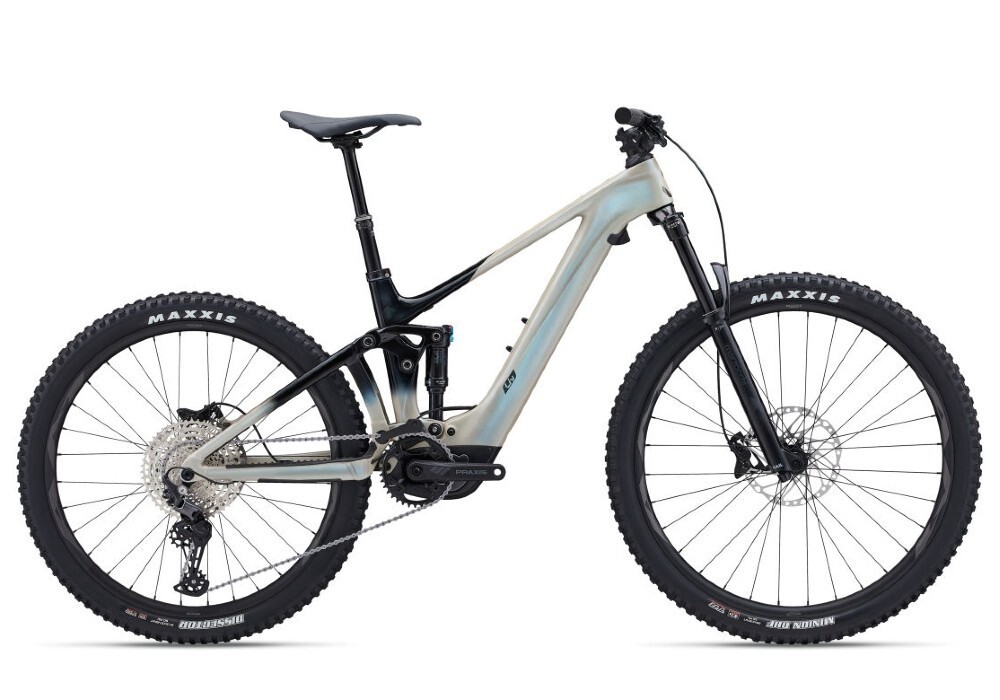

Liv Intrigue X Advanced E+ Elite 3

Lightweight and nimble

This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.

Powerful and smooth

A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.

Sleek design

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

Specification

• Motor
  Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
• Controller
  Giant RideControl Ergo3, grip integrated remote
• Display
  Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
• Battery
  Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
• Charger
  Giant EnergyPak 4A smart charger, 60% in 1:45
• Connectivity
  Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes
  XS, S, M
• Colours
  Gloss Shoreline / Black
• Frame
  Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
• Fork
  Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
• Shock
  Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
• Handlebar
  Giant Contact 35 Trail
• Grips
  Liv Tactal Pro-E Single Lock-On Grips
• Stem
  Giant Contact SL 35
• Seatpost
  Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm)
• Saddle
  Liv Sylvia E+
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Deore 1x12
• Front Derailleur
  MRP HD2 co-moulded chain guide
• Rear Derailleur
  Shimano Deore
• Brakes
  Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
• Brake Levers
  Shimano Deore, I-spec EV
• Cassette
  Shimano CS-M6100-12, 10-51T
• Chain
  KMC e.12 Turbo, EcoProteq, e-bike optimised
• Crankset
  Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks
• Bottom Bracket
  n/a
• Rims
  AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
• Hubs
  Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
• Spokes
  Sapim E-Lite [R] Race [F], e-bike optimised
• Tyres
  Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
• Extras
  Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
• Lighting
  Optional:- Giant Recon series e-bike lights available and direct connectable
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
