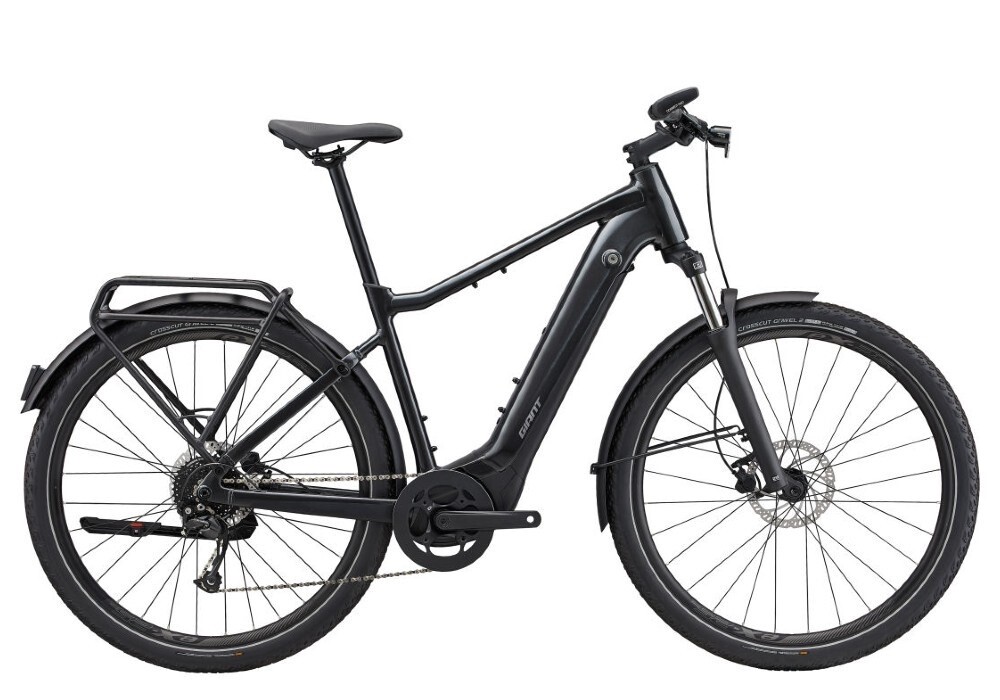

Giant Explore E+ 2

Smooth ride quality

ALUXX aluminum frameset with a 100mm suspension fork and new SyncDrive motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.

Integrated accessories

RideControl Dash allows to check range, battery level and support mode, along with standard cycling data such as speed and distance

Longer Range

EnergyPak battery gives riders the freedom to ride farther.

Specification

• Motor
  SyncDrive Sport 2, 75Nm, powered by Yamaha
• Controller
  RideControl Dash
• Display
  RideControl Dash, full color lcd screen
• Battery
  EnergyPak Smart 625,EnergyPak Plus 250 range extender compatible
• Sizes
  M, L, XL
• Colours
  Gloss Gunmetal Black
• Frame
  ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
• Fork
  SR Suntour XCM34, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
• Shock
  n/a
• Handlebar
  Giant Connect Riser 31.8x690mm
• Grips
  Giant Contact
• Stem
  Giant Contact (S/M: 80mm L/XL/XXL 100mm)
• Seatpost
  Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle
  Selle Royal Vivo Ergo Moderate
• Pedals
  Aluminium Platform
• Shifters
  Shimano Altus 1x9
• Front Derailleur
  n/a
• Rear Derailleur
  Shimano Alivio
• Brakes
  Tektro HD-M275, hydraulic disc, 180mm
• Brake Levers
  Tektro HD-M275
• Cassette
  Shimano CS-HG200, 11-36T, 9-speed
• Chain
  KMC e.9 Sport, e-bike optimised
• Crankset
  Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
• Bottom Bracket
  n/a
• Rims
  eX25, Tubeless Ready, 622x25 Aluminium
• Hubs
  Giant eTracker, [F] 110x15 [R] 142x12
• Spokes
  Stainless steel
• Tyres
  Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
• Lighting
  Recon E HL50 StVZO [F]AXA NYX 6-12V E-bike tail light [R]
• Lock
  ABUS Xplus battery lock
• Carrier
  MIK rack. System bag & basket compatible
• Fender/Chainguard
  Aluminium
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
