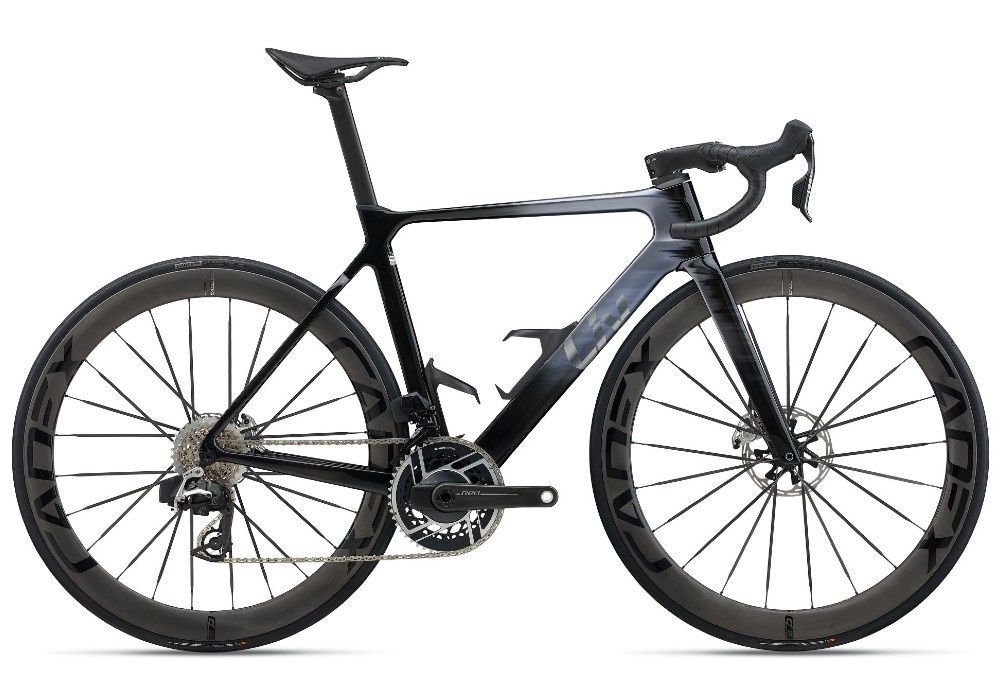

Liv EnviLiv Advanced SL

The EnviLiv Advanced SL is designed and optimised for aerodynamic performance, making it the official aero road bike of Liv AlUla Jayco WorldTeam. From stage race breakaways to the final criterium lap, the EnviLiv is made to be out front.

Key Performance Factors

Optimised Aerodynamics

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The EnviLiv features truncated ellipse airfoil tube shapes and the Liv Contact SLR Aero handlebar, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the new EnviLiv has found the sweetest spot, with an Advanced SL-grade composite frameset. We use Continuous Fibre Technology to add strength without adding weight, Carbon Nanotube Technology resin to improve impact resistance, and Fusion Process for lighter, stronger frame junctions. So you can accelerate faster away from the pack.

Seamless Integration

When every second matters, so does every detail. So we developed a way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Specification

• Sizes
  XS, S, M
• Colours
  Gloss Mercury/Carbon Smoke/Chrome
• Frame
  Advanced SL-grade composite, 12x142mm thru-axle, disc
• Fork
  Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Shock
  N/A
• Handlebar
  Liv Contact SLR Aero, 31.8mm
• Stem
  Giant Contact SLR Aero
• Seatpost
  Giant Vector SLR, full-composite
• Saddle
  CADEX Amp
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM RED eTap AXS 2x12
• Front Derailleur
  SRAM RED eTap AXS
• Rear Derailleur
  SRAM RED eTap AXS
• Brakes
  SRAM RED eTap hydraulic, SRAM PaceLine X rotors [F] 160mm, [R] 140mm
• Brake Levers
  SRAM RED eTap AXS hydraulic
• Cassette
  SRAM RED, 12-speed, 10x33
• Chain
  SRAM RED
• Crankset
  SRAM RED PM E1 DUB, 35/48 with power meter
• Bottom Bracket
  SRAM, press fit
• Rims
  CADEX 50 Ultra WheelSystem, [F] 50mm, [R] 50mm
• Hubs
  [F] CADEX R3-C Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C40 Aero Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  CADEX Aero Carbon Spoke
• Tyres
  CADEX Aero, tubeless, 700x25c (26.5mm), folding
• Extras
  Out front computer mount, two bottle cages, factory tubeless set up, 30mm max tyre size
• Max Tyre Clearance
  30mm
