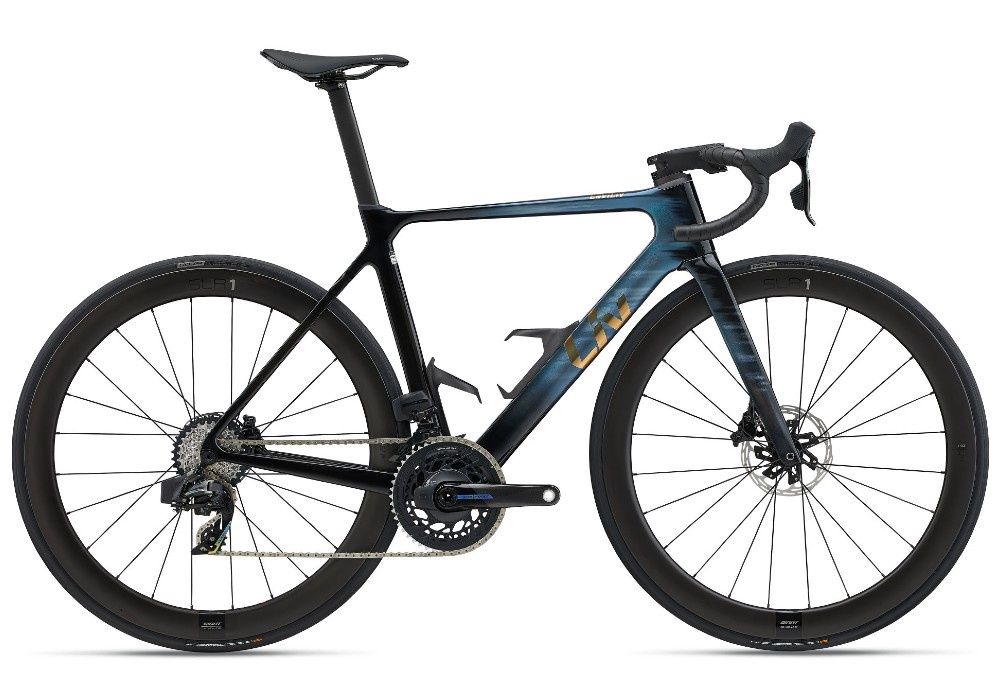

Liv EnviLiv Advanced Pro 0 AXS

From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front. We’ve redesigned our signature sprinter for optimised aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.

Key Performance Factors

Optimised Aerodynamics

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SLR Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and an Advanced SL-grade composite fork—resulting in 205 grams of weight savings over the previous generation.

Seamless Integration

When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Specification

• Sizes
  XS, S, M
• Colours
  Gloss Ocean Twilight/Carbon Smoke/Gold Chrome
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc
• Fork
  Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Shock
  N/A
• Handlebar
  Liv Contact SLR Aero, 31.8mm
• Stem
  Giant Contact SL Aero
• Seatpost
  Giant Vector, composite
• Saddle
  Liv Alcara SL
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM Force eTap AXS 2x12
• Front Derailleur
  SRAM Force eTap AXS
• Rear Derailleur
  SRAM Force eTap AXS
• Brakes
  SRAM Force eTap AXS hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers
  SRAM Force eTap AXS hydraulic
• Cassette
  SRAM Force, 12-speed, 10x33
• Chain
  SRAM Force D1
• Crankset
  SRAM Force D2 DUB, 35/48 with power meter
• Bottom Bracket
  SRAM, press fit
• Rims
  Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
• Hubs
  [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  SAPIM CX-Ray
• Tyres
  CADEX Race 25, tubeless, 700x25c (26.5mm), folding
• Extras
  Out front computer mount, two bottle cages, factory tubeless set up, 30mm max tyre size
• Max Tyre Clearance
  30mm
