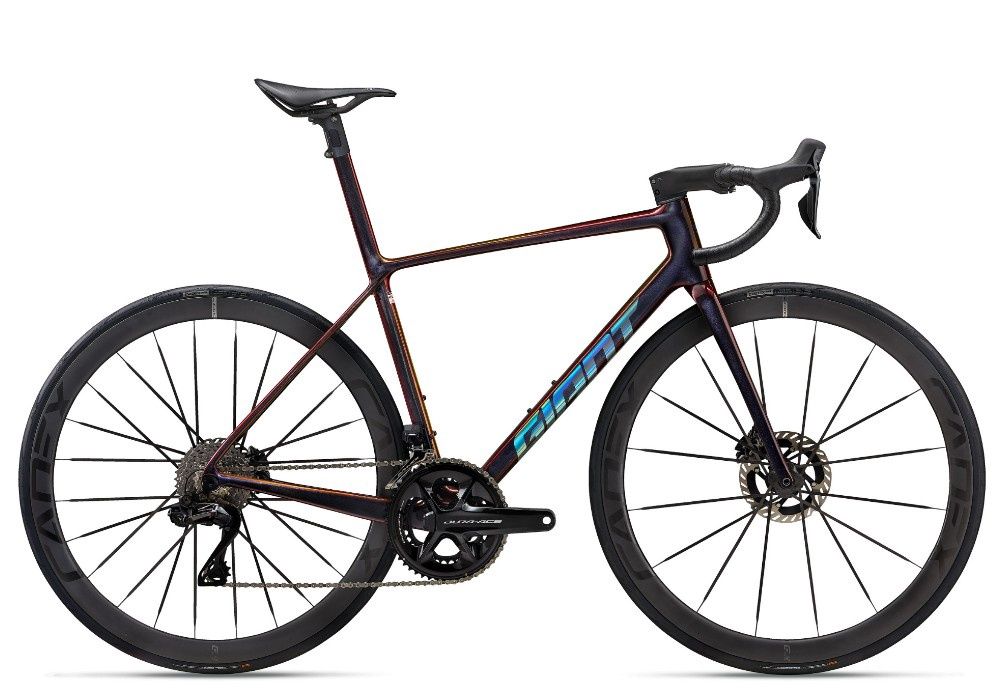

Giant TCR Advanced SL 0 Di2

FROM HORS CATEGORIE CLIMBS TO ROLLERS AND FLATS, THIS WORLDTOUR LEVEL RACE BIKE IS THE PRO’S CHOICE FOR ALL-ROUNDER PERFORMANCE. THE ALL-NEW FLAGSHIP TCR USES SYSTEM INTEGRATION AND INNOVATIVE CONSTRUCTION METHODS TO DELIVER A CLEAR ADVANTAGE ON THE ROAD.

KEY PERFORMANCE FACTORS

SYSTEM OPTIMISATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Specifciation

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Gloss Black Lava/Iris
• Frame
  Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
• Fork
  Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Handlebar
  Giant Contact SLR, 10.5 degree flare
• Grips
  Giant Stratus Lite 2.0 with gel
• Stem
  Giant Contact SLR Aerolight
• Seatpost
  Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mm
• Saddle
  CADEX Amp With One-piece SMC Base / 9mm Carbon Rail / ParticleFlow technology
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Dura Ace Di2 2x12
• Front Derailleur
  Shimano Dura Ace Di2
• Rear Derailleur
  Shimano Dura Ace Di2
• Brakes
  Shimano Dura Ace hydraulic disc, RT CL900 160/140mm rotors
• Brake Levers
  Shimano Dura Ace hydraulic disc
• Cassette
  Shimano Dura Ace, 11x34
• Chain
  Shimano CN- M9100, 12-speed
• Crankset
  Shimano Dura Ace, 36/52 with FC-9200P Power Meter
• Bottom Bracket
  Shimano PressFit, BB92
• Rims
  New CADEX 40 Max Disc Wheel System Hookless + Carbon spoke with GIANT patented DBL (Dynamic Balanced Lacing) technology
• Hubs
  [F] CADEX R3 Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  CADEX Aero Carbon Spoke
• Tyres
  New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding
• Extras
  Factory tubeless set up, out front computer mount, 33mm max tyre size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
