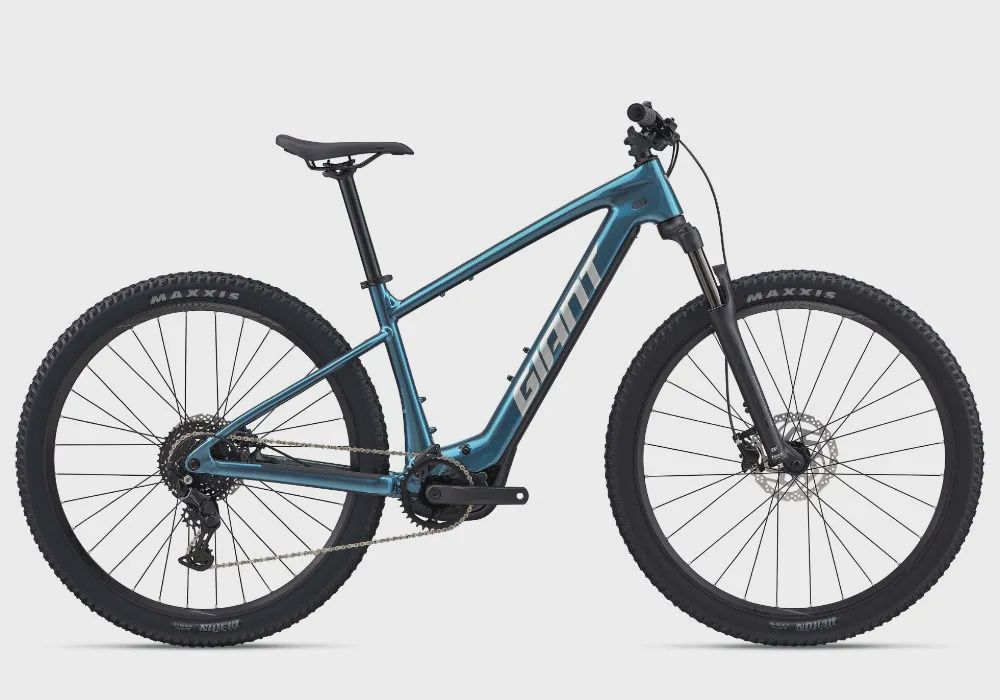

This frame is paired with a SyncDrive Sport 2 motor and removable EnergyPak 430 battery that’s neatly integrated into a slim down tube to help minimise weight. The updated design allows space for two water bottles or a battery range extender for longer rides. A 100mm suspension fork helps smooth out bumpy terrain, while confident off-road geometry gives it a stable ride quality.
A new RideControl Dash 2 handlebar-mounted controller makes it easy to power on the bike and adjust support levels while you ride. You can also use the RideControl App to custom-tune the motor output and optimise range capabilities.
The frameset is crafted with lightweight aluminum shaped with sleek lines and modern styling. It weighs just 21.7kg (size medium)—significantly lighter than most other bikes in its category.
S | M | L | XL | |
---|---|---|---|---|
A Seat Tube Length (mm) | 385 | 435 | 485 | 535 |
A1 Seat Post Insertion Depth (mm) | 200 | 240 | 260 | 260 |
B Seat Tube Angle | 78.0° | 74.0° | 74.0° | 74.0° |
C Top Tube Length (mm) | 580 | 600 | 620 | 640 |
D Head Tube Length (mm) | 100 | 115 | 130 | 145 |
E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
F Fork Rake (mm) | 46 | 46 | 46 | 46 |
H Wheelbase (mm) | 1144 | 1165 | 1187 | 1209 |
I Chain Stay Length (mm) | 470 | 470 | 470 | 470 |
J Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
K Stack (mm) | 613 | 627 | 641 | 655 |
L Reach (mm) | 404 | 420 | 436 | 452 |
M Stand Over Height (mm) | 723 | 753 | 788 | 808 |
N Handlebar Width (mm) | 750 | 750 | 780 | 780 |
O Stem Length (mm) | 50 | 50 | 50 | 50 |
Q Wheel Size | 29" | 29" | 29" | 29" |
