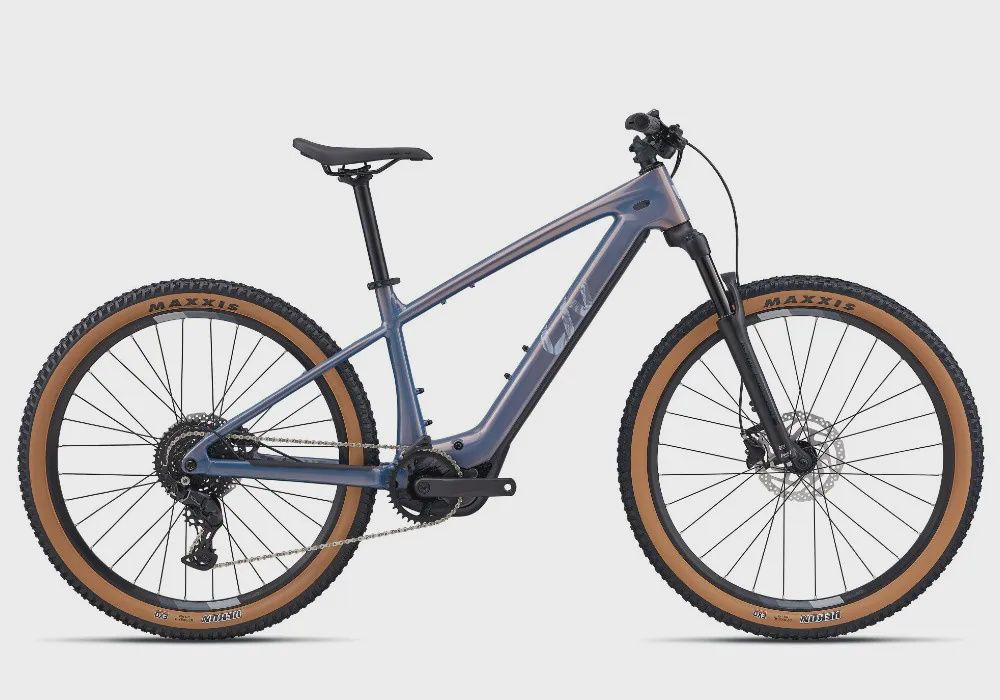

The lightweight ALUXX aluminium frame design provides a quick, agile ride feel. Featuring a new integrated head tube with fewer welds, giving it a sleek, carbon-like modern appearance while also keeping weight down.
With the SyncDrive Sport 2 motor and removable 430Wh battery, this bike provides strong, consistent support wherever you ride. Need to go even farther? An optional 200Wh range extender is available for longer range.
Packed with innovative features, the E-Lock system lets you lock the bike remotely via the App or control unit. Apple Find My compatibility locates your bike with your iPhone, sounds an alarm and sends alerts if the bike is moved, offering added peace of mind.
XS | S | M | ||
A | Seat Tube Length (MM) | 365 | 405 | 445 |
B | Seat Tube Angle | 78.0° | 78.0° | 74.0° |
C | Top Tube Length (MM) | 560 | 570 | 595 |
D | Head Tube Length (MM) | 110 | 115 | 105 |
E | Head Tube Angle | 68.0° | 68.0° | 68.0° |
F | Fork Rake (MM) | 44 | 44 | 46 |
H | Wheelbase (MM) | 1151 | 1162 | 1139 |
I | Chain Stay Length (MM) | 450 | 450 | 470 |
J | Bottom Bracket Drop (MM) | 45 | 45 | 60 |
K | Stack (MM) | 596 | 600 | 618 |
L | Reach (MM) | 433 | 442 | 417 |
N | Handlebar Width (MM) | 690 | 690 | 750 |
O | Stem Length (MM) | 50 | 50 | 50 |
Q | Wheel Size | 27.5+ | 27.5+ | 29" |
