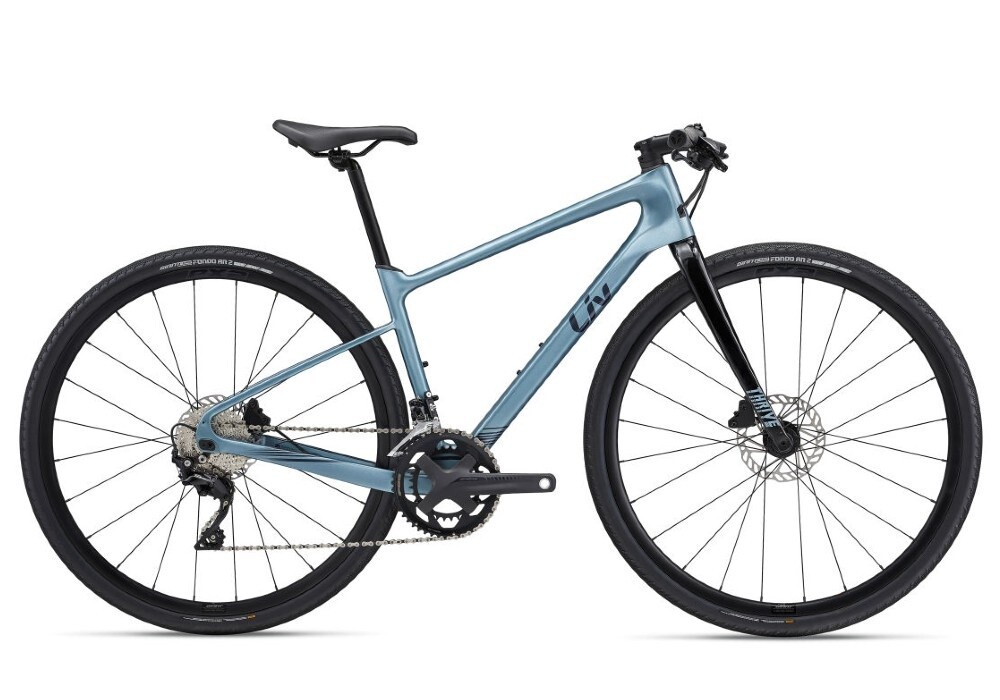

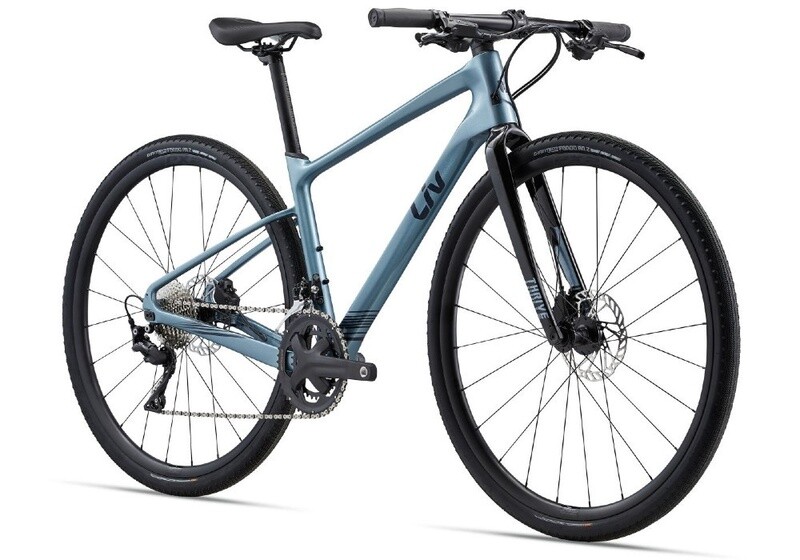

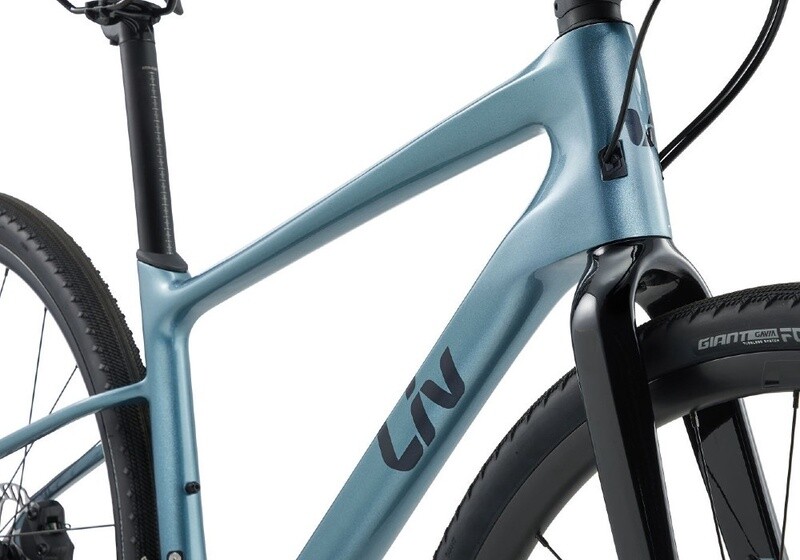

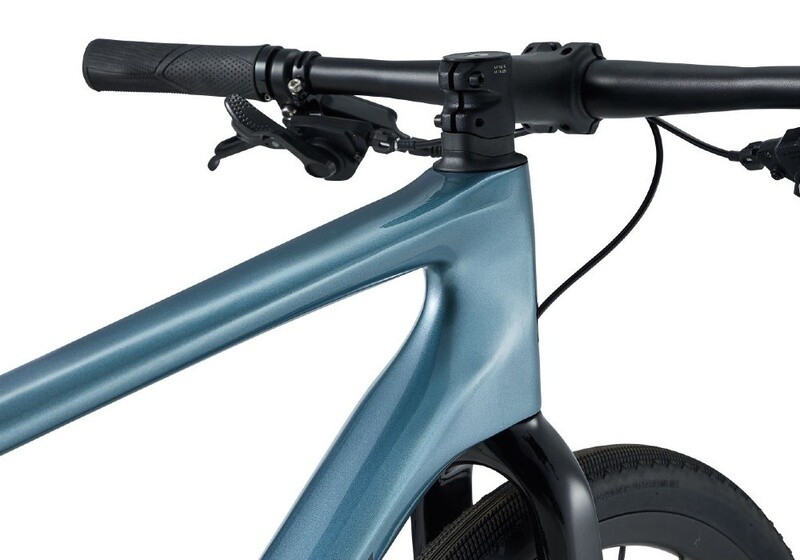

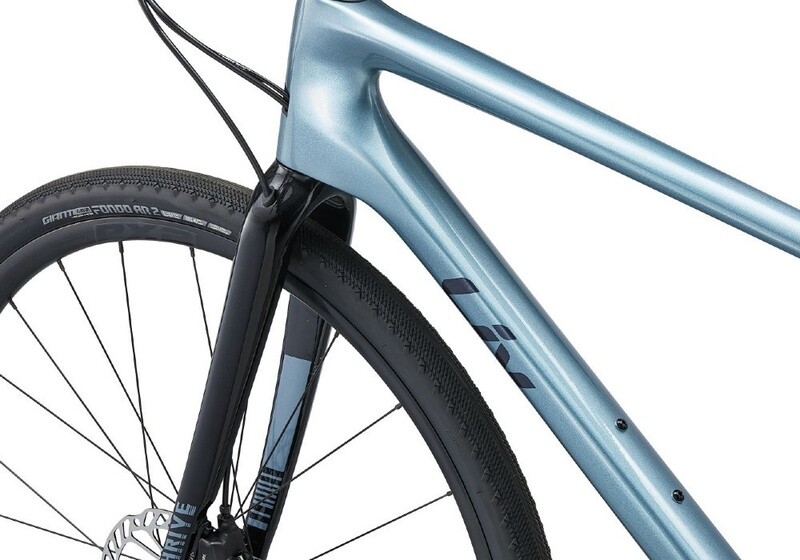

The Thrive Advanced features a lightweight and nimble Advanced-grade composite frame and fork, balanced geometry, and flat handlebar for ultimate efficiency and control.

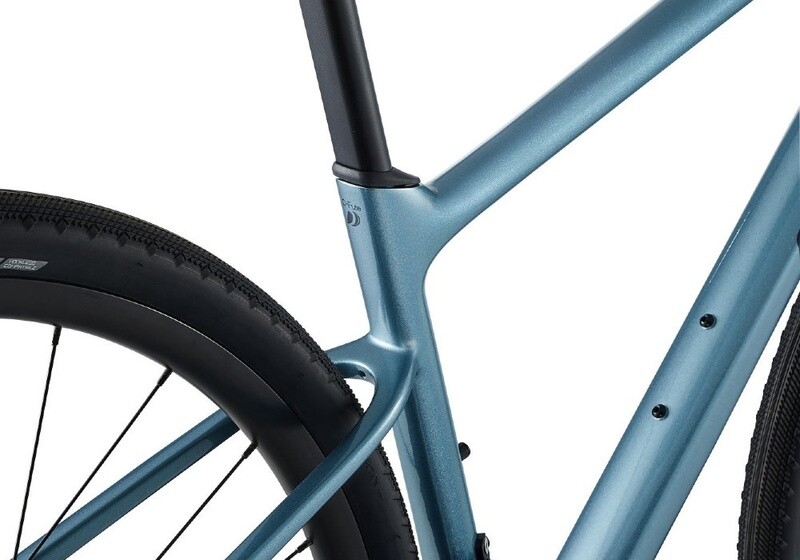

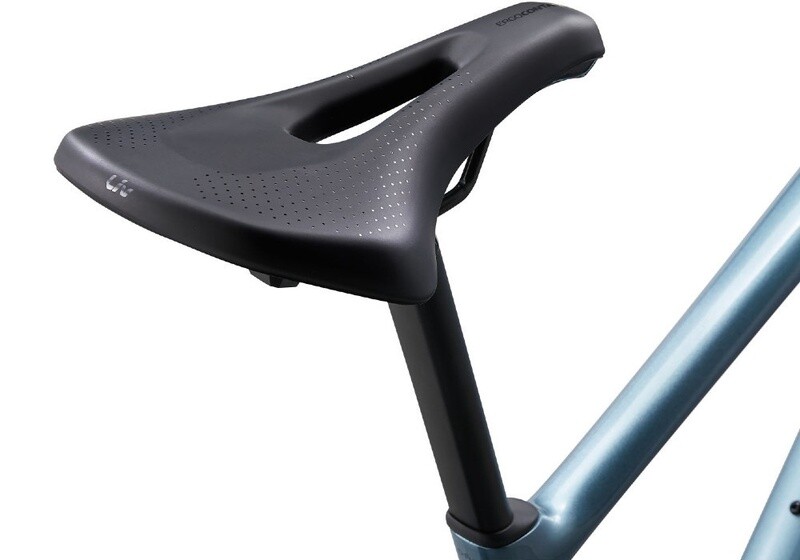

Take on longer rides with ease and comfort with pressure-relieving grips and saddle, as well as a shock-absorbing D-Fuse seatpost that minimises road vibrations and bumps – ensuring a smooth and controlled ride from start to finish.
The carbon flip chip - dropout allows you to easily adjust the geometry and tyre clearance, giving you more versatility and customisation options to suit your riding style and terrain. Switch to the short position for quicker handling and a maximum tyre clearance of 40c, or choose the long position for stability at speed and increased tyre clearance up to 45c.
XS | S | M | ||
---|---|---|---|---|
SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
A | SEAT TUBE LENGTH (mm) | 350 | 400 | 450 |
B | SEAT TUBE ANGLE | 74.5° | 74.4° | 74.0° | 73.9° | 73.5° | 73.4° |
C | TOP TUBE LENGTH (mm) | 525 | 540 | 560 |
D | HEAD TUBE LENGTH (mm) | 110 | 135 | 165 |
E | HEAD TUBE ANGLE | 70.5° | 70.4° | 71.0° | 70.9° | 71.5° | 71.4° |
F | FORK RAKE (mm) | 50 | 50 | 50 |
G | TRAIL (mm) | 72.8 | 75.3 | 69.5 | 71.9 | 66.2 | 68.6 |
H | WHEELBASE (mm) | 1013.5 | 1023.3 | 1020 | 1030 | 1031 | 1041 |
I | CHAIN STAY LENGTH (mm) | 425 | 435 | 425 | 435 | 425 | 435 |
J | BOTTOM BRACKET DROP (mm) | 70 | 71 | 70 | 71 | 70 | 71 |
K | STACK (mm) | 534.1 | 534.7 | 559.6 | 560.2 | 589.9 | 590.5 |
L | REACH (mm) | 376.9 | 375.9 | 379.5 | 378.5 | 385.3 | 384.2 |
M | STAND OVER HEIGHT (mm) | 680 | 710 | 745 |
N | HANDLEBAR WIDTH (mm) | 600 | 600 | 640 |
O | STEM LENGTH (mm) | 80 | 80 | 90 |
P | CRANK LENGTH (mm) | 165 | 170 | 170 |
Q | WHEEL SIZE | 700C | 700C | 700C |
