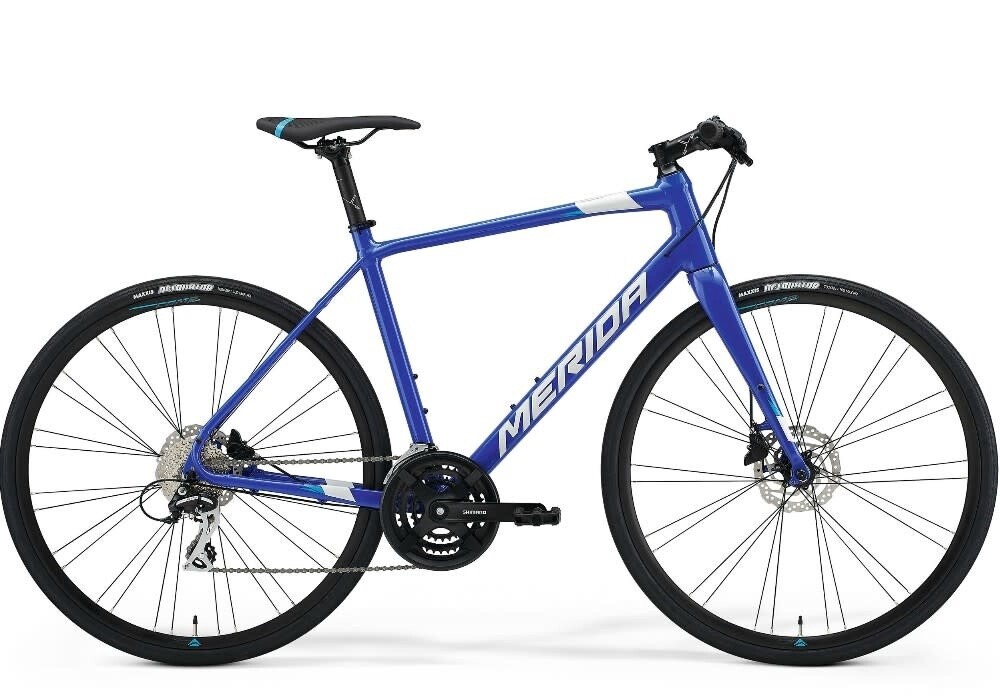

Lightweight aluminium performance hybrid with full carbon tapered fork, Shimano 3 x 8 drivetrain and hydraulic disc brakes.
Fast and lightweight, the Speeder shares some of its genes with road bikes. The frame geometry of the Speeder is sporty, but with a more upright and comfortable position which is noticeably different to conventional road bikes with drop bars making it a great option for riders wanting road bike style and efficiency with added comfort.
Merida use the same triple butted 6066 series aluminium as their aluminium road bikes which is hydroformed to tune the frame for a comfortable responsive ride. The Speeder uses a full carbon fork with a tapered steerer which gives very precise steering and a smooth ride. The upright position, flat bars and powerful hydraulic disc brakes bikes are ideal for comuting giving you greater control and field of vision when riding through traffic. The frame can accommodate wider tyres making it more versatile - up to 35mm (32mm with mudguards).
Frame |
Lite II - 6066 triple butted hydroformed aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle. Mounts for rack, mudguards and kickstand. Max Tyre clearance 700 x 35c (700 x 32c with mudguard) |
Fork |
Speeder CF2; Full carbon, tapered steerer, 100 x 9mm QR standard, Maximum tyre clearance 700 x 35c (700 x 32c with mudguard) |
Gears | 24 |
Shifters |
Shimano ST-EF505-8 EZ-fire |
Front Derailleur | Shimano TY710 |
Rear Derailleur | Shimano Acera-X |
Bottom Bracket | FSA TH-7420ST Cartridge Bearing |
Chain | Sunrace CN-M84 |
Chainset | Shimano TY301; 48-38-28 teeth chainwheel with 170 mm all sizes length crank |
Cassette | Sunrace CSM668; 11-32 teeth; 8 speed |
Brake Lever | Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed) |
Front Brake | Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor |
Rear Brake | Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor |
Grip |
Merida Comp EC |
Handlebar | Merida Comp TK; aluminium; 600mm wide; Flat |
Stem | Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 80 mm-XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
Headset | Merida M2341 Neck |
Pedal | VP Components VPE-891 |
Saddle | Merida Comp SL; V-mount |
Seatpost | Merida Comp CC; aluminium; 30.9mm diameter; 12mm lay back |
Wheel Size | 700C |
Rims | Merida Comp SL; 17mm inner rim width; 22mm profile; Material: aluminium |
Spokes | Black Stainless |
Front Hub | Joytech D471SBT-SC-CL; 100x9mm; 28 spokes; centerlock; Quick Release |
Rear Hub | Shimano TX505; 135x9mm; 32 spokes; centerlock; Quick Release |
Front Tyre | Maxxis Detonator; 700 x 32C; wire bead |
Rear Tyre | Maxxis Detonator; 700 x 32C; wire bead |
