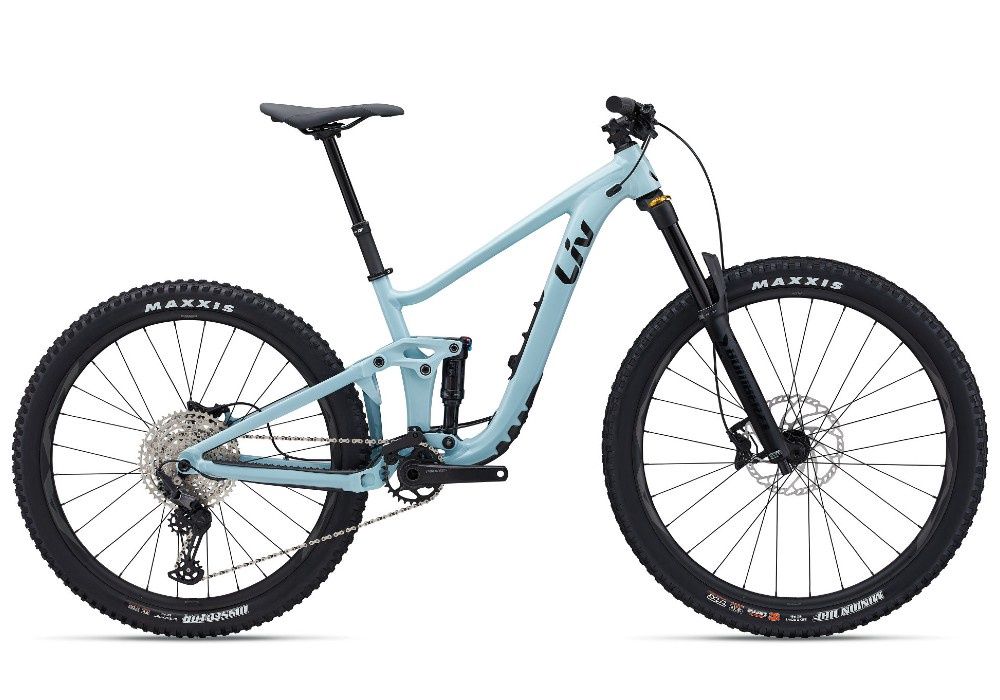

Liv Intrigue LT 1

Whether you're looking ahead to park days, staring down a rocky line you’re determined to conquer, or preparing for your first enduro race – the all-new Intrigue LT equips you with the versatility of adjustable frame geometry, the durability of ALUXX SL-grade aluminium and the ultra-smooth performance of Maestro suspension so you can say “YES!” to it all.

Key Performance Factors

Performance Long Travel Trail

Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.

Adjustable Frame Geometry

Equipped with the new flip chip – Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble.

Specification

• Sizes
  XS, S: MX only, M, L: 29" F&R out of the box, MX compatible
• Colours
  Soap Suds
• Frame
  ALUXX SL-grade aluminium front and rear triangles, 150mm Maestro Suspension, 3 position flip chip, integrated down tube storage
• Fork
  Marzocchi Bomber Z1, 160mm, Rail damper, Boost 15x110 Kabolt, tapered, 44mm offset
• Shock
  Fox Float Performance 185x55, custom tuned for Liv
• Handlebar
  Giant Contact TR35, alloy, 35mm, 20mm rise
• Stem
  Giant Contact SL, 35mm
• Seatpost
  Giant Contact Switch dropper, remote XS: 100mm travel/ 30.9 x 345mm S: 125mm travel / 30.9 x 395mm M&L: 150mm travel / 30.9 x 440mm
• Saddle
  Liv Sylvia
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Deore, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano Deore, Shadow +
• Brakes
  Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers
  Shimano BL-MT401
• Cassette
  Shimano Deore M6100, 10x51
• Chain
  KMC X12
• Crankset
  Praxis Cadet, steel chain ring 30t, 52mm chainline
• Bottom Bracket
  Praxis, press fit
• Rims
  Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
• Hubs
  alloy
• Spokes
  Stainless steel
• Tyres
  [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
• Extras
  MRP chain guide, 3M tailgate protector, factory tubeless set up, integrated down tube storage bag
• Max Tyre Clearance
  2.5"
• Max Chainring Size
  32t

Geometry
