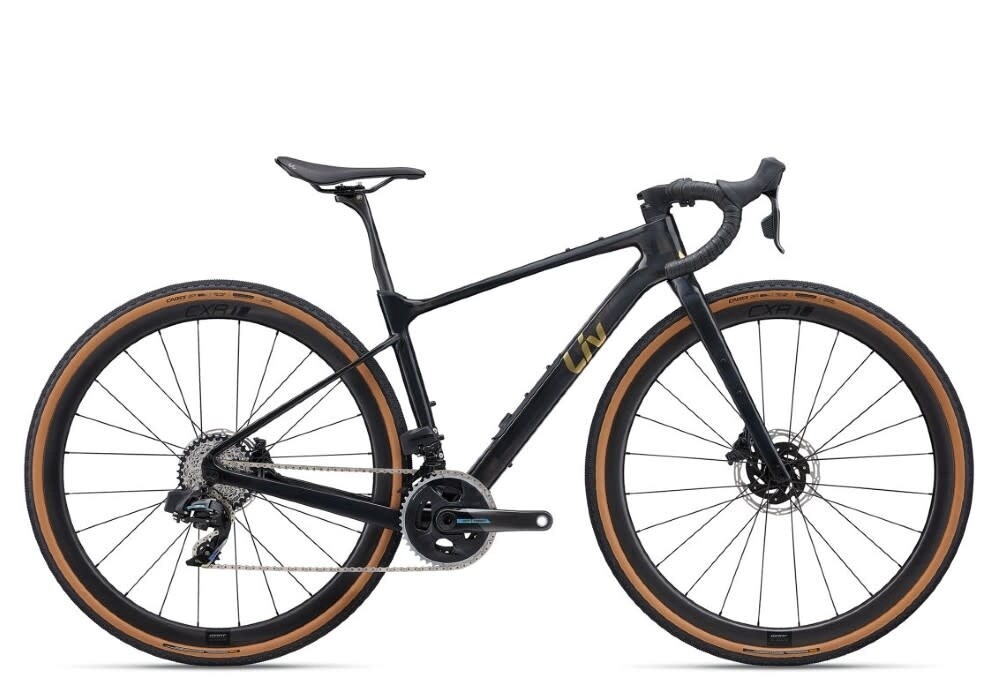

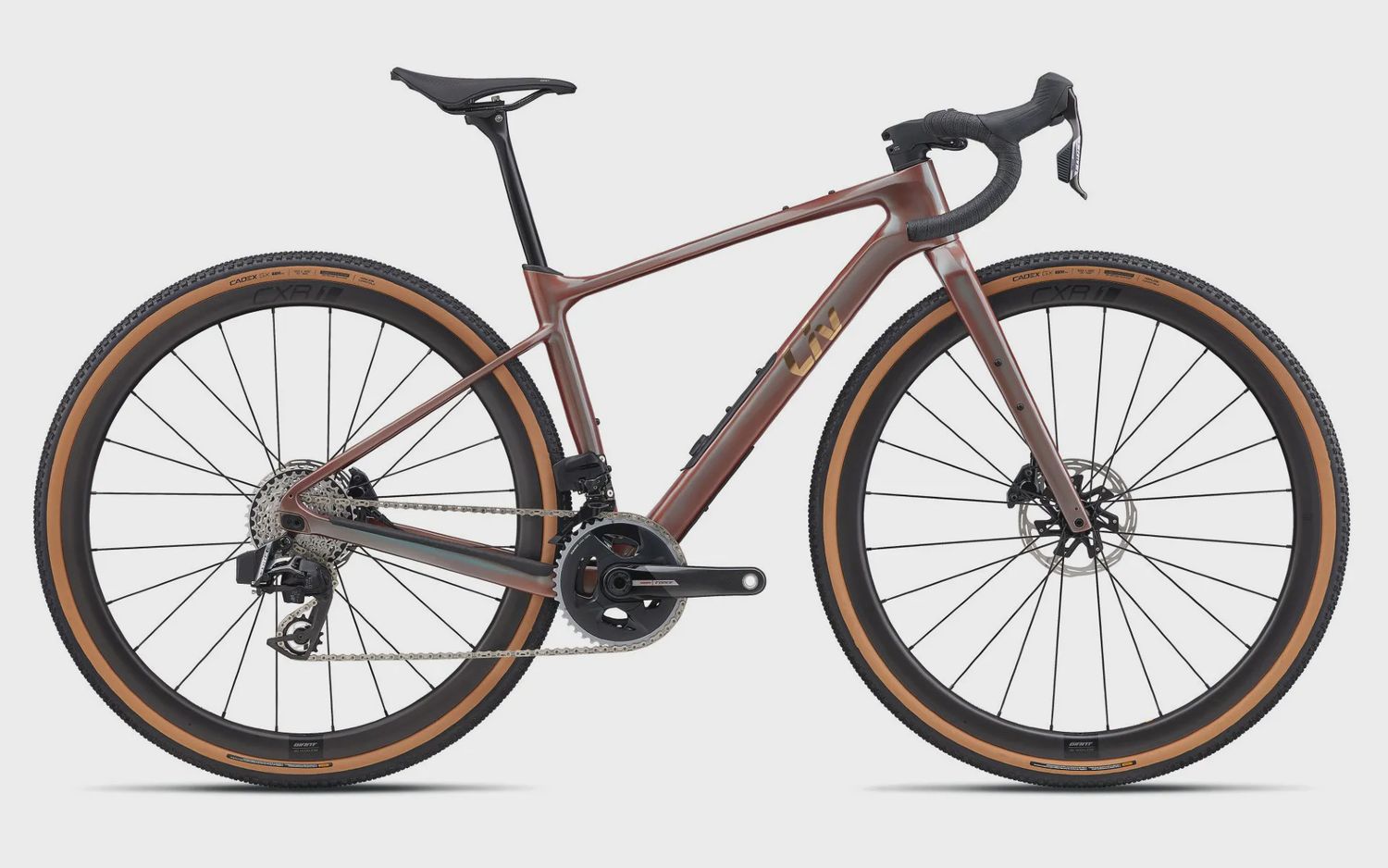

Liv Devote Advanced Pro

Ultralight Agility

An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control

The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The Contact SLR D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tyre clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tyres and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

Specification

• Sizes
  XS, S, M
• Colours
  Carbon/Gold Chrome
• Frame
  Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing
• Fork
  Advanced SL-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc
• Shock
  N/A
• Handlebar
  Giant Contact SLR XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, composite XS: 400mm, S: 400mm, M: 420mm
• Grips
  Liv All Condition
• Stem
  Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm
• Seatpost
  Giant Contact SLR D-Fuse, composite, -5/+15mm offset
• Saddle
  Liv Approach SL
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM Force eTap AXS, 2x12
• Front Derailleur
  SRAM Force eTap AXS Wide
• Rear Derailleur
  SRAM Force eTap AXS
• Brakes
  SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Force eTap AXS hydraulic
• Cassette
  SRAM Force, 12-speed, 10x36
• Chain
  SRAM Force D2
• Crankset
  SRAM Force D2 DUB, 30/43 XS: 165mm, S: 170mm, M: 172.5mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs
  [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
• Spokes
  Sapim CX-Ray
• Tyres
  CADEX AR, 700x40c, tubeless
• Extras
  53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position, factory tubeless set up, ISC clamp, integrated down tube storage bag
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
