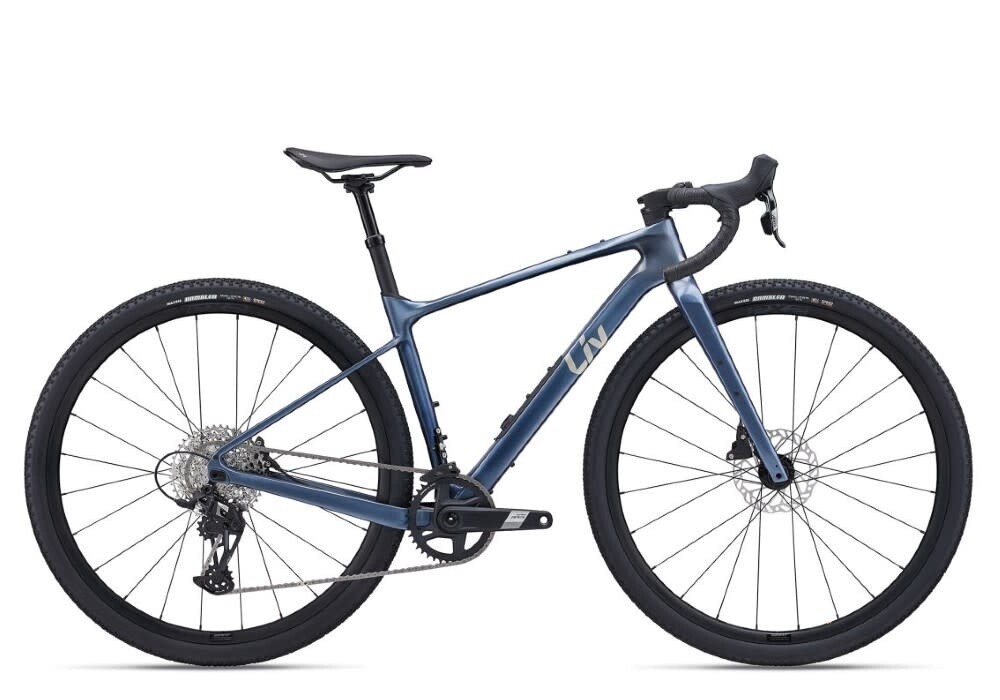

Liv Devote Advanced 1

Ultralight Agility

An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control

The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tyre clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tyres and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

Specification

• Sizes
  XS, S, M, L
• Colours
  Ice Age
• Frame
  Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc
• Shock
  N/A
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm
• Grips
  Liv All Condition
• Stem
  Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm
• Seatpost
  Post Moderne, dropper, 30mm suspension XS: 75mm, S: 75mm, M: 75mm, L: 100mm
• Saddle
  Liv Approach
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM Apex, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM Apex XPLR
• Brakes
  SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Apex hydraulic, left lever dropper switch
• Cassette
  SRAM PG-1231 D1 XPLR, 12-speed, 11x44
• Chain
  SRAM Apex 12SCN-APX-D1
• Crankset
  SRAM Apex 1 Wide, 40t XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant P-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tyres
  Maxxis Rambler, 700x45c, tubeless
• Extras
  Giant 1x chain guide, factory tubeless set up, 53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position, ISC clamp, integrated down tube storage bag
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
