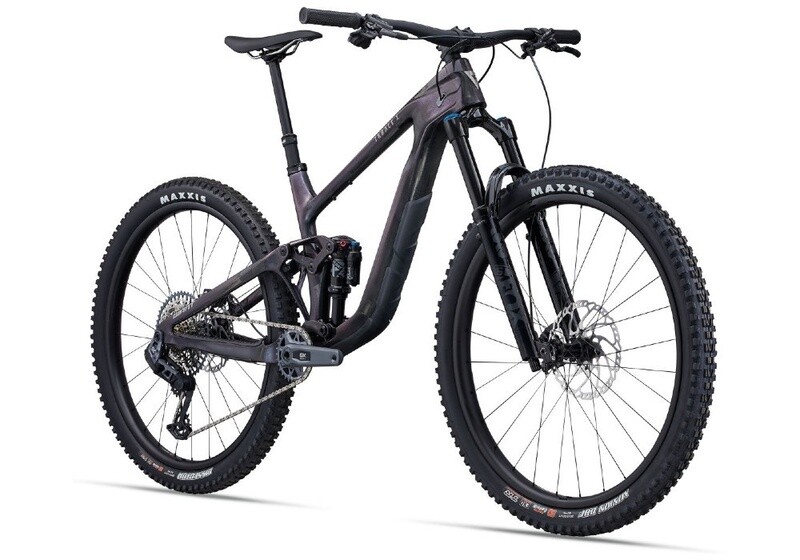

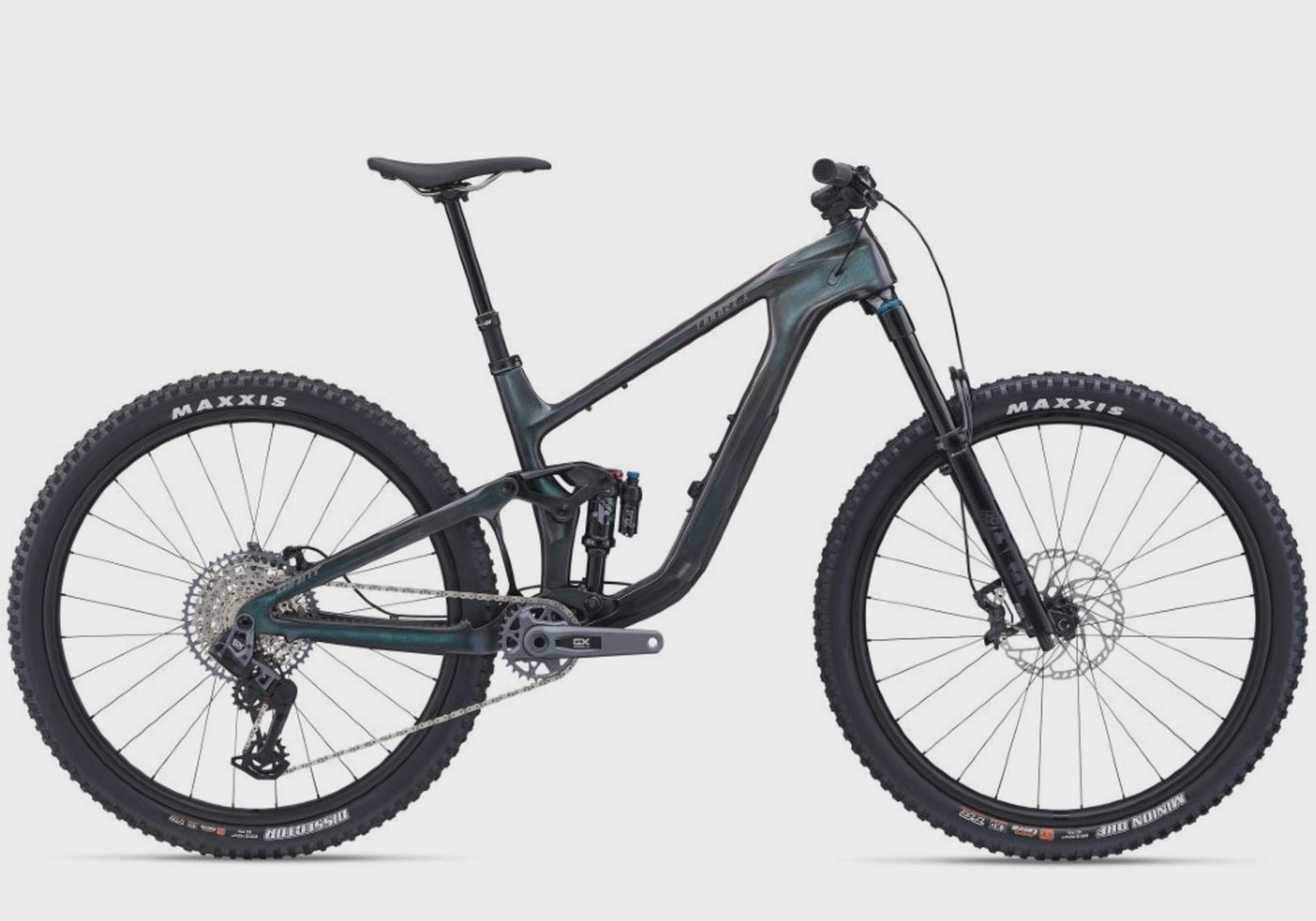

Giant Trance X Advanced 1

More Travel

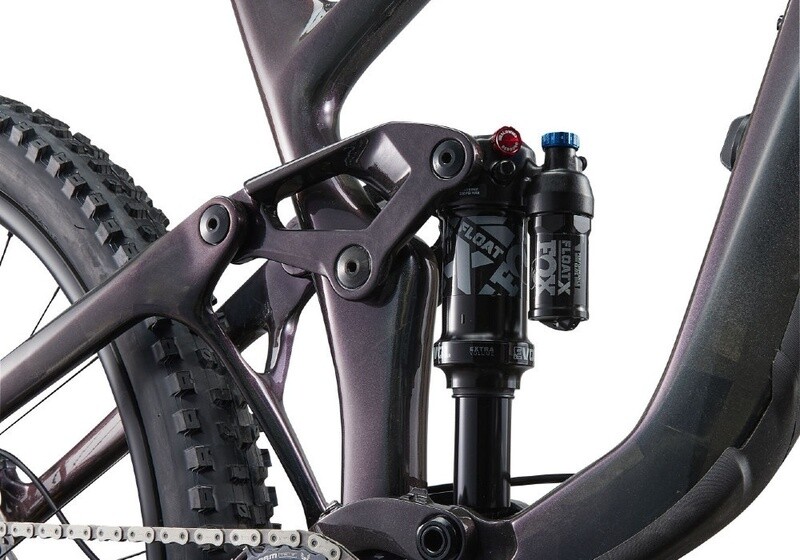

New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry

A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimises stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favour this “mullet” setup for riding steep, technical terrain.

Specification

• Sizes
  S, M, L, XL
• Colours
  Gloss Arctic Light/Chrome

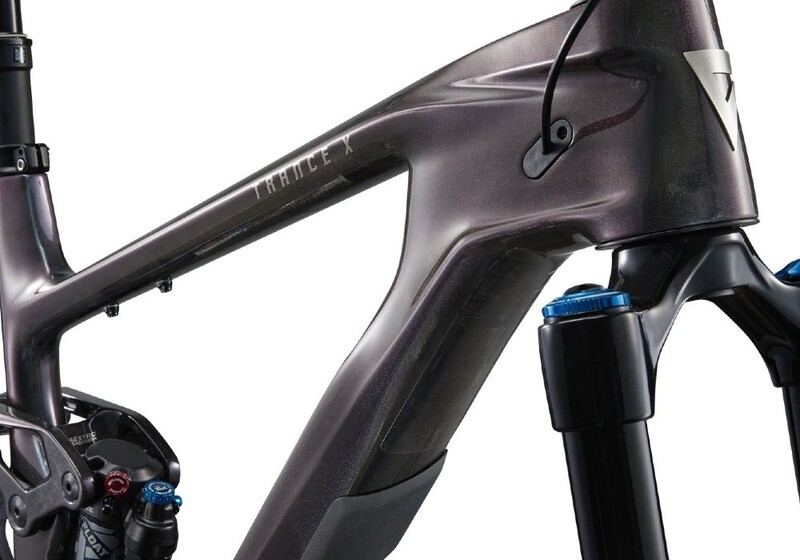

• Frame
  Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Fork
  Fox 36 Performance Elite, GRIP2 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
• Shock
  Fox Float X Performance Elite, 185/52.5, custom tuned for Giant
• Handlebar
  Giant Contact SLR TR35, 780x35mm, 20mm rise
• Grips
  Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost
  Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle
  Giant Romero SL
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM AXS, 1x12
• Front Derailleur
  N/A

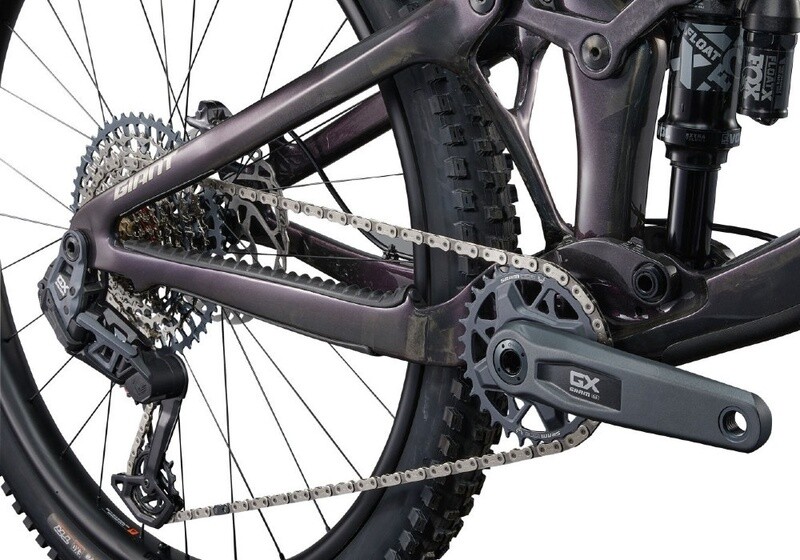

• Rear Derailleur
  SRAM GX Eagle Transmission AXS
• Brakes
  Shimano Deore XT BR-MT8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers
  Shimano Deore XT BL-M8100
• Cassette
  SRAM GX-1275, 10x52
• Chain
  SRAM GX Eagle
• Crankset
  SRAM GX, 30t, 55mm chainline
• Bottom Bracket
  SRAM DUB, Press Fit
• Rims
  Giant TRX, 29" hookless carbon wheelsystem, 30mm IW, 40mm OW, 22mm H, 72t POE, 28 SP spokes, DBL technology, XD driver body
• Hubs
  [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body
• Spokes
  Sapim, 28, straight pull, DBL Technology
• Tyres
  [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
• Extras
  Factory tubeless set up, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
