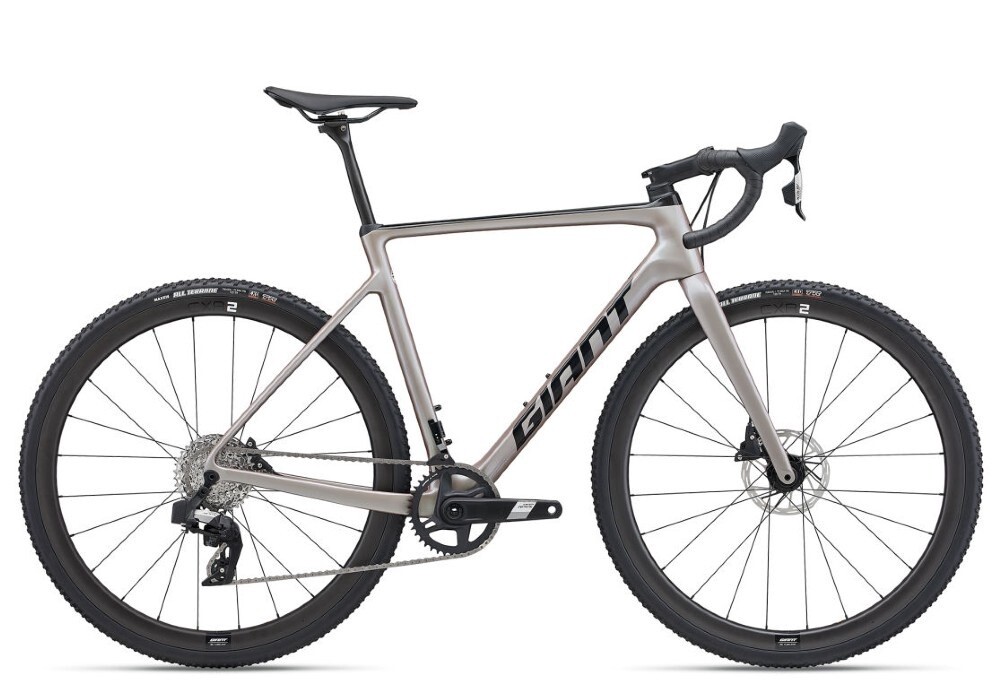

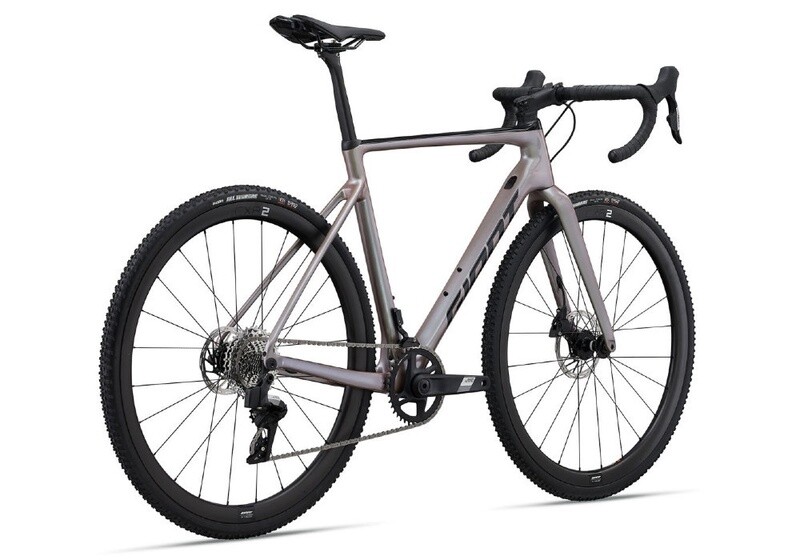

Giant TCX Advanced Pro 1

Elite level efficiency

Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedalling stiffness.

Total control

Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.

Smooth ride quality

D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.

Specification

• Sizes
  S, M, M/L, L
• Colours
  Gloss Shell White
• Frame
  Advanced-grade composite, 12mm thru-axle, disc
• Fork
  Advanced-grade composite, full-composite OverDrive 2 steerer, disc
• Shock
  N/A
• Handlebar
  Giant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact SL S:80mm, M:90mm, M/L:100mm, L:100mm
• Seatpost
  Giant D-Fuse SLR, composite, -5/+15mm offset
• Saddle
  Giant Approach SL
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Sram Apex AXS 1X12
• Front Derailleur
  N/A
• Rear Derailleur
  Sram Apex AXS 1X12
• Brakes
  Sram Apex AXS 1X12 HRD, SRAM PaceLine rotors [F]160mm, [R]140mm
• Brake Levers
  SRAM Apex AXS hydraulic
• Cassette
  SRAM Rival, 12-speed, 10x36
• Chain
  SRAM Apex D1, 12-speed, CN-APX-D1
• Crankset
  SRAM Apex D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs
  [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
• Spokes
  Sapim Sprint
• Tyres
  Maxxis All-Terrene, 700x33c, tubeless
• Extras
  Giant 1x chainguide, factory tubeless set up, 45mm max tyre size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
