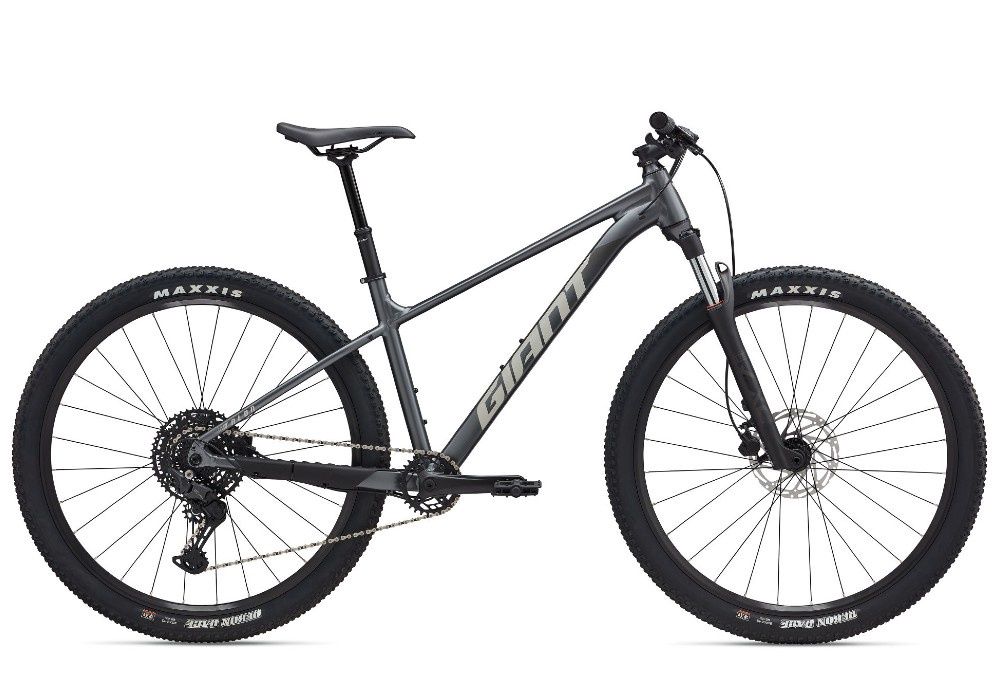

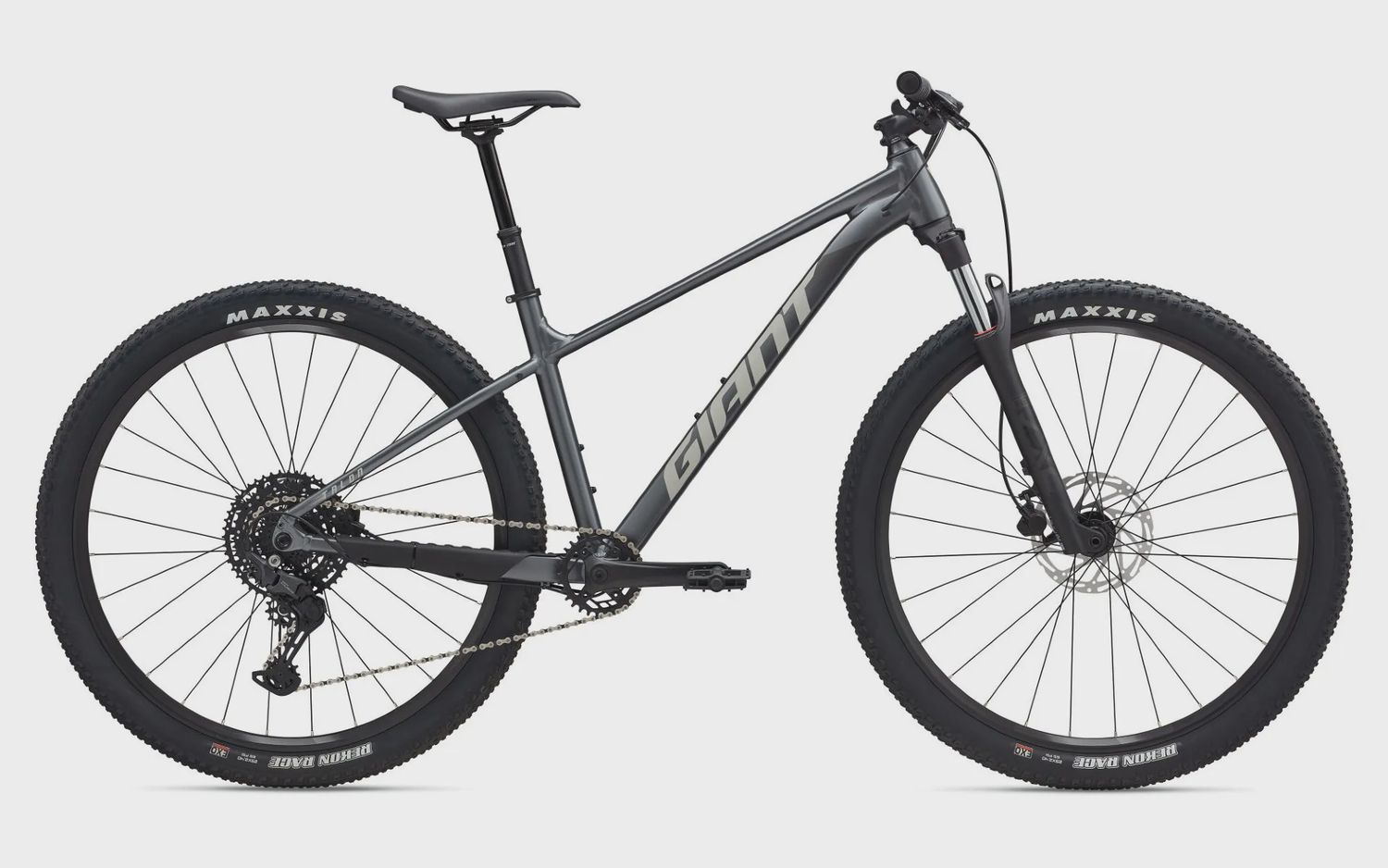

Giant Talon 1 (2024)

PUSH THE PACE ON CLIMBS, LET LOOSE ON DESCENTS. THIS ALUMINIUM HARDTAIL WITH A PLUSH SUSPENSION FORK DELIVERS BALANCED, CONFIDENT HANDLING ON THE TRAIL.

KEY PERFORMANCE FACTORS

Proven alloy performance

ALUXX aluminium frameset is hand-built in-house by the world leader in aluminium engineering.

Balance and stability

Frame geometry is designed to optimise the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.

Specification

• Sizes
  27.5: XS,S,M 29: S,M,L,XL,XXL
• Colours
  Gloss Cold Iron/Bay Leaf
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SXC32-2 RL 29, air spring, hydraulic lock out, QR, alloy steerer XS & S 27.5 80mm travel All other sizes 100mm travel
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS 27.5 730mm All other sizes 780mm
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree
• Seatpost
  Giant Sport, 30.9mm XS 27.5 300mm All other sizes 375mm
• Saddle
  Giant custom
• Pedals
  MTB caged
• Shifters
  Shimano CUES SL-6000, 1x10
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano CUES RD-U6000
• Brakes
  Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Brake Levers
  Tektro HDC M275
• Cassette
  Shimano CUES, CS-LG300, 11x48
• Chain
  Shimano CUES LG500
• Crankset
  ProWheel Charm, 30t (27.5), 32t (29)
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  alloy, sealed bearing
• Spokes
  Stainless steel, 14g
• Tyres
  Kenda Booster 27.5 or 29x2.4", wire bead
• Extras
  2.4" max tyre size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
