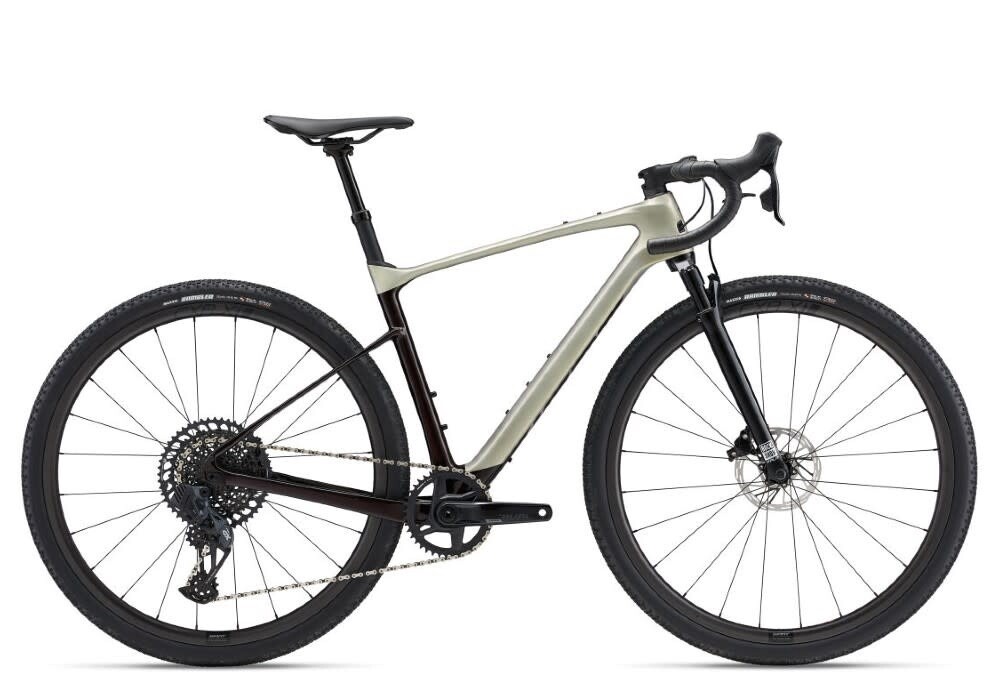

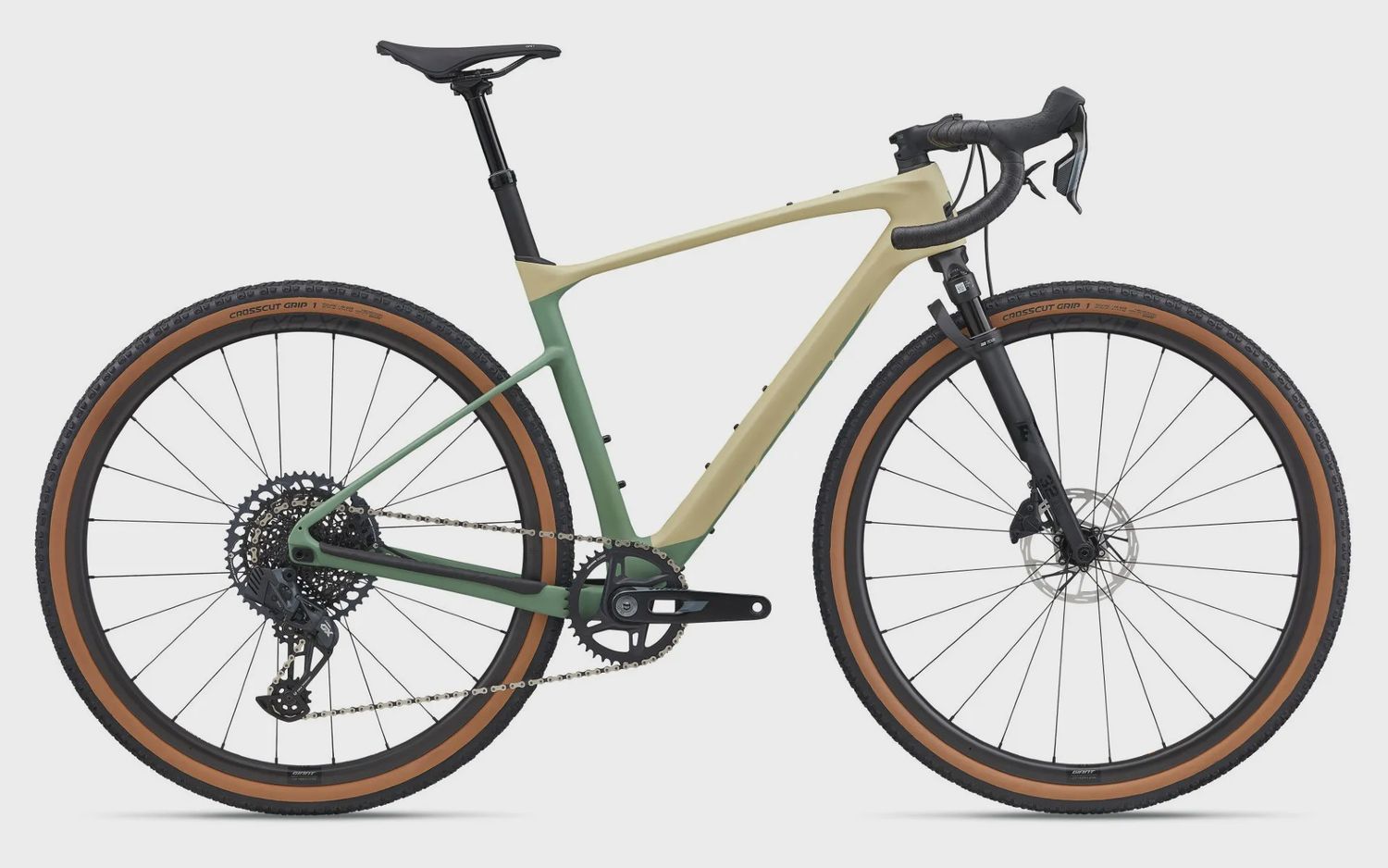

Giant Revolt X Advanced Pro 1

Smooth control

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added comfort.

Specification

• Sizes
  S, M, M/L, L, XL
• Colours
  Gloss Golden Haze/Cordovan
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle
• Shock
  N/A
• Handlebar
  Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
• Seatpost
  Post Moderne, dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
• Saddle
  Giant Approach SL
• Pedals
  N/A
• Shifters
  SRAM Rival eTap AXS, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM GX Eagle AXS
• Brakes
  SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Rival eTap AXS hydraulic
• Cassette
  SRAM XG-1275, 12-speed, 10x52
• Chain
  SRAM GX Eagle
• Crankset
  SRAM Rival D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
• Hubs
  [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  Sapim Laser
• Tyres
  Maxxis Rambler, 700x45c, tubeless
• Extras
  Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
