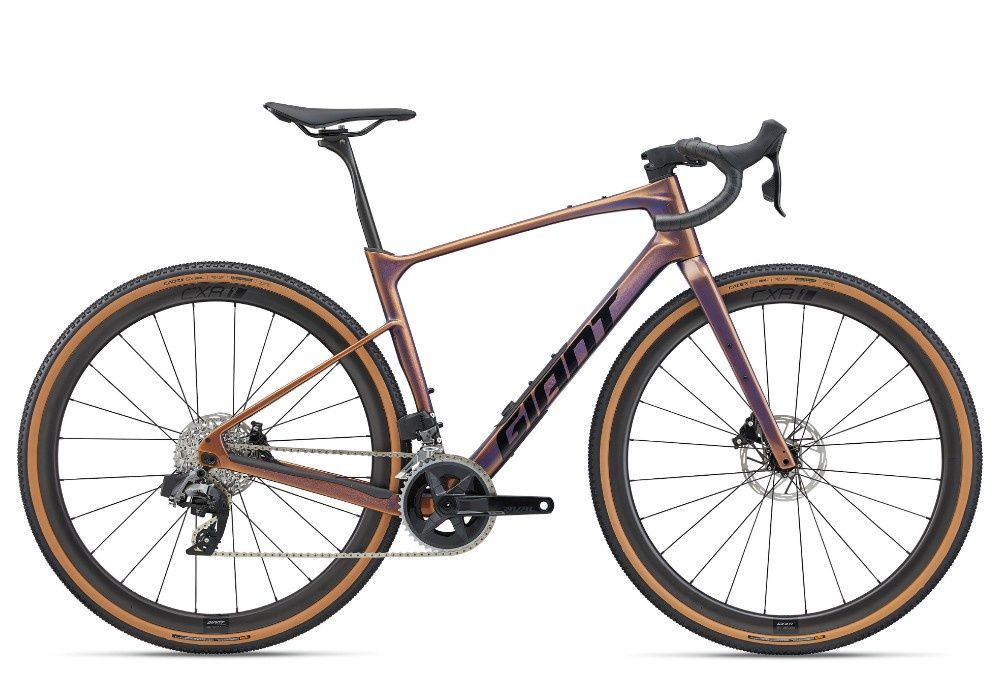

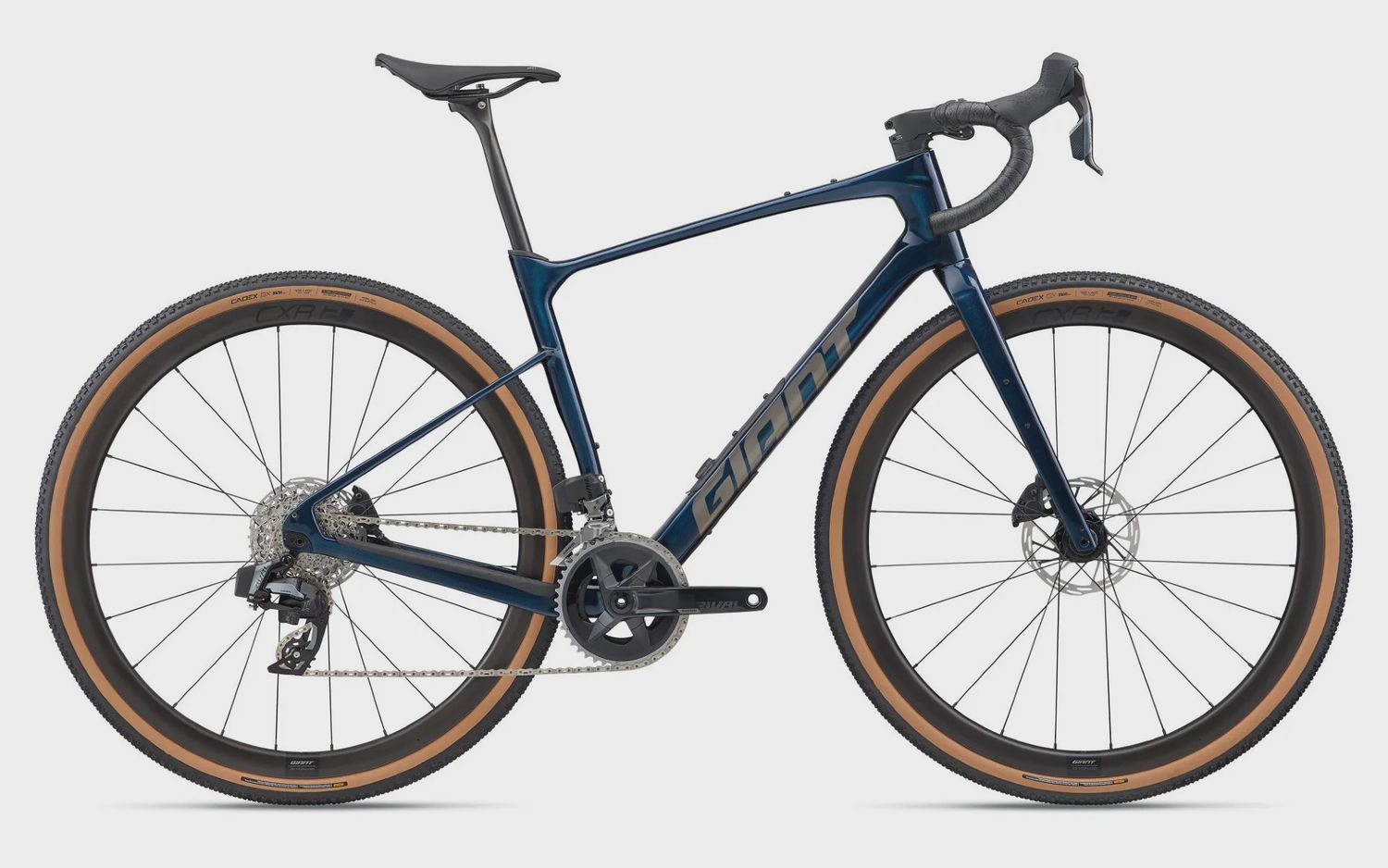

Giant Revolt Advanced Pro 1

FAST AND VERSATILE

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Specification

• Sizes
  S, M, M/L, L, XL
• Colours
  Gloss Meteor Storm
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork
  Advanced SL-grade composite
• Handlebar
  Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse SLR, composite
• Saddle
  Giant Grit SL
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  SRAM Rival eTap AXS, 2x12
• Front Derailleur
  SRAM Rival eTap AXS
• Rear Derailleur
  SRAM Rival eTap AXS
• Brakes
  SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Rival eTap AXS hydraulic
• Cassette
  SRAM Rival, 12-speed, 10x36
• Chain
  SRAM Rival D1
• Crankset
  SRAM Rival D1 DUB, 30/43
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs
  [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  Sapim CX-Ray
• Tyres
  CADEX GX, 700x40c, tubeless
• Extras
  Tubeless prepared, in-frame storage bag
• Max Tyre Clearance
  53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
