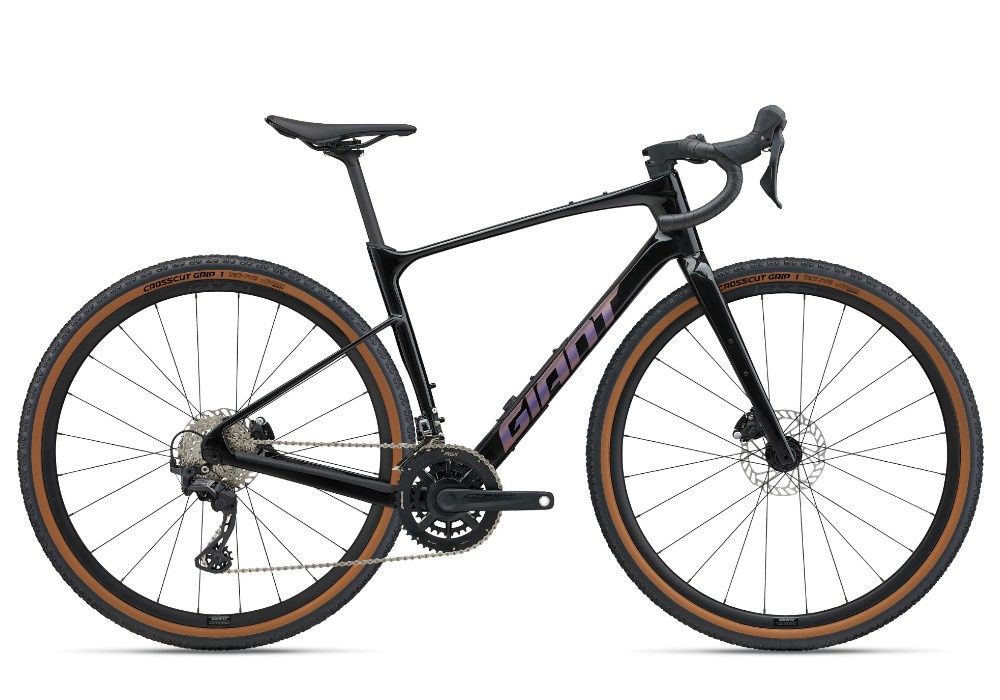

Giant Revolt Advanced 2

FAST AND VERSATILE

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Specification

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Gloss Carbon
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse, composite, 14mm offset
• Saddle
  Giant Grit
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano GRX RX-610, 2x12
• Front Derailleur
  Shimano GRX RX-820
• Rear Derailleur
  Shimano GRX RX-820
• Brakes
  Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano GRX RX-610 hydraulic
• Cassette
  Shimano CS-HG710, 12-speed, 11x36
• Chain
  KMC X12L-1
• Crankset
  FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  FSA BB-AL86, press fit
• Rims
  Giant P-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tyres
  Giant Crosscut Grip TR, 700x40c, tubeless
• Extras
  Tubeless prepared, in-frame storage bag
• Max Tyre Clearance
  53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
