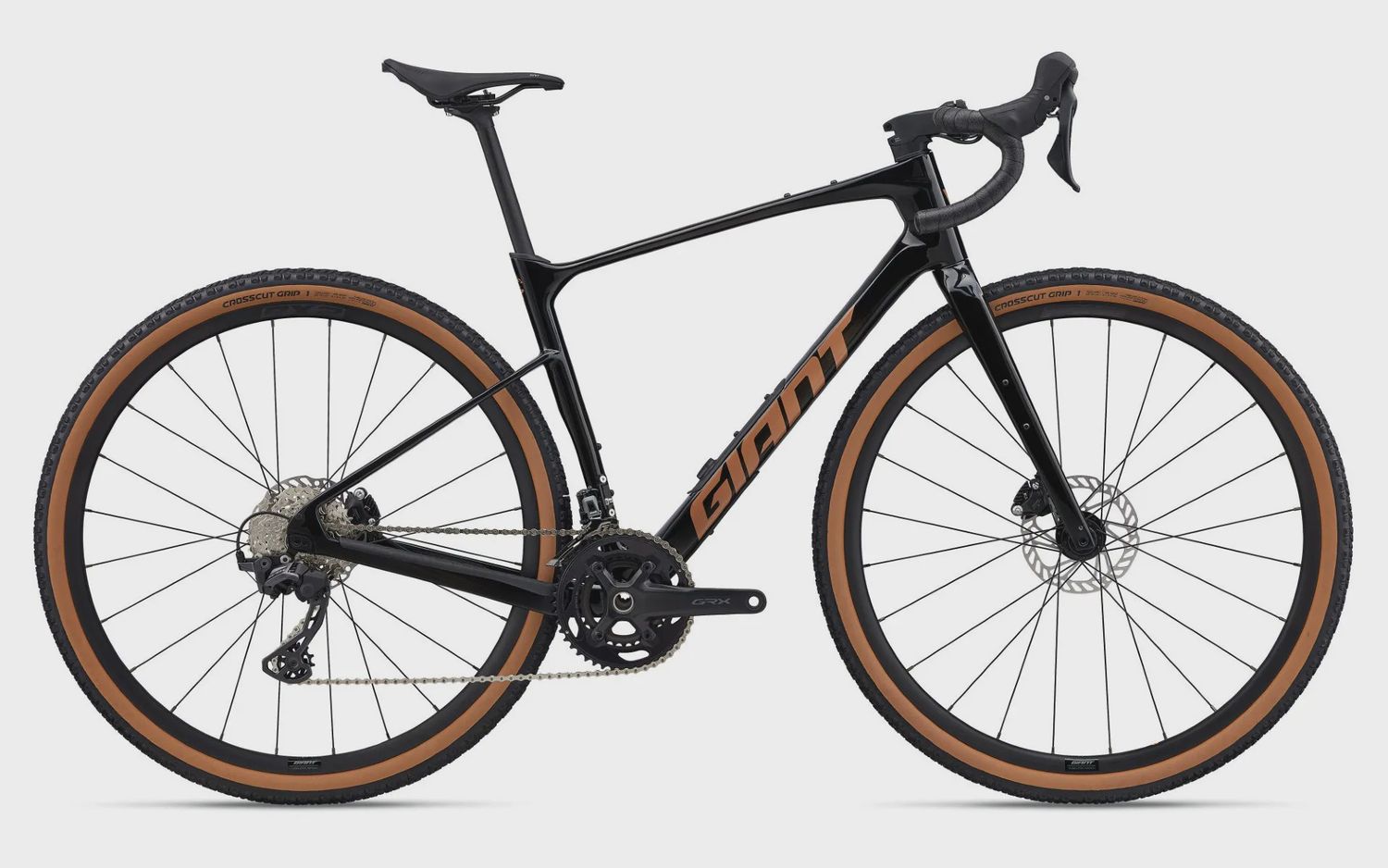

Giant Revolt Advanced 2
+5
+4
+3
+2

Giant Revolt Advanced 2

£2 499.00
NEW
Price incl. VAT (20%) £416.50
Rough roads, gravel or dirt. However you choose to roll, this bike does it all.
Colour:Carbon
Carbon: Pre-order
Size
Pre-order
Pre-order
Pre-order
Pre-order
Pre-order
Pre-order
Available for Pre-Order, contact for delivery date
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Have questions?
Share this product with your friends
ShareSharePin it
Giant Revolt Advanced 2
Product Details
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specification
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Carbon Smoke
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Stem
    Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano GRX RX-610, 2x12
  • Front Derailleur
    Shimano GRX RX-820
  • Rear Derailleur
    Shimano GRX RX-820
  • Brakes
    Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-610 hydraulic
  • Cassette
    Shimano CS-HG710, 12-speed, 11x36
  • Chain
    KMC X12L-1
  • Crankset
    Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 , alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Giant Crosscut Grip, 700x45c, tubeless
  • Extras
    Tubeless prepared, in-frame storage bag
  • Max Tyre Clearance
    53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
Geometry
    XS S M ML L XL
  SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (MM) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (MM) 540 550 560 575 585 600
D Head Tube Length (MM) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (MM) 50 50 50 50 50 50
G Trail (MM) 78.0 | 82.0 72.0 | 75.0 68.0 | 72.0 65.0 | 68.0 65.0 | 68.0 65.0 | 68.0
H Wheelbase (MM) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (MM) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (MM) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (MM) 556 570 586 602 616 630
L Reach (MM) 381 381 387 391 397 407
M Stand Over Height (MM) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
N Handlebar Width (MM) 420 420 440 440 460 460
O Stem Length (MM) 50 60 70 80 80 90
P Crank Length (MM) 170 170 172 172 175 175
