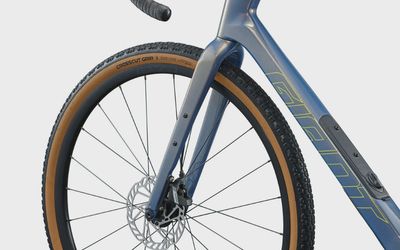

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
S | M | ML | L | XL | ||
---|---|---|---|---|---|---|
SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
A | Seat Tube Length (mm) | 450 | 470 | 490 | 510 | 530 |
B | Seat Tube Angle | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
C | Top Tube Length (mm) | 550 | 560 | 575 | 585 | 600 |
D | Head Tube Length (mm) | 135 | 150 | 165 | 180 | 195 |
E | Head Tube Angle | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
F | Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 |
G | Trail (mm) | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
H | Wheelbase (mm) | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
I | Chain Stay Length (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
J | Bottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
K | Stack (mm) | 570 | 586 | 602 | 616 | 630 |
L | Reach (mm) | 381 | 387 | 391 | 397 | 407 |
M | Stand Over Height (mm) | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
N | Handlebar Width (mm) | 420 | 440 | 440 | 460 | 460 |
O | Stem Length (mm) | 60 | 70 | 80 | 80 | 90 |
P | Crank Length (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
Q | Wheel Size | 700c | 700c | 700c | 700c | 700c |
