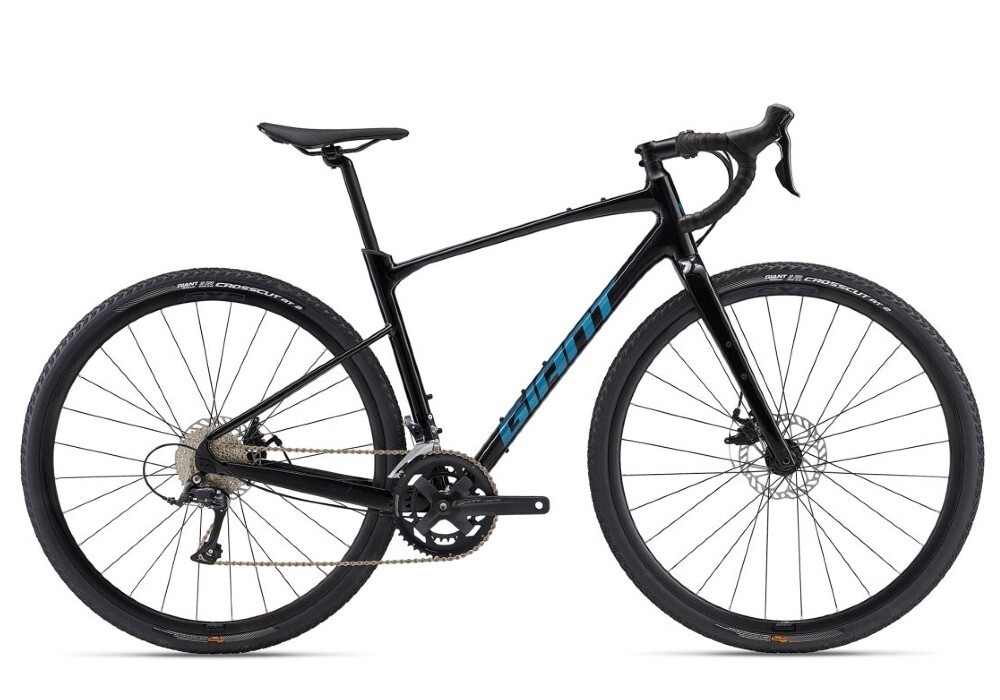

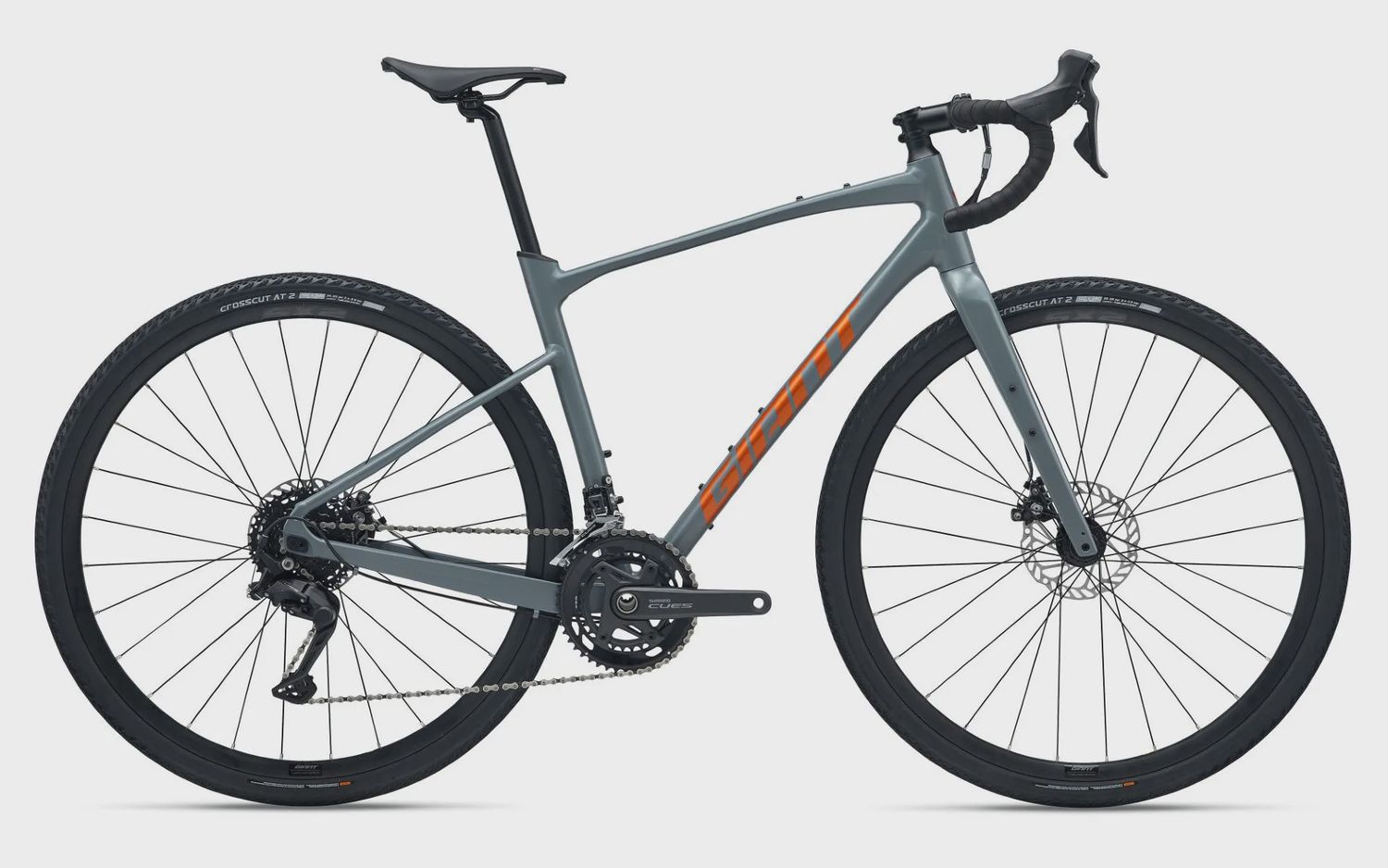

Giant Revolt 2

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specification

• Sizes
  S, M, M/L, L, XL
• Colours
  Gloss Metallic Black/Sea Sparkle & Gloss Bay Leaf/Panther
• Frame
  ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock
  N/A
• Handlebar
  Giant Contact XR Ergo-Control, 31.8mm
• Grips
  cork tape with gel
• Stem
  Giant Sport, 8-degree
• Seatpost
  Giant D-Fuse, alloy, 14mm offset
• Saddle
  Giant Approach
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Sora, 2x9
• Front Derailleur
  Shimano Sora
• Rear Derailleur
  Shimano Sora, long cage
• Brakes
  Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano Sora
• Cassette
  Shimano HG400, 11x34
• Chain
  KMC X9 with Missing Link
• Crankset
  FSA Vero Pro, 32/48
• Bottom Bracket
  cartridge
• Rims
  Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Stainless steel
• Tyres
  Giant CrossCut AT 2, 700x38c, tubeless
• Extras
  Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
• Max Chainring Size
  SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
