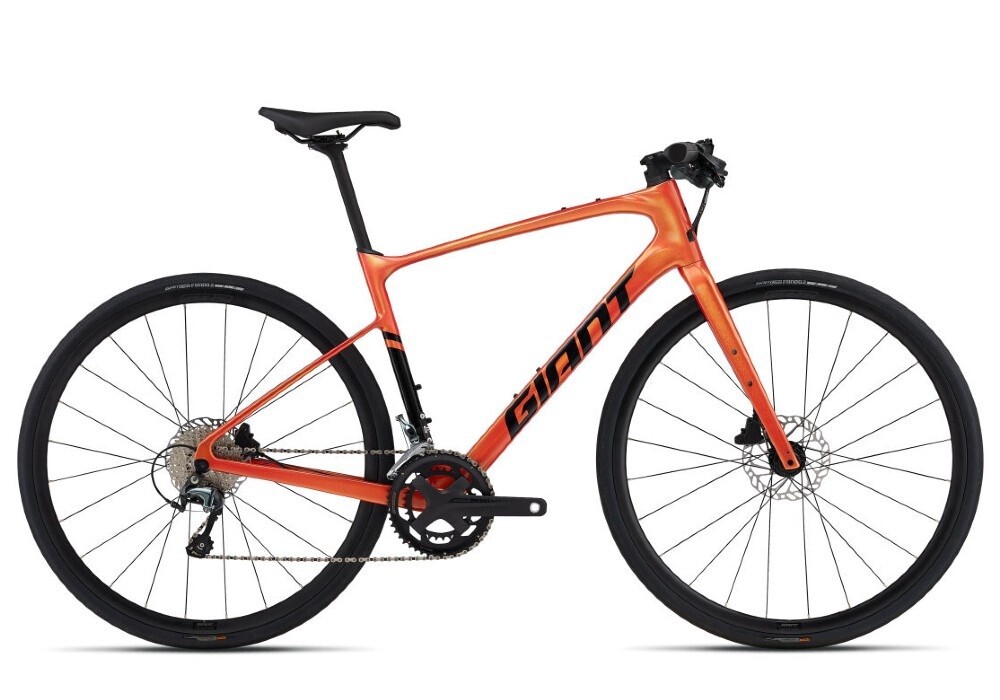

Advanced Composite frameset with road geometry minimises weight and produces a quick, nimble ride quality.
Innovative D-Fuse composite seatpost absorbs road vibrations, and ergonomic grips keep your hands comfortable on longer rides.
Smart-mount rack and fender system lets you customise the bike for fitness riding, commuting or long-range adventures.
S | M | ML | L | XL | ||
---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 445 | 460 | 490 | 520 | 550 |
B | SEAT TUBE ANGLE | 73.5° | 73.0° | 73.0° | 72.5° | 72.5° |
C | TOP TUBE LENGTH (mm) | 545 | 560 | 575 | 595 | 615 |
D | HEAD TUBE LENGTH (mm) | 130 | 155 | 180 | 200 | 225 |
E | HEAD TUBE ANGLE | 71.5° | 72.0° | 72.0° | 72.5° | 72.5° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 64.7 | 61.5 | 61.5 | 58.2 | 58.2 |
H | WHEELBASE (mm) | 1014 | 1020 | 1035 | 1045 | 1065 |
I | CHAIN STAY LENGTH (mm) | 425 | 425 | 425 | 425 | 425 |
J | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 | 70 |
K | STACK (mm) | 537 | 563 | 586 | 607 | 631 |
L | REACH (mm) | 386 | 388 | 396 | 403 | 416 |
M | STAND OVER HEIGHT (mm) | 697 | 719 | 741 | 767 | 795 |
N | HANDLEBAR WIDTH (mm) | 580 | 580 | 620 | 620 | 620 |
O | STEM LENGTH (mm) | 90 | 100 | 100 | 110 | 110 |
P | CRANK LENGTH (mm) | 170 | 170 | 175 | 175 | 175 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
