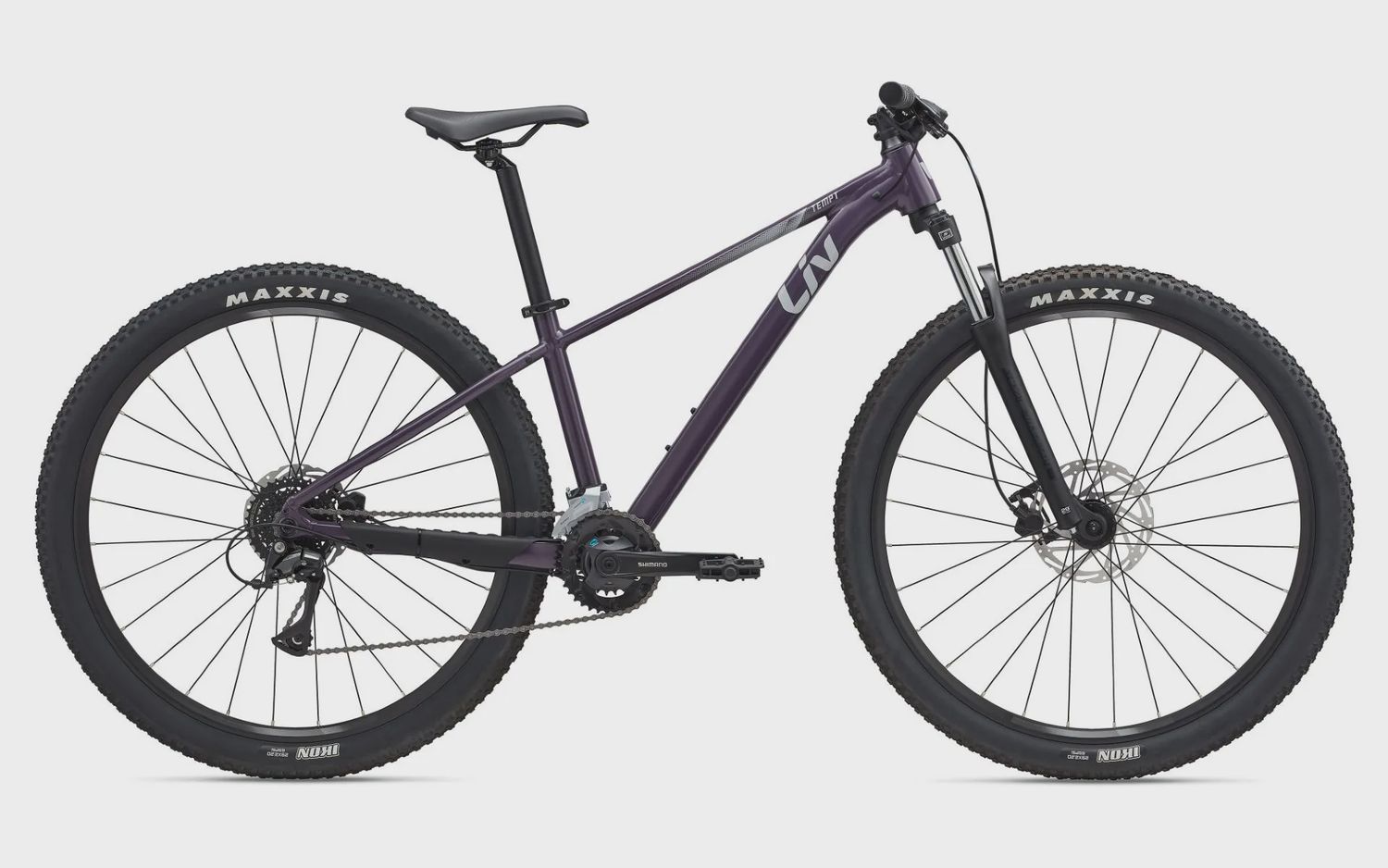

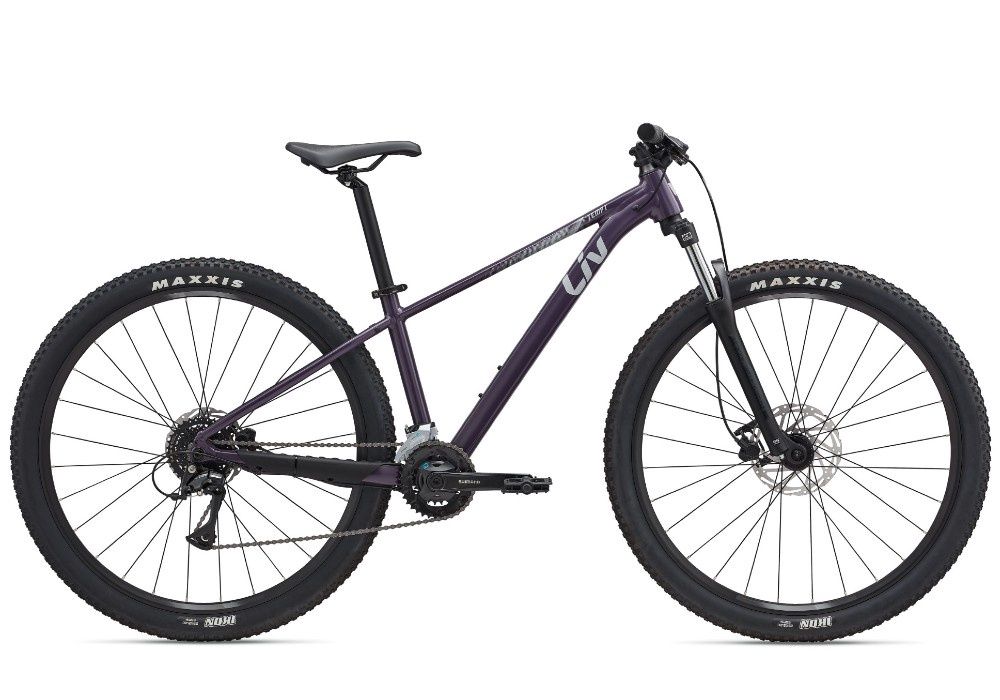

Liv Tempt 3

Modern MTB Design

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Off-Road Control

The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

Specification

• Sizes
  27.5: XS, S 29 S, M, L
• Colours
  Satin Tyrian Purple/Good Grey, Gloss Golden Wheat
• Frame
  ALUXX-grade aluminium, disc
• Fork
  SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) S-L:100mm travel (29)
• Shock
  N/A
• Handlebar
  Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29)
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree rise
• Seatpost
  Giant Sport, 30.9mm
• Saddle
  Liv ErgoContact Trail
• Pedals
  MTB caged
• Shifters
  Shimano Acera, 2x8
• Front Derailleur
  Shimano Acera
• Rear Derailleur
  Shimano Acera
• Brakes
  Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Brake Levers
  Tektro TKD 149, for small hands
• Cassette
  Shimano Acera HG200, 11x34
• Chain
  KMC 8.3
• Crankset
  Shimano Acera FC-M315, 22/36
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Hubs
  Alloy, sealed bearing, [F] 9x100 QR, [R] 12x142 thru-axle
• Spokes
  stainless, 14g
• Tyres
  Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
• Extras
  -
• Max Tyre Clearance
  2.4"
