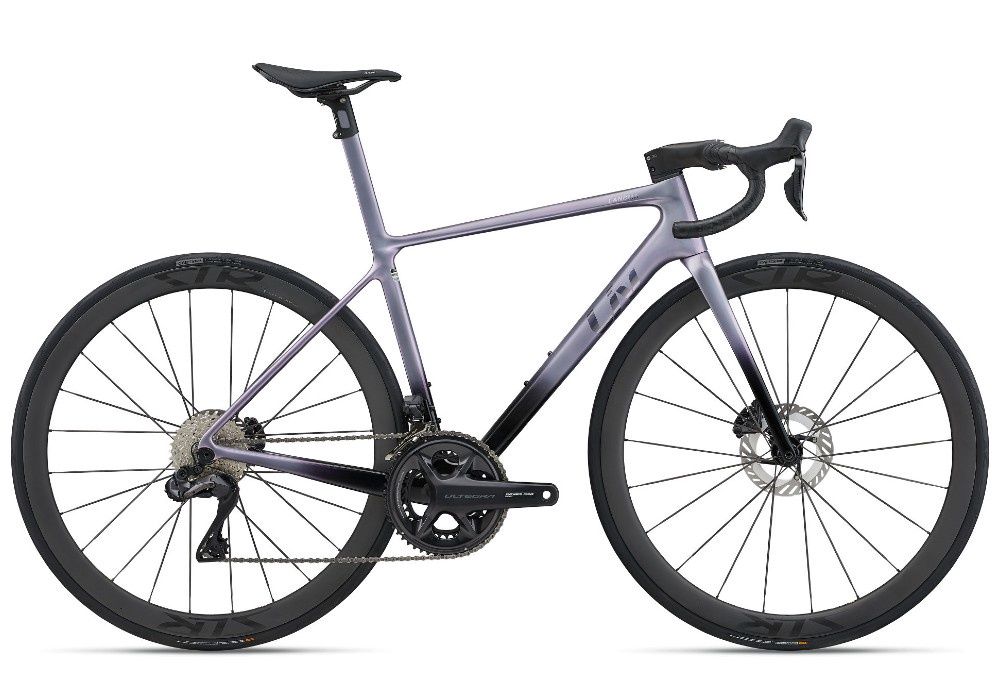

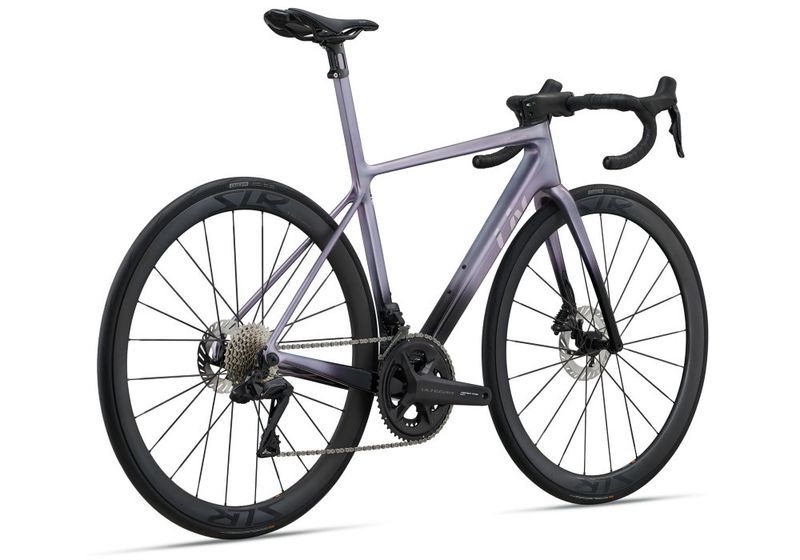

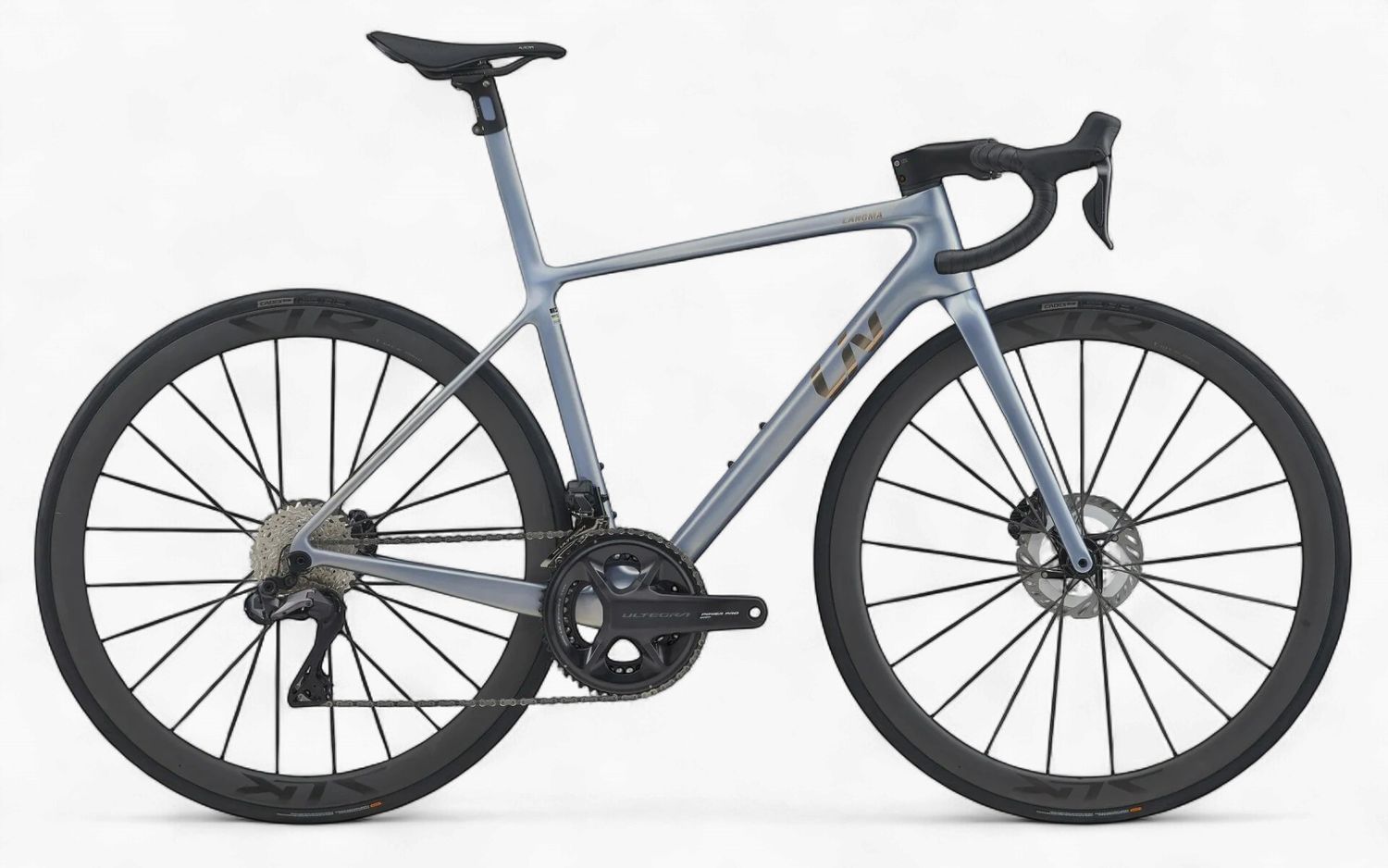

Liv Langma Advanced SL 1

The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.

Key Performance Factors

QOM-LEVEL EFFICIENCY

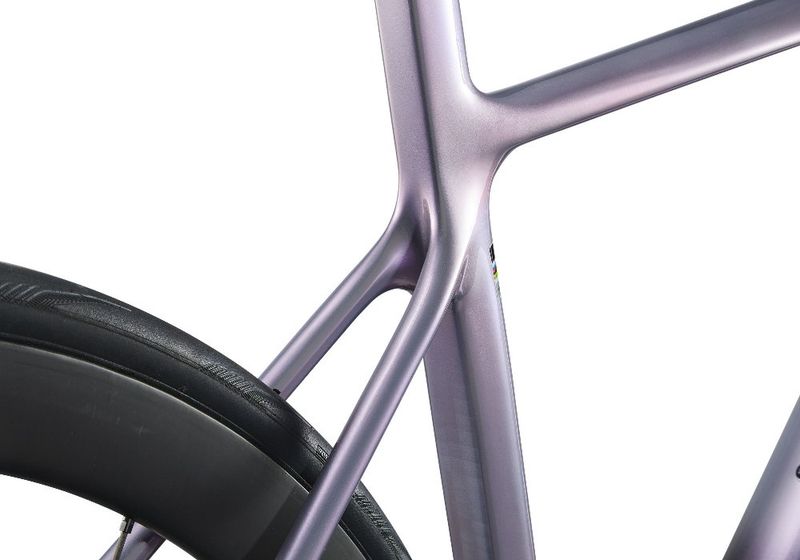

The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”

LIMIT-PUSHING CONTROL

The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tyres, without sacrificing precise handling.

GAP-WIDENING AERO

With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.

Specification

• Sizes
  XS, S, M
• Colours
  Gloss Cosmic Dust/Chrome
• Frame
  Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc

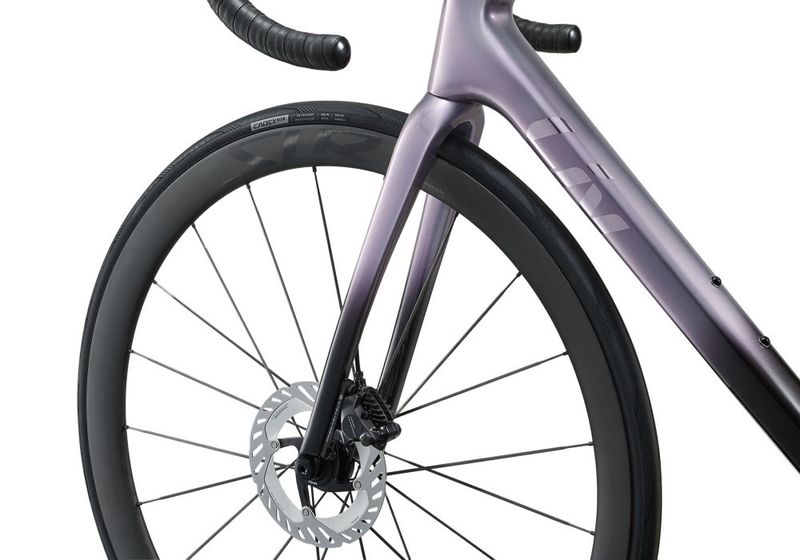

• Fork
  Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

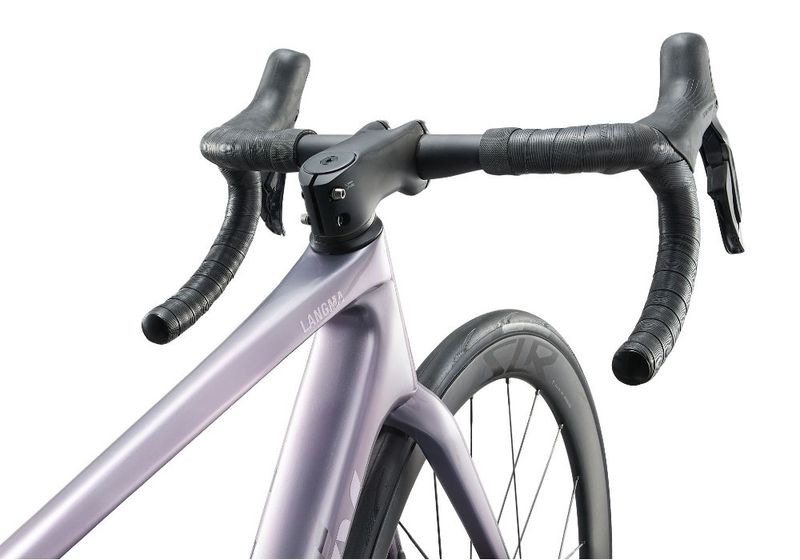

• Handlebar
  Liv Contact SLR 31.8mm, 8-degree flare drop XS: 34/36cm, S: 36/38cm, M: 38/40cm
• Stem
  Giant Contact SLR AeroLight XS: 80mm, S: 90mm, M: 100mm
• Seatpost
  Liv Integrated Seatpost, -5/+15mm offset
• Saddle
  Liv Alacra SLR
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano Ultegra Di2 2x12
• Front Derailleur
  Shimano Ultegra Di2 FD-R8150
• Rear Derailleur
  Shimano Ultegra Di2 RD-R8150
• Brakes
  Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
• Brake Levers
  Shimano Ultegra Di2
• Cassette
  Shimano Ultegra, 12-speed, 11x34
• Chain
  Shimano CN-M8100

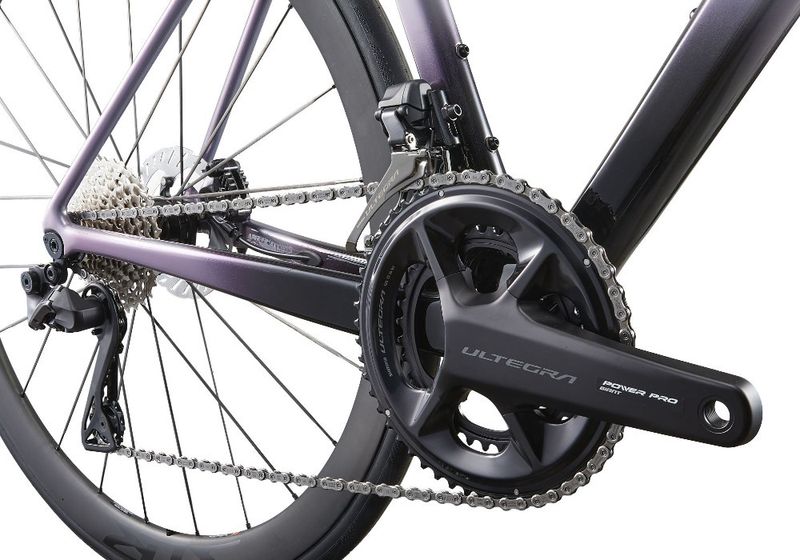

• Crankset
  Shimano Ultegra, 36/52 with Giant Power Pro power meter XS: 165mm, S: 170mm, M: 170mm
• Bottom Bracket
  Shimano, press fit
• Rims
  Giant SLR 0 40 WheelSystem, hookless, 22.4mm inner width
• Hubs
  [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes
  Giant Aero Carbon Spoke
• Tyres
  CADEX Race GC, tubeless, 700x28c (28mm when inflated), folding
• Extras
  Out front computer mount, factory tubeless set up
• Max Tyre Clearance
  33mm
