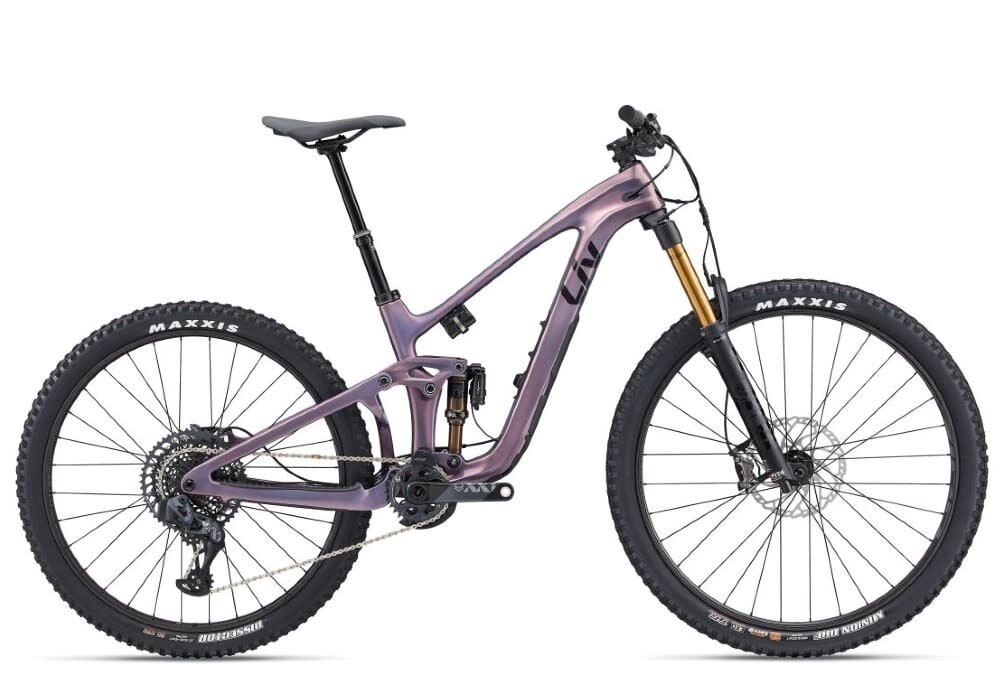

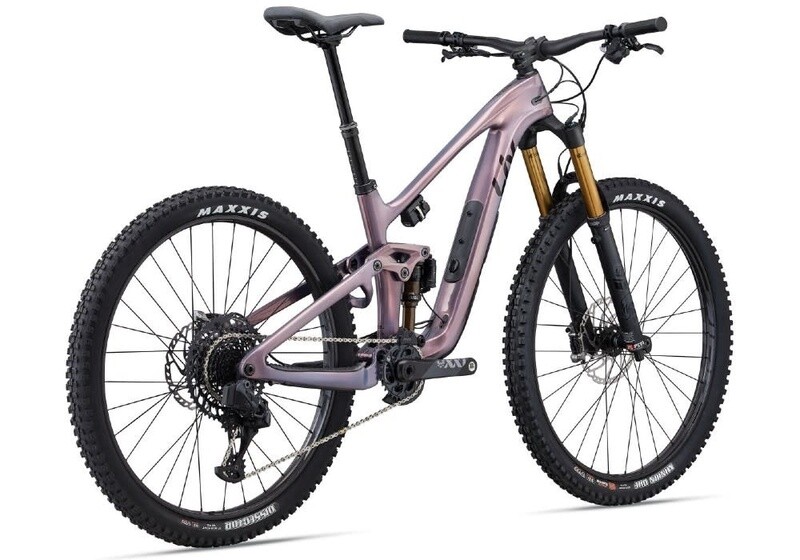

Liv Intrigue LT Advanced Pro 0

Performance Long Travel Trail

Lightweight Advanced-Grade Composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.

Adjustable Frame Geometry

All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your set up.

Specification

• Sizes
  S: MX only
• Colours
  Mirage
• Frame

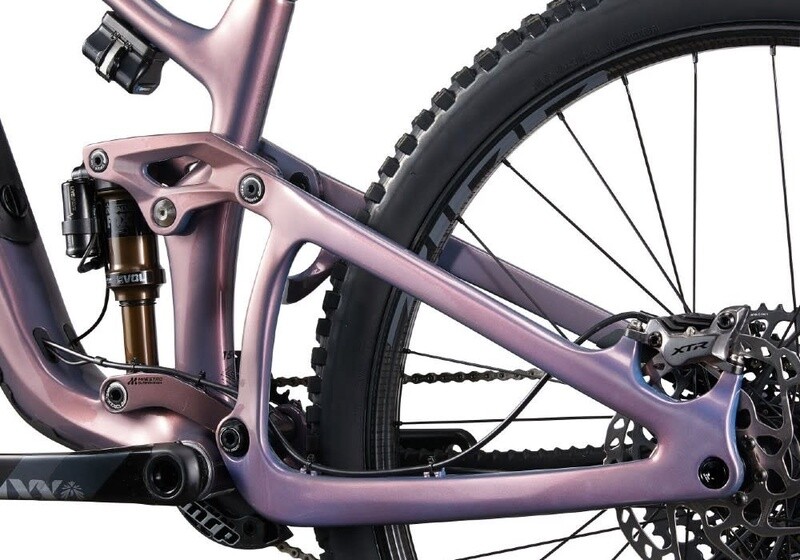

  Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage
• Fork

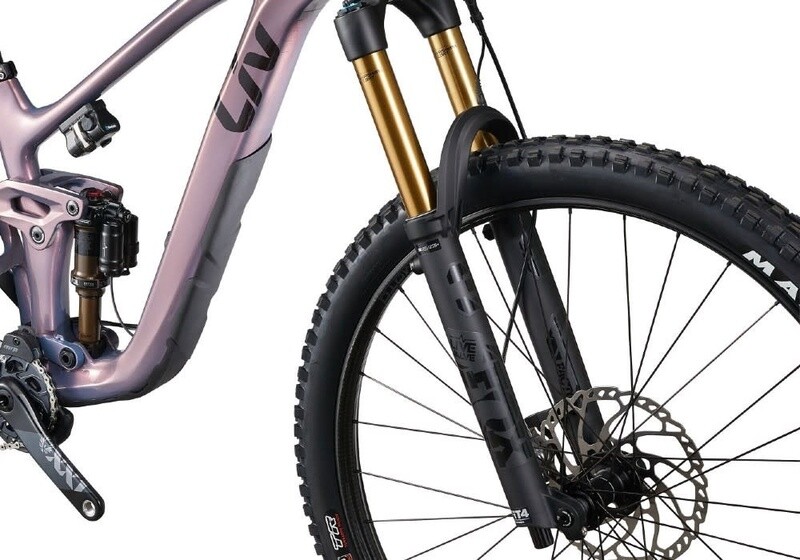

  Fox 36 Factory Live Valve, 160mm, FIT4 damper, Boost, 15x110, Kabolt, tapered, 44mm offset
• Shock

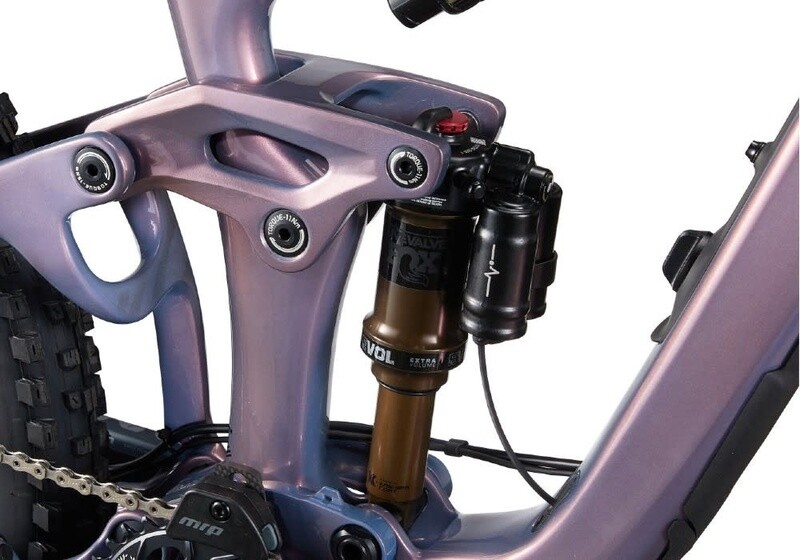

  Fox Factory Live Valve 185x55, custom tuned for Liv
• Handlebar

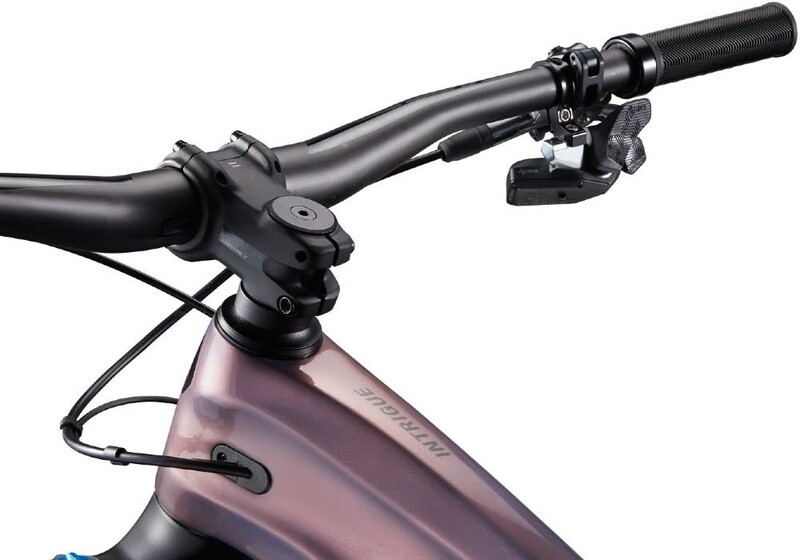

  Giant Contact SLR TR35, composite, 35mm, 20mm rise S: 760mm
• Grips
  Liv Tactal Pro Single Lock-On S: 110mm
• Stem
  Giant Contact SL, 35mm S: 50mm
• Seatpost
  TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm
• Saddle
  Liv Sylvia
• Pedals
  platform
• Shifters
  SRAM AXS Rocker, 1x12
• Front Derailleur
  N/A
• Rear Derailleur

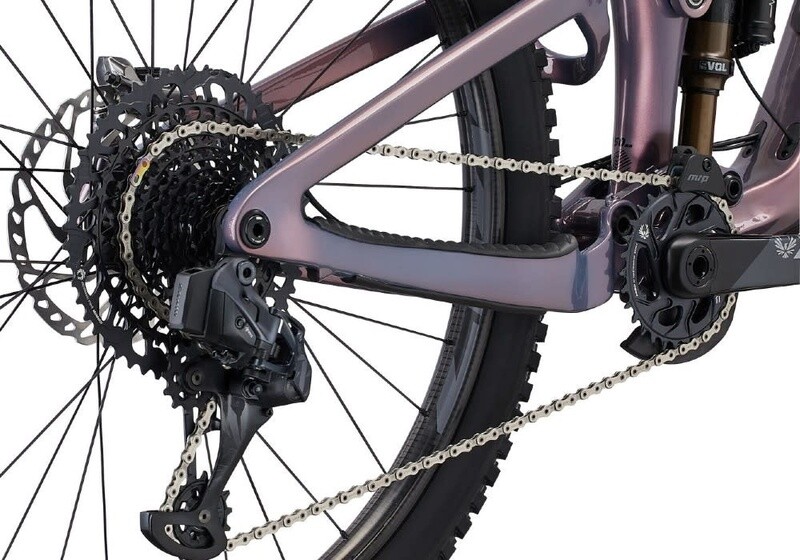

  SRAM XX1 Eagle AXS
• Brakes
  Shimano XTR M9120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers
  Shimano XTR, BL-M9100
• Cassette
  SRAM XX1 Eagle AXS, 10x52
• Chain
  SRAM X01 Eagle
• Crankset
  SRAM XX1 Eagle DUB, 30t, 55mm chainline S: 170mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Zipp 3ZERO MOTO S: [F] 29", [R] 27.5"
• Hubs
  Zipp 3ZERO MOTO
• Spokes
  Zipp 3ZERO MOTO
• Tyres
  [Front] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Rear] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
• Extras

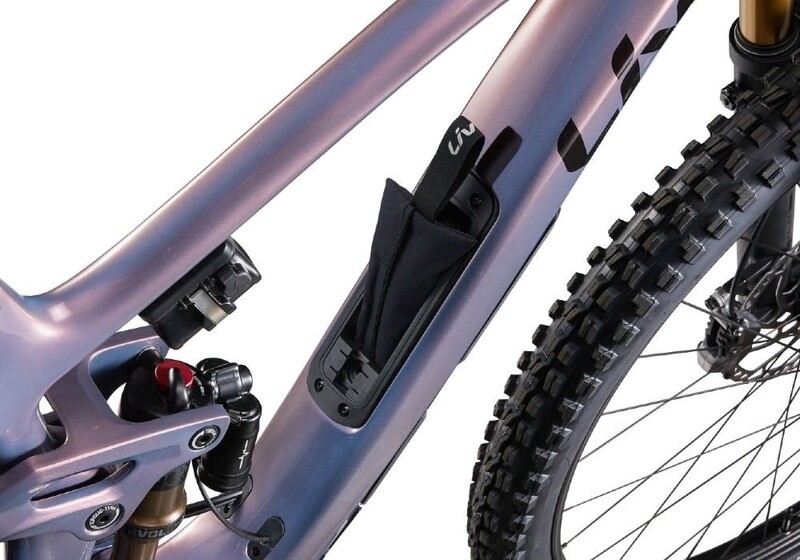

  MRP AMg V2 chainguide, 3M tailgate protector, factory tubeless set up, max tire size 2.5", max chainring size 32t, integrated down tube storage bag
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
