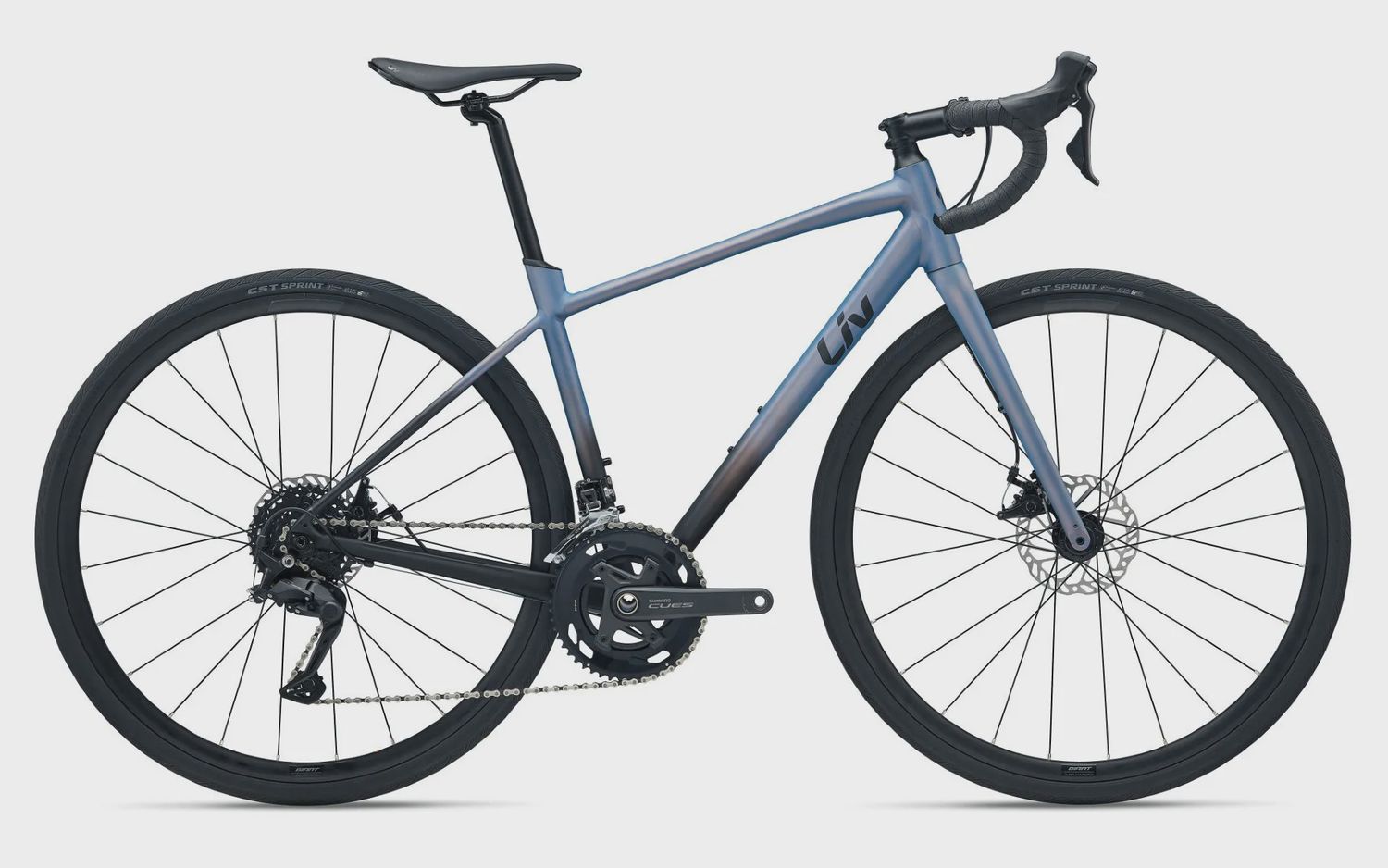

Liv Avail AR 3
Share
£1 099.00
In-Warehouse
4 payments of £274.75 with
Price incl. VAT (20%) £183.17
Colour:Lunar Eclipse
Lunar Eclipse: Pre-order
Size
Pre-order
Pre-order
Pre-order
Pre-order
Available for Pre-Order, contact for delivery date
1
Have questions?
Liv Avail AR 3
Share
Product Details
Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
Specification
-
SizesXS, S, M, L
-
ColoursLunar Eclipse
-
FrameALUXX-grade aluminum, 12x142mm thru-axle, disc
-
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
-
ShockN/A
-
HandlebarLiv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
-
StemGiant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
-
SeatpostGiant D-Fuse, alloy, XXS: 300mm, XS: 300mm, S: 300mm, M: 350mm, L: 350mm
-
SaddleLiv Approach
-
PedalsPEDALS NOT SUPPLIED
-
ShiftersShimano CUES U3030
-
Front DerailleurShimano CUES U3030F
-
Rear DerailleurShimano CUES U4020
-
BrakesTektro MD-C550 mechanical, Giant MPH rotors, [F]160mm, [R]160mm
-
Brake LeversShimano CUES U3030
-
CassetteShimano CS-LG300, 9-speed, 11x36
-
ChainKMC X11
-
CranksetShimano FC-U6030-2, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
-
Bottom BracketShimano BB-RS501
-
RimsGiant S-R2 Disc
-
HubsGiant alloy, 12mm thru-axle
-
Spokesstainless
-
TyresCST Sprint, 700x33c
-
Extras38mm max tire size
-
Max Tyre Clearance38mm
Geometry
| XXS | XS | S | M | L | ||
| A | Seat Tube Length (MM) | 395 | 430 | 465 | 500 | 535 |
| B | Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 74.0° |
| C | Top Tube Length (MM) | 500 | 515 | 525 | 540 | 555 |
| D | Head Tube Length (MM) | 120 | 135 | 150 | 170 | 190 |
| E | Head Tube Angle | 70.0° | 70.5° | 72.0° | 72.0° | 72.0° |
| F | Fork Rake (MM) | 45 | 45 | 45 | 45 | 45 |
| G | Trail (MM) | 76.2 | 73.0 | 63.5 | 63.5 | 63.5 |
| H | Wheelbase (MM) | 986 | 998 | 990 | 1000 | 1016 |
| I | Chain Stay Length (MM) | 420 | 420 | 420 | 420 | 420 |
| J | Bottom Bracket Drop (MM) | 70 | 70 | 70 | 70 | 70 |
| K | Stack (MM) | 514 | 530 | 550 | 569 | 588 |
| L | Reach (MM) | 362 | 372 | 372 | 377 | 386 |
| M | Stand Over Height (MM) | 662 | 687 | 716 | 744 | 772 |
| N | Handlebar Width (MM) | 380 | 380 | 400 | 400 | 420 |
| O | Stem Length (MM) | 70 | 70 | 80 | 90 | 90 |
| P | Crank Length (MM) | 160 | 165 | 165 | 170 | 172 |
