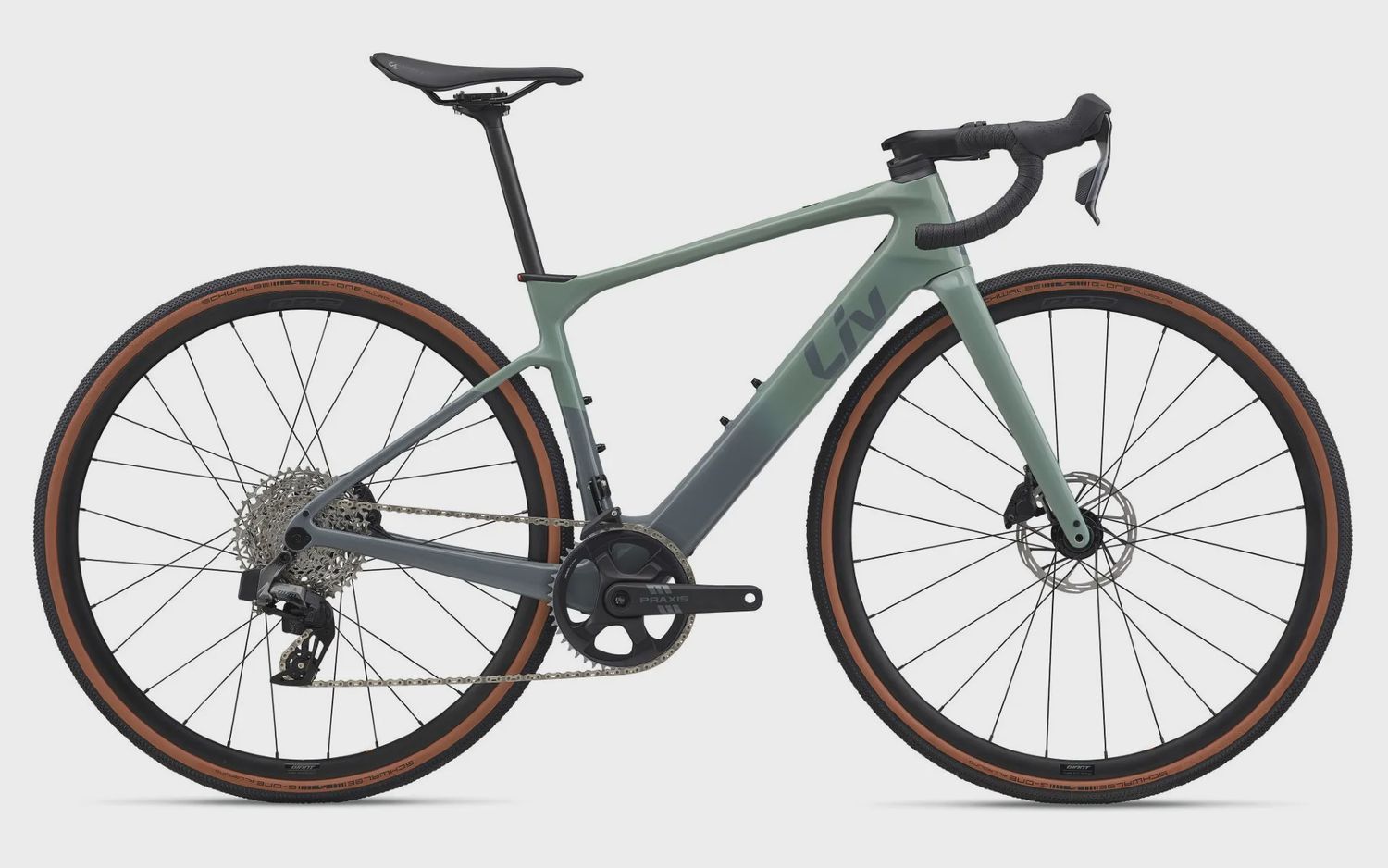

Liv Avail Advanced E+ Elite AR
Share
Product Details

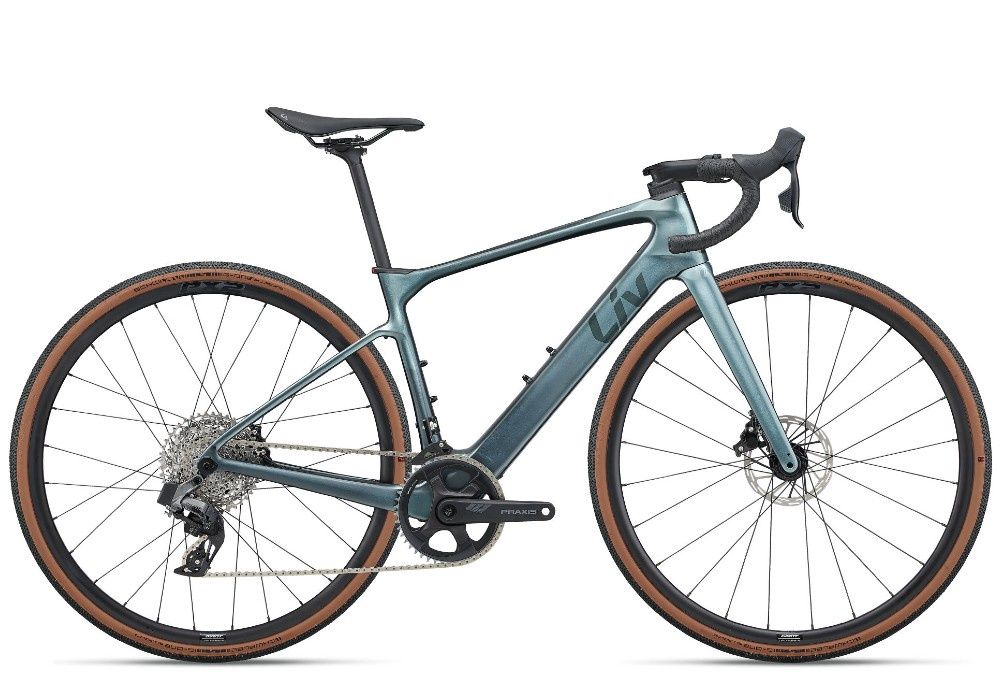

The design of the Avail Advanced E+ Elite AR stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.
Key Performance Factors
A Natural Ride
It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.
Maximum Miles. Minimum Fatigue.
The Avail Advanced E+ Elite AR provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.
Delivering Power & Speed
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).
Specification
-
MotorSyncDrive Move Plus, Hub drive 75Nm max
-
BatteryGiant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
-
ChargerGiant EnergyPak smart charger 4A
-
ControllerMode support switch from SRAM Blips
-
DisplayGiant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
-
SizesXS, S, M, L
-
ColoursEucalyptus/ Ocean Storm
-
FrameAdvanced-grade composite,12x145 thru-axle
-
ForkAdvanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
-
Shock-
-
HandlebarLiv Contact SL D-Fuse 31.8 alloy
-
StemContact SL Aerolight 31.8 alloy
-
SeatpostGiant D-Fuse, Composite, 14mm offset
-
SaddleLiv Approach
-
PedalsPEDALS NOT SUPPLIED
-
ShiftersSram Rival AXS
-
Front Derailleurn/a
-
Rear DerailleurSram Rival XPLR AXS
-
BrakesSram Rival AXS HRD, Paceline 160mm 6-bols [F/R]
-
Brake LeversSram Rival AXS HRD
-
CassetteSram XPLR XG-1251 10x44T 12-speed
-
ChainSram Rival 12-speed
-
CranksetSram X-SYNC 46T BCD107 chain ring Praxis E crank Alloy ISIS
-
Bottom BracketGiant E+ System BBSS
-
RimsGiant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
-
TyresSchwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
-
ExtrasFender adapter
Geometry
| XS | S | M | L | ||
| A | Seat Tube Length (MM) | 400 | 435 | 470 | 505 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.0° | 73.5° |
| C | Top Tube Length (MM) | 515 | 525 | 540 | 555 |
| D | Head Tube Length (MM) | 120 | 135 | 155 | 175 |
| E | Head Tube Angle | 70.5° | 71.0° | 72.0° | 72.0° |
| F | Fork Rake (MM) | 50 | 50 | 50 | 50 |
| H | Wheelbase (MM) | 993 | 999 | 1003 | 1013 |
| I | Chain Stay Length (MM) | 420 | 420 | 420 | 420 |
| J | Bottom Bracket Drop (MM) | 80 | 80 | 80 | 75 |
| K | Stack (MM) | 529 | 545 | 563 | 582 |
| L | Reach (MM) | 368 | 374 | 378 | 382 |
| M | Stand Over Height (MM) | 677 | 708 | 743 | 782 |
| N | Handlebar Width (MM) | 380 | 400 | 400 | 420 |
| O | Stem Length (MM) | 80 | 90 | 100 | 110 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
