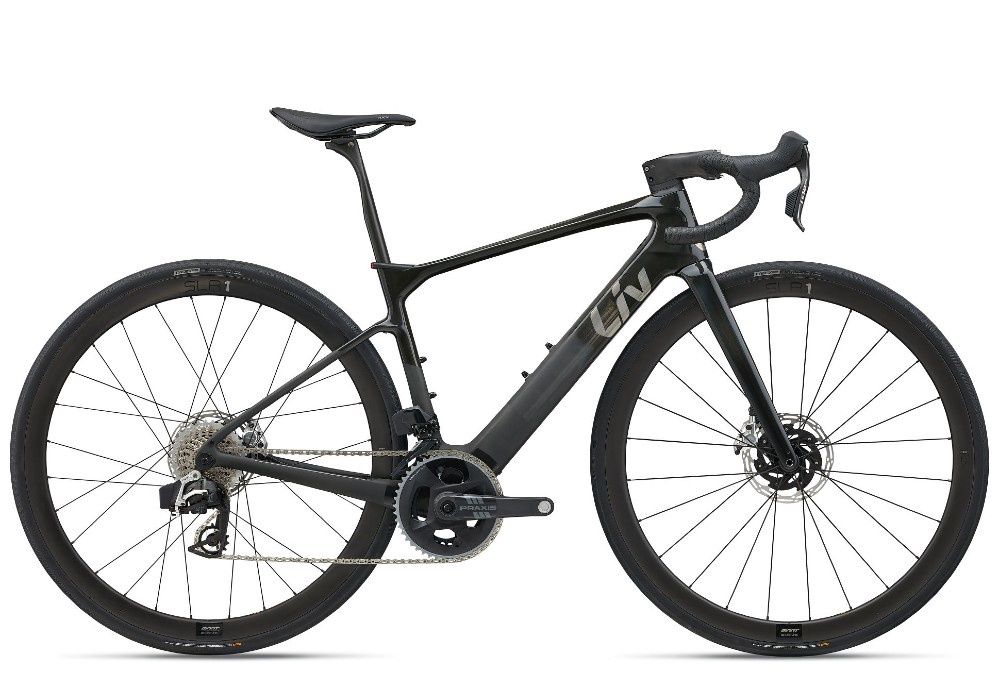

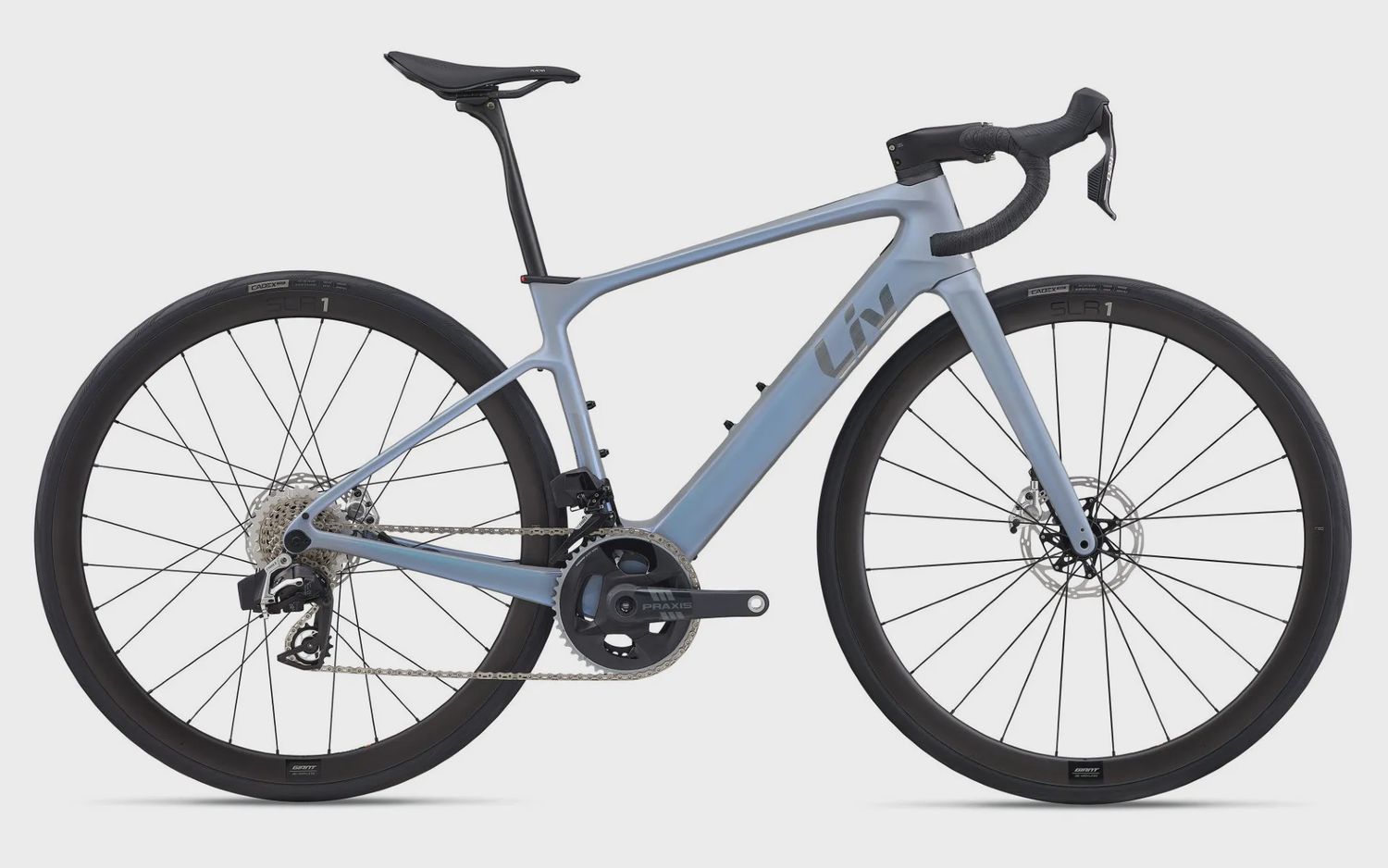

Liv Avail Advanced E+ Elite 0

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Key Performance Factors

A NATURAL RIDE

It looks like an analogue road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

MAXIMUM MILES. MINIMUM FATIGUE.

The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

DELIVERING POWER & SPEED

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is compatible to 75 Nm in a centre motor. It provides the maximum assisted speed to reach the speed limit of 45 km/h / 28 mph (US), 32 km/h (Canada), and 25 km/h (in other regions worldwide).

Specification

• Motor
  SyncDriveMove Plus Hub drive 75Nm max
• Battery
  EnergyPak Smart 400Wh by Panasonic, Aluminium casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, 2300 charging cycles. EnergyPak Plus 200 range extender compatible
• Charger
  Giant EnergyPak 4A smart charger, 60% in 1:45
• Controller
  Mode support switch from SRAM bonus button
• Display
  Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
• Sizes
  XS, S, M
• Colours
  Gloss Raw Carbon / Matte Raw Carbon
• Frame
  Advanced-grade composite,12x145 thru-axle
• Fork
  Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Shock
  -
• Handlebar
  Liv Contact SLR D-Fuse 31.8 carbon
• Stem
  Contact SLR Aerolight 31.8 carbon
• Seatpost
  Giant D-Fuse SLR, Composite, -5/+15mm offset
• Saddle
  Liv Alacra SL CS
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Sram RED AXS 2x12
• Front Derailleur
  Sram RED AXS
• Rear Derailleur
  Sram RED AXS
• Brakes
  Sram RED AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bols [R]
• Brake Levers
  Sram RED AXS HRD
• Cassette
  SRAM RED XG-1290 10x33T 12-speed
• Chain
  Sram RED 12-speed
• Crankset
  Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E crank Carbon ISIS
• Bottom Bracket
  Giant E+ System BBSS
• Rims
  Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised
• Spokes
  Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised
• Tyres
  Cadex Classic 95PSI 700x28C 170TPI Tubeless Foldable
