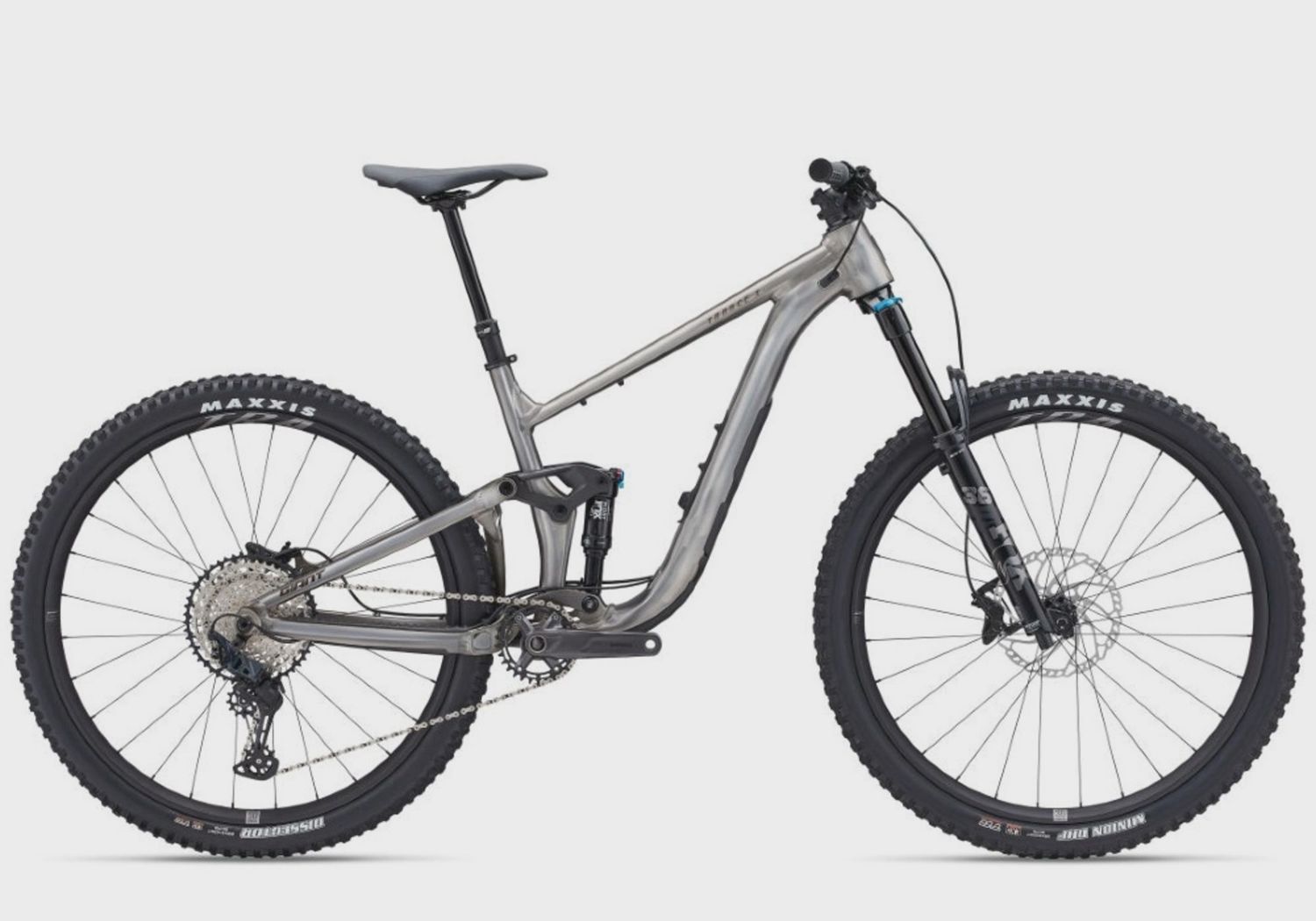

Giant Trance X 1

Updated suspension

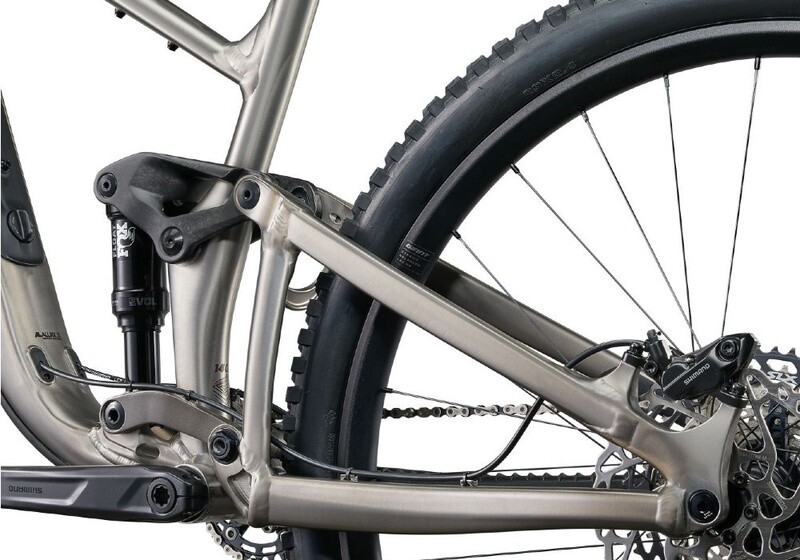

A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favour this “mullet” setup for riding steep, technical terrain.

Specification

• Sizes
  S, M, L, XL
• Colours
  Smoke Metal/Chrome
• Frame
  ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
• Fork
  Fox 36 Float Performance, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
• Shock
  Fox Float Performance, 185/52.5, custom tuned for Giant
• Handlebar
  Giant Contact TR35, 780x35mm, 20mm rise
• Grips
  Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost
  Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle
  Giant Romero
• Pedals
  PEDALS NOT SUPPLIED
• Shifters
  Shimano SLX SL-M7100, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano SLX RD-M7100
• Brakes
  Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers
  Shimano Deore BL-MT501
• Cassette
  Shimano SLX, 10x51
• Chain
  KMC X-12
• Crankset
  Shimano M512, 30t, 55mm chainline
• Bottom Bracket
  Shimano Press Fit
• Rims
  Giant TRA, 29" hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body
• Hubs
  [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
• Spokes
  Sapim, 28, straight pull, DBL Technology
• Tyres
  [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
• Extras
  Factory tubeless set up, 2.5" max tyre size, 34t max chainring size
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
