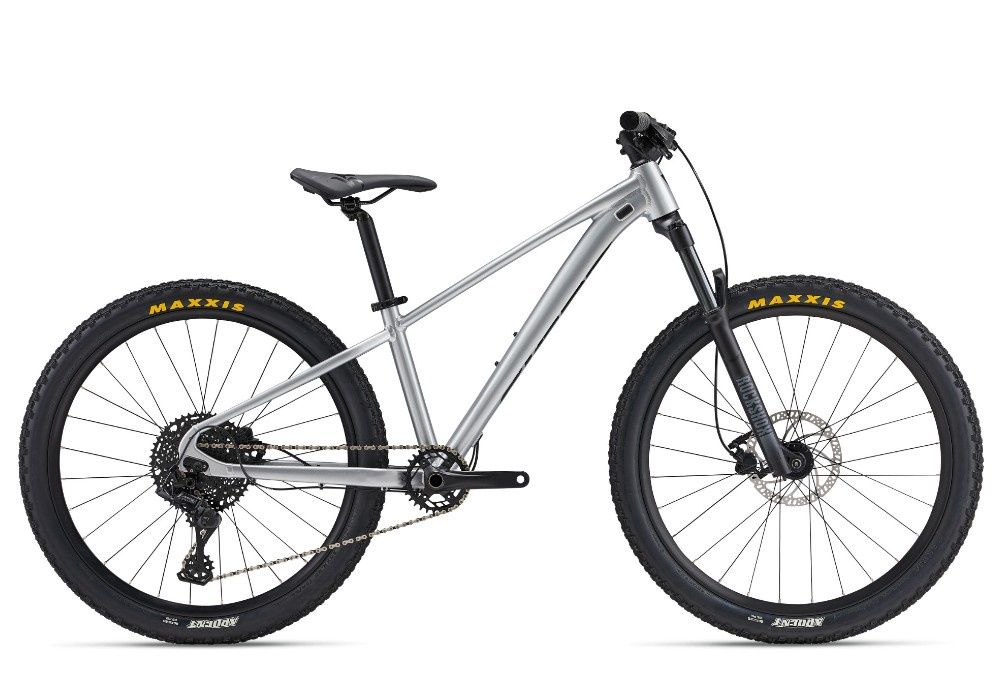

Giant STP 26

Trail-inspired geometry

Lightweight, durable aluminium frameset with a longer top tube, tighter rear triangle and slacker head angle for agile handling on dirt jumps, trail or street sessions.

Quick and responsive

Frame geometry is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident ride quality.

Maximum control

Powerful disc brakes and 120mm suspension fork with remote lockout put maximum control in the rider’s hands. Grippy, high-volume 26-inch tyres are optimal for streets, trail or park riding.

Specification

• Sizes
  regular
• Colours
  Quicksilver
• Frame
  ALUXX-grade aluminium, horizontal dropouts, integrated chain tensioner
• Fork
  Giant CREST 34 Boost RCL, 15x110mm, 100mm
• Shock
  N/A
• Handlebar
  Giant Sport, alloy, 31.8mm
• Grips
  Giant Sole-O
• Stem
  forged alloy, 0-degree
• Seatpost
  Alloy, two-bolt, 30.9x300mm (regular)
• Saddle
  Giant Sport
• Pedals
  platform
• Shifters
  MicroSHIFT Advent X SL-M9605 1x10
• Front Derailleur
  N/A
• Rear Derailleur
  MicroSHIFT Advent X RD-M6205
• Brakes
  Tektro HD-M275, hydraulic [F]180mm, [R]160mm rotors
• Brake Levers
  Tektro HD-M275
• Cassette
  MicroSHIFT Advent X CS-H104, 11x48
• Chain
  KMC X10
• Crankset
  Prowheel Charm, 30t, 155mm (regular)
• Bottom Bracket
  Sealed cartridge
• Rims
  Giant 26", alloy, 28mm inner width
• Hubs
  Giant Disc, 28h, 100x15 thru-axle, alloy, disc
• Spokes
  Stainless steel, 14g
• Tyres
  Maxxis Ikon, 26x2.2"
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
