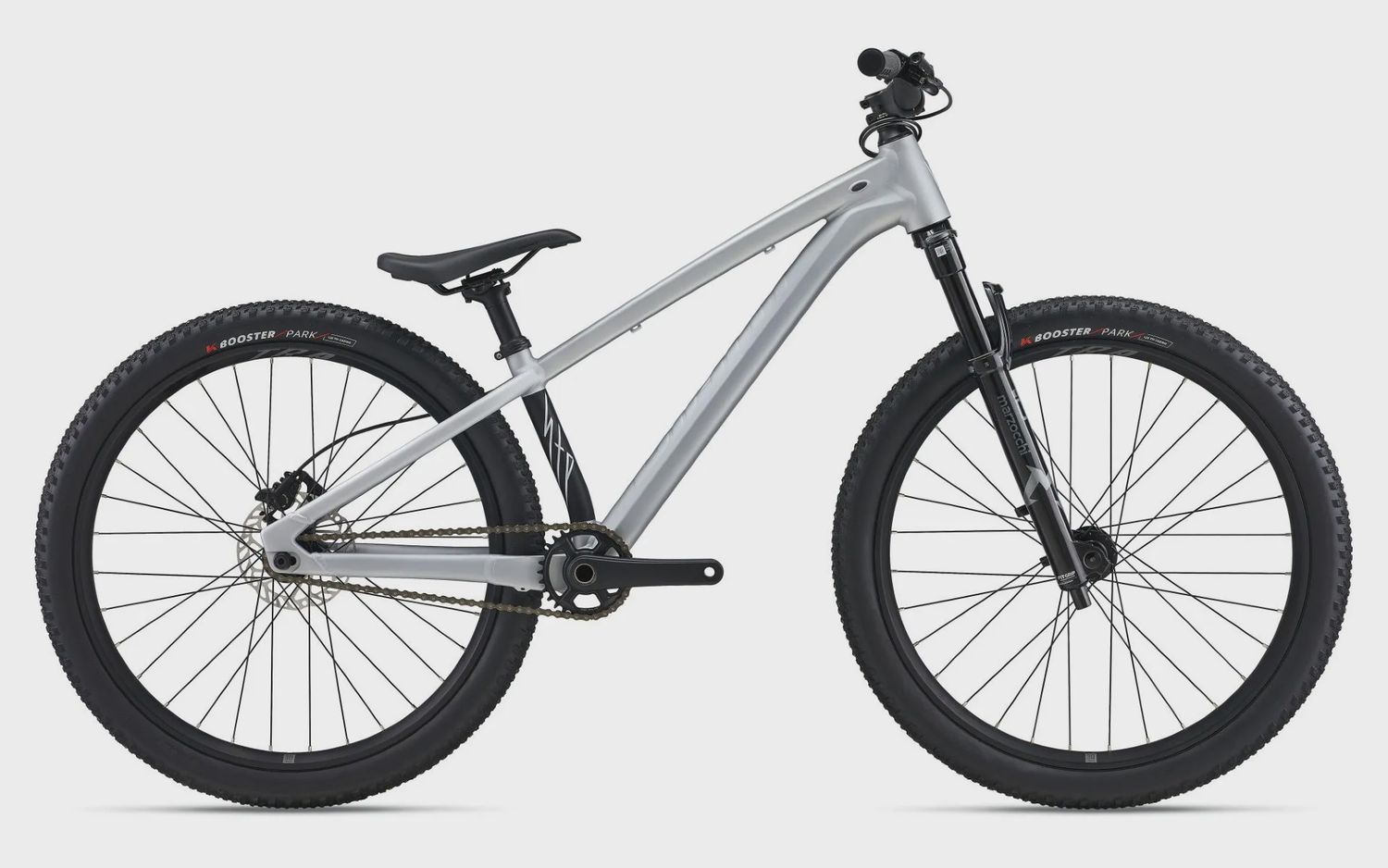

Lightweight, durable aluminium frameset with a longer top tube, tighter rear triangle and slacker head angle for agile handling on dirt jumps, trail or street sessions.
Frame geometry is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident ride quality.
Powerful disc brakes and 120mm suspension fork with remote lockout put maximum control in the rider’s hands. Grippy, high-volume 26-inch tyres are optimal for streets, trail or park riding.
Regular | ||
---|---|---|
B | Seat Tube Angle | 73.5° |
C | Top Tube Length (mm) | 545 |
D | Head Tube Length (mm) | 100 |
E | Head Tube Angle | 67.0° |
H | Wheelbase (mm) | 1086 |
I | Chain Stay Length (mm) | 435 |
K | Stack (mm) | 579 |
L | Reach (mm) | 374 |
M | Stand Over Height (mm) | 679.5 |
P | Crank Length (mm) | 155 |
