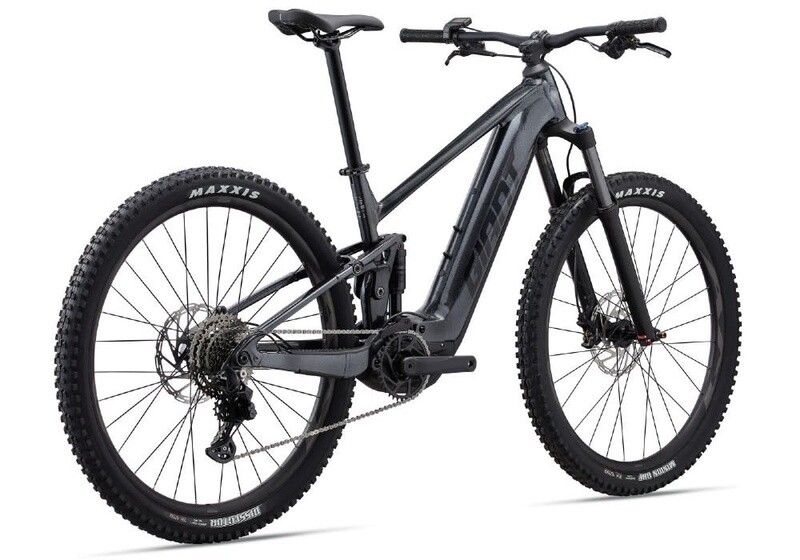

Giant Stance E+ 2 625Wh

Powerful pedalling support

The new compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.

Confident handling

ALUXX SL aluminium frame with 120mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.

Long-lasting fun

The new EnergyPak offers ample range and the integrated battery pack makes charging quick and easy.

Specification

• Motor
  SyncDrive Sport, 75Nm
• Controller
  Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Display
  RideControl Dash, full colour LCD screen
• Battery
  Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible
• Charger
  Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h
• Connectivity
  Giant RideControl App enabled ANT+ wireless display signal with E-bike profile
• Sizes
  S, M, L, XL
• Colours
  Black Diamond
• Frame
  ALUXX SL-grade aluminium, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 1.5~1.8" headset
• Fork
  SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
• Shock
  SR Suntour Raidon R, 190x45mm, recommended sag: 30%
• Handlebar
  Giant Connect TR Riser 31.8x780mm
• Grips
  Giant Tactal single lock-on
• Stem
  Giant Contact
• Seatpost
  Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle
  Giant Sport
• Pedals
  Flatpedal
• Shifters
  Shimano Deore LinkGlide
• Front Derailleur
  MRP HD2 co-moulded chain guide
• Rear Derailleur
  Shimano Deore LinkGlide, 10-speed
• Brakes
  Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
• Brake Levers
  Tektro HD-M745 Orion
• Cassette
  Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
• Chain
  Shimano, LinkGlide, CN-LG500
• Crankset
  FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
• Bottom Bracket
  n/a
• Rims
  Giant AM30, Tubeless ready, 30mm inner width, 29"
• Hubs
  Giant eTracker Boost, [F] 110x15 [R] 148x12mm
• Spokes
  Stainless Steel
• Tyres
  Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI [R]
• Extras
  -
• Lighting
  -
• Lock
  Torx 25 Battery Lock with built-in Torque limiter
• Carrier
  -
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
