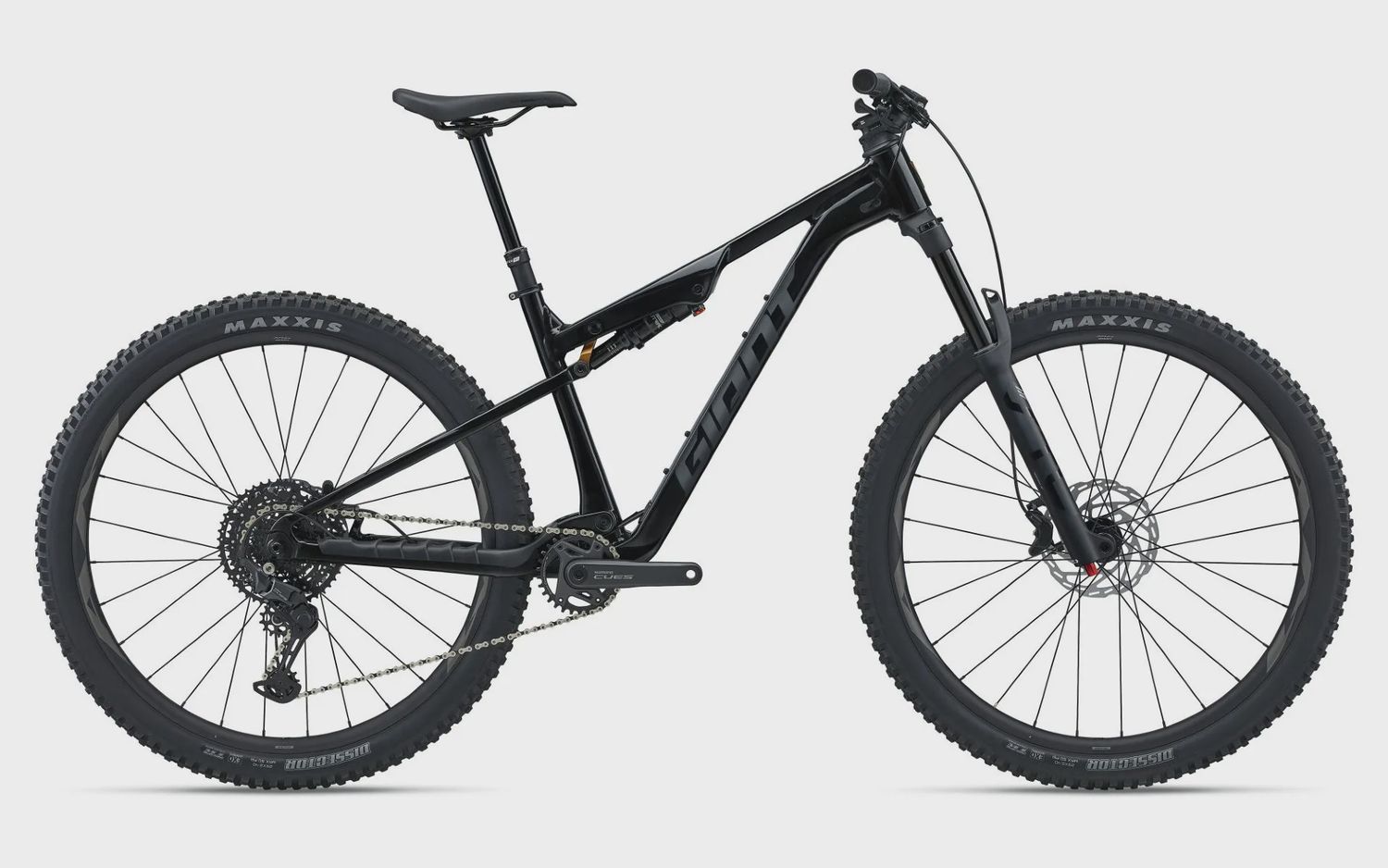

Giant Stance

Modern trail geometry

A slacker head tube angle (65.5 degrees) and steeper seat tube angle (76.5 degrees) place the rider in a confident, balanced position to take on technical climbs and descents.

Proven suspension setup

FlexPoint rear suspension offers 125mm of smooth, active travel. The frame is paired with a 140mm fork, delivering maximum confidence on climbs and descents.

Lightweight aluminum frame

The ALUXX aluminium frameset is hand-built and engineered in-house by the world leader in alloy bicycle technology. An external storage space makes it easy to carry tools, snacks and other ride essentials.

Specification

• Sizes
  S, M, L
• Colours
  Satin Black Diamond
• Frame
  ALUXX-grade aluminium, 125mm FlexPoint suspension, 12x148mm thru-axle
• Fork
  Giant STL 34 RCL, 140mm, Boost 15x110 QR, custom tuned for Giant
• Shock
  Suntour Raidon R, 190x45
• Handlebar
  Giant Contact SL TR35, 780x35mm
• Grips
  Giant Sole-O
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:50mm
• Seatpost
  Giant Contact Switch AT dropper, remote S: 110mm - 140mm travel / 30.9 x 395mm M: 140mm - 170mm travel / 30.9 x 470mm L: 170mm - 200mm travel / 30.9 x 530mm
• Saddle
  Giant Romero
• Pedals
  N/A
• Shifters
  Shimano CUES SL-6000-10R, 1x10
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano CUES RD-U6000
• Brakes
  Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
• Brake Levers
  Shimano BL-MT201
• Cassette
  Shimano CUES CS-LG300, 11x48
• Chain
  Shimano CUESLG500
• Crankset
  Shimano CUES FC-U6000-1, 32t S:170mm, M:170mm, L:170mm
• Bottom Bracket
  Shimano, threaded
• Rims
  Giant AM 27.5 alloy, tubeless ready
• Hubs
  [F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport 148x12
• Spokes
  Sapim
• Tyres
  [F] Maxxis Minion DHF 27.5x2.6, EXO, TR [R] Maxxis Dissector 27.5x2.6, Dual, EXO, TR, tubeless
• Extras
  Factory tubeless set up, max tyre size 2.6", max chainring size 32t
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
