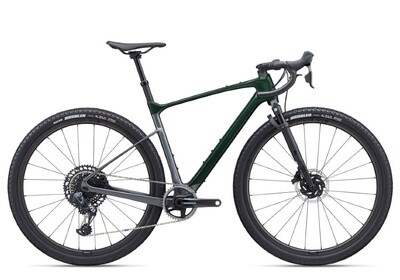

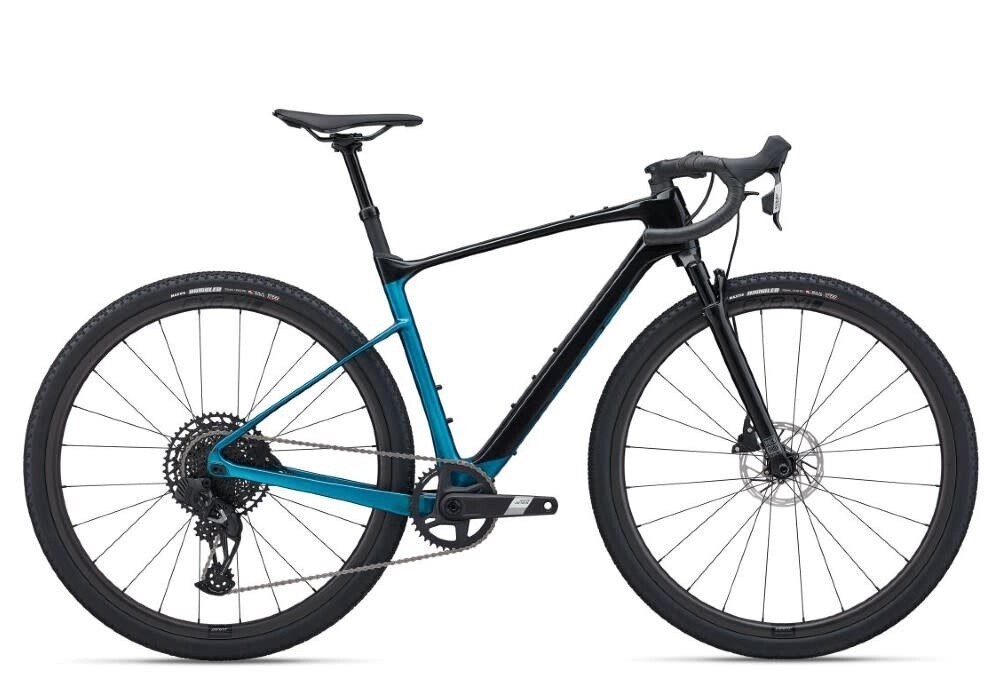

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added comfort.
S | M | ML | L | XL | ||
---|---|---|---|---|---|---|
SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
A | SEAT TUBE LENGTH (mm) | 450 | 470 | 490 | 510 | 530 |
B | SEAT TUBE ANGLE | 73.5° | 73.4° | 73.5° | 73.4° | 73.0° | 72.9° | 73.0° | 72.9° | 73.0° | 72.9° |
C | TOP TUBE LENGTH (mm) | 553 | 560 | 575 | 585 | 600 |
D | HEAD TUBE LENGTH (mm) | 100 | 115 | 130 | 145 | 160 |
E | HEAD TUBE ANGLE | 71.0° | 70.9° | 71.5° | 71.4° | 72.0° | 71.9° | 72.0° | 71.9° | 72.0° | 71.9° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 76.9 | 80.3 | 73.5 | 76.8 | 70.1 | 73.4 | 70.1 | 73.4 | 70.1 | 73.4 |
H | WHEELBASE (mm) | 1024 | 1034 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1057 | 1067 |
I | CHAIN STAY LENGTH (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
J | BOTTOM BRACKET DROP (mm) | 68 | 69 | 68 | 69 | 68 | 69 | 68 | 69 | 68 | 69 |
K | STACK (mm) | 560 | 576 | 592 | 607 | 621 |
L | REACH (mm) | 387 | 389 | 393 | 399 | 410 |
M | STAND OVER HEIGHT (mm) | 736 | 743 | 755 | 761 | 772 | 778 | 790 | 796 | 808 | 814 |
N | HANDLEBAR WIDTH (mm) | 440 | 460 | 460 | 480 | 480 |
O | STEM LENGTH (mm) | 60 | 70 | 80 | 80 | 90 |
P | CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
Q | WHEEL SIZE | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
