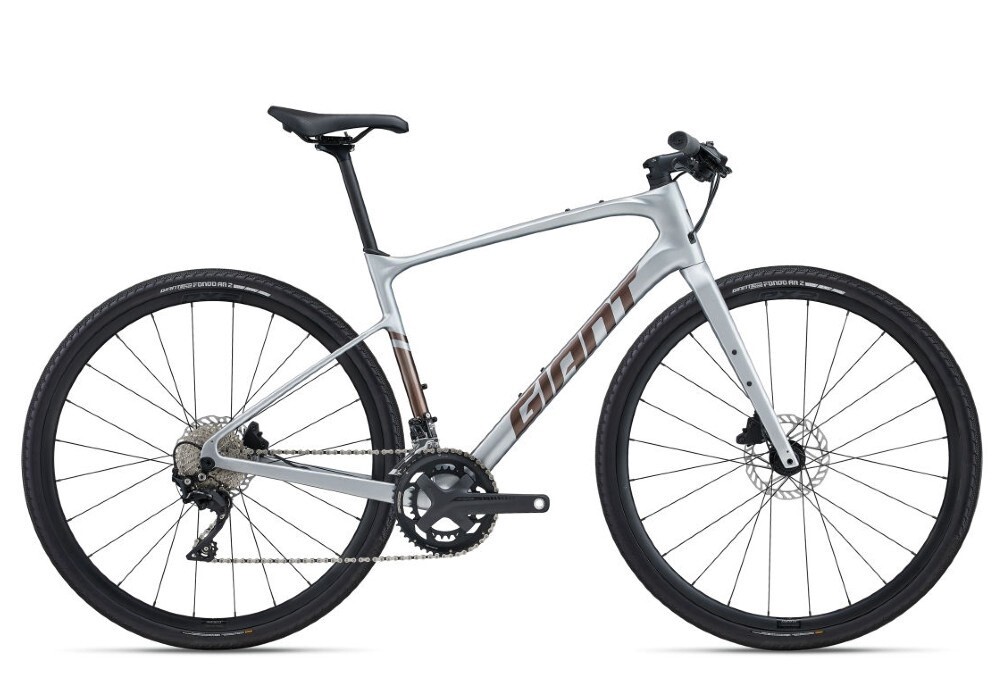

Advanced Composite frameset and sleek shaping make this model more than 200 grams lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.
Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.
With clearance for high-volume tubeless tyres (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.
M | ML | L | XL | ||
---|---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 475 | 495 | 525 | 555 |
B | SEAT TUBE ANGLE | 73.5° | 73.0° | 73.0° | 73.0° |
C | TOP TUBE LENGTH (mm) | 575 | 590 | 610 | 630 |
D | HEAD TUBE LENGTH (mm) | 155 | 175 | 200 | 225 |
E | HEAD TUBE ANGLE | 71.0° | 71.0° | 71.5° | 71.5° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 70 | 70 | 67 | 67 |
H | WHEELBASE (mm) | 1058 | 1069 | 1084 | 1105 |
I | CHAIN STAY LENGTH (mm) | 435 | 435 | 435 | 435 |
J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 75 | 75 |
K | STACK (mm) | 578 | 597 | 623 | 646 |
L | REACH (mm) | 404 | 407 | 419 | 432 |
M | STAND OVER HEIGHT (mm) | 756 | 773 | 800 | 826 |
N | HANDLEBAR WIDTH (mm) | 680 | 680 | 680 | 680 |
O | STEM LENGTH (mm) | 90 | 90 | 100 | 110 |
P | CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 172.5 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
