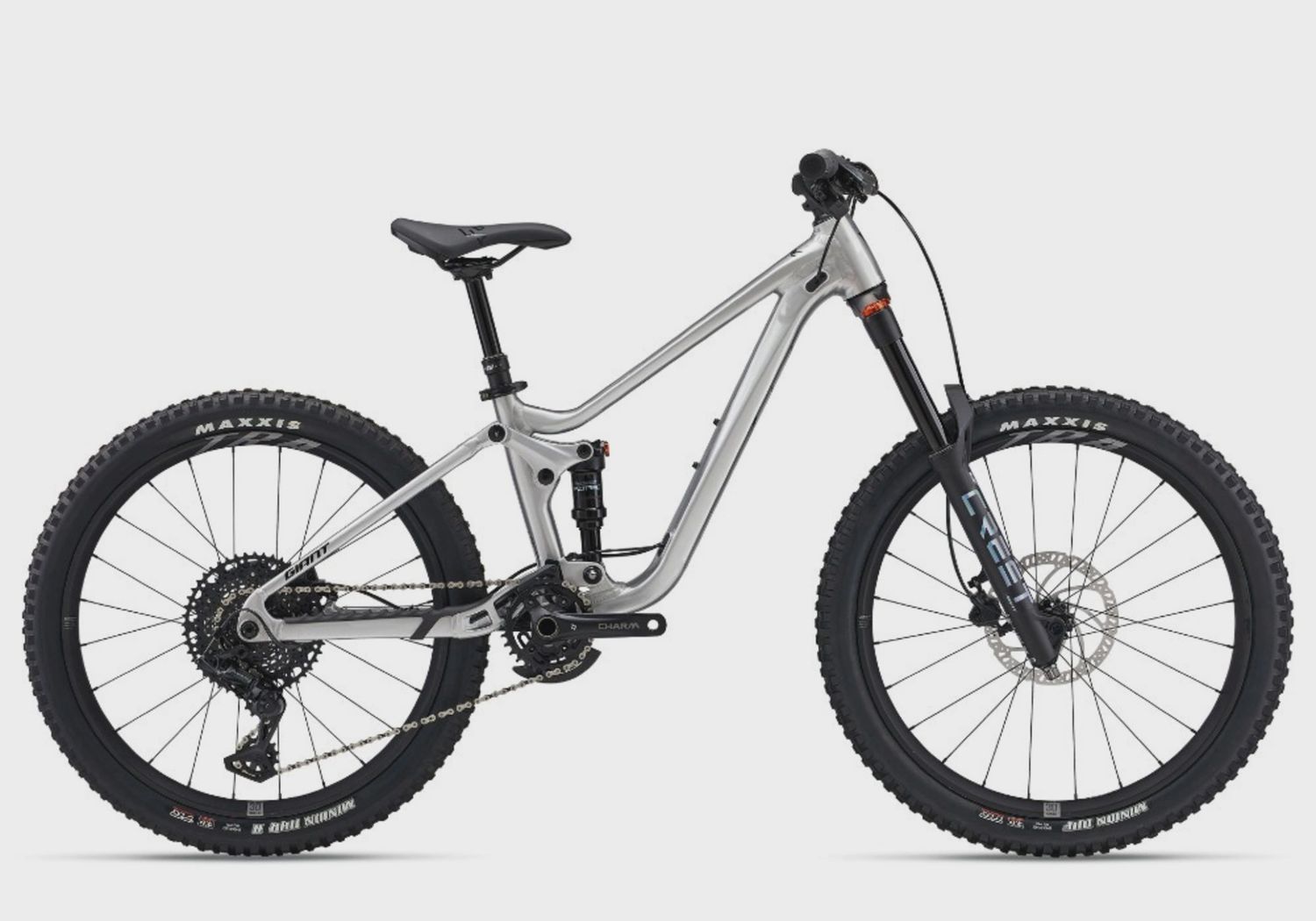

Giant Faith 24

YOUTH-TUNED SUSPENSION

FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.

AGILE AND EFFICIENT

An ALUXX SL aluminium frameset with youth-specific trail geometry is combined with quality lightweight components to minimise weight and help young riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.

OFF-ROAD CONTROL

Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tire pressures for better traction without the risk of tire punctures or rim damage. The youth-specific 24-inch wheels help smaller riders manoeuvre and tackle technical trails, while a dropper seatpost makes it easy to optimise riding position while climbing or descending.

Specification

• Sizes
  One Size
• Colours
  Raw Aluminium
• Frame
  ALUXX SL-Grade Aluminium front and rear triangles, 12x148mm thru-axle, 130mm FlexPoint suspension
• Fork
  Crest TR Elite Lite, FloTune Lite Damper, 140mm
• Shock
  Crest FloTrac Lite, 165/45mm, trunnion mount
• Handlebar
  Giant Contact TR, 20mm rise, AL6061 aluminium, 680mm
• Grips
  Giant small-hand
• Stem
  Giant Contact, 8 degrees, 40mm
• Seatpost
  Contact Switch AT Lite, 100mm
• Saddle
  Selle Royal Vivo Jr
• Pedals
  Giant Pinner Lite
• Shifters
  MicroSHIFT Advent X Trail trigger shifter SL-M9505-R (with nanowire)
• Front Derailleur
  N/A
• Rear Derailleur
  Microshift Advent X RD-M6205AM
• Brakes
  Tektro [F]180mm, [R]160mm
• Brake Levers
  Tektro HD-J285
• Cassette
  Microshift Advent X G-Series 10-speed, 11x48
• Chain
  KMC X10 with missing link
• Crankset
  ProWheel Charm, 30t, 140mm
• Bottom Bracket
  Press Fit
• Rims
  Giant TRA WheelSystem, alloy, hollow rim wall construction, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology [F] 24” [R] 24"
• Hubs
  [F] Giant alloy, DBL, six-bolt [R] TRA HE, DBL, 72t pawl driver, 6 bolt
• Spokes
  Sapim Laser
• Tyres
  [F] Maxxis Minion DHF, 24x2.5, 60 TPI, folding,[R] Maxxis Minion DHR II, 24x2.4, 60 TPI, folding
• Extras
  Giant 1x chain guide
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
