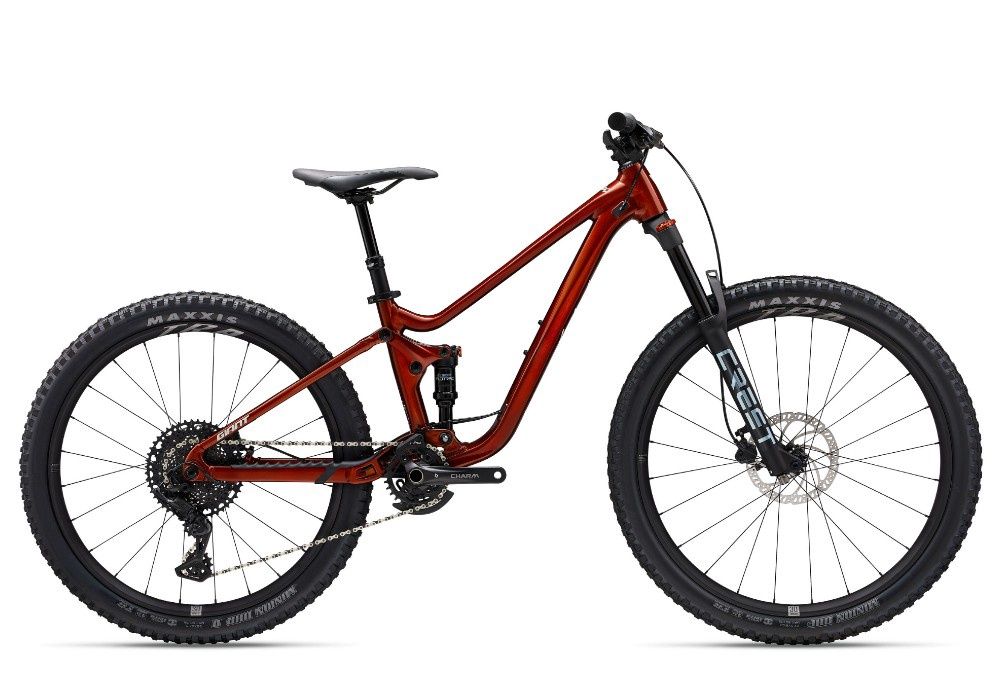

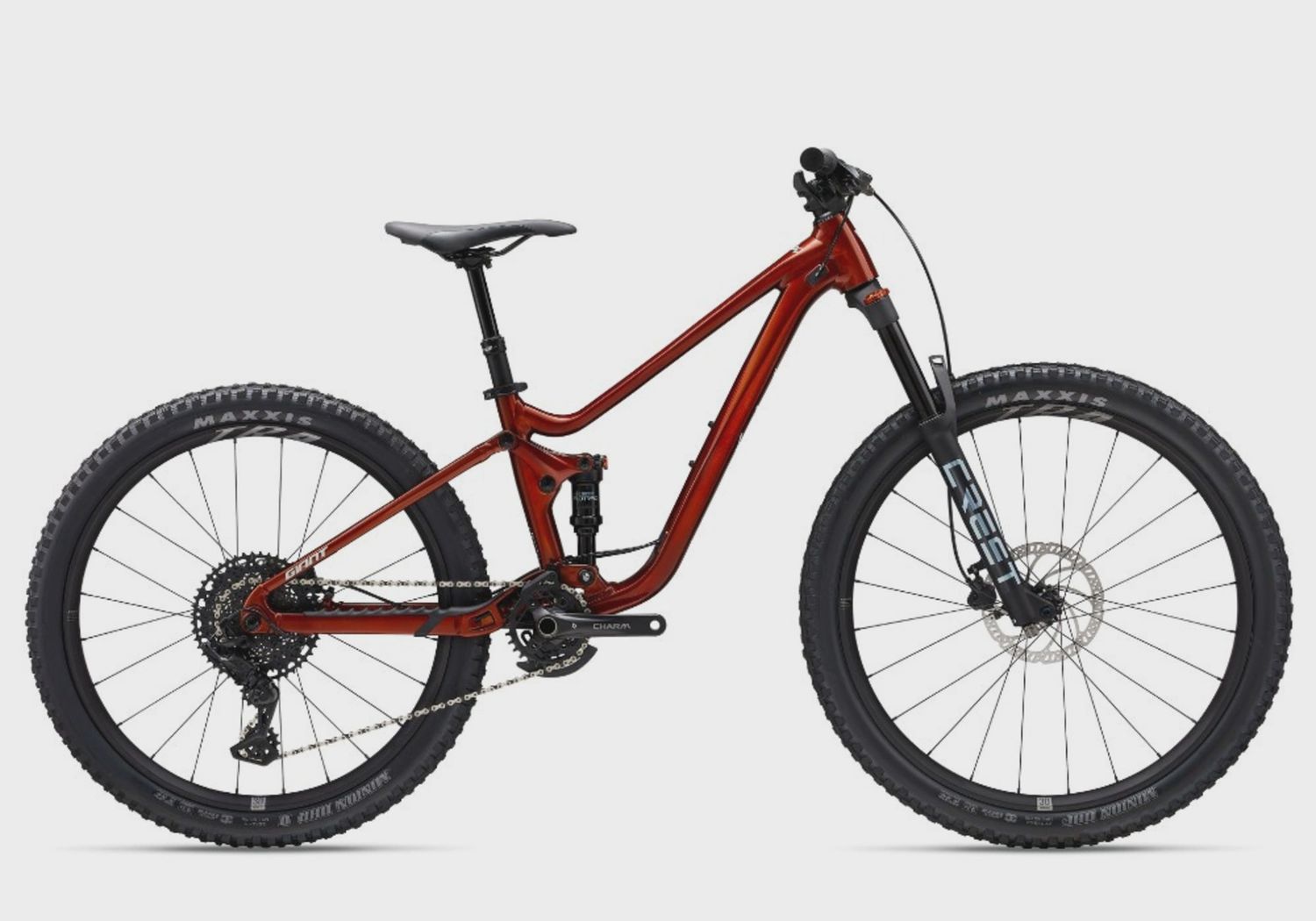

Giant Faith

YOUTH-TUNED SUSPENSION

FlexPoint rear suspension with a Giant Crest FloTrac Lite shock delivers 135mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Giant Crest SL FloTune Lite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activation force, giving young riders smooth control and confidence on technical trails.

AGILE AND EFFICIENT

An ALUXX SL aluminium frameset with youth-specific trail geometry is combined with quality lightweight components to minimise weight and help young riders tackle challenging terrain. A new Giant TRA WheelSystem (27.5-inch front/26-inch rear) borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.

OFF-ROAD CONTROL

TRA WheelSystem with WideGuard technology results in lighter, stronger rims so riders can run lower tire pressures for better traction without the risk of tyre punctures or rim damage. The mixed wheel setup combines the agile handling of the 26-inch rear wheel with the improved rollover capabilities of the 27.5-inch front, while a dropper seatpost makes it easy to optimise riding position while climbing or descending.

Specification

• Sizes
  One Size
• Colours
  Copper
• Frame
  ALUXX SL-Grade Aluminium front and rear triangles, 12x148mm thru-axle, 135mm FlexPoint suspension
• Fork
  Crest SL FloTune Lite, FloTune Lite Damper, 140mm
• Shock
  Crest FloTrac Lite, 165/45mm, trunnion mount
• Handlebar
  Giant Contact TR, 20mm rise, AL6061 aluminium,740mm
• Grips
  Giant small-hand
• Stem
  Giant Contact, 8 degree, 40mm
• Seatpost
  Contact Switch AT Lite, 100mm
• Saddle
  Giant Romero
• Pedals
  Giant Pinner Lite
• Shifters
  MicroSHIFT Advent X Trail trigger shifter SL-M9505-R (with nanowire)
• Front Derailleur
  N/A
• Rear Derailleur
  Microshift Advent X RD-M6205AM
• Brakes
  Tektro [F]180mm, [R]160mm
• Brake Levers
  Tektro HD-J285
• Cassette
  Microshift Advent X G-Series, 10-speed, 11x48
• Chain
  KMC X10 with missing link
• Crankset
  ProWheel Charm, 30t, 155mm
• Bottom Bracket
  Press Fit
• Rims
  Giant TRA WheelSystem, alloy, hollow rim wall construction, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology, [F] 27.5” [R] 26"
• Hubs
  [F] Giant alloy, DBL, six-bolt [R] TRA HE, DBL, 72t pawl driver, 6 bolt
• Spokes
  Sapim Laser
• Tyres
  [F] Maxxis Minion DHF, 27.5x2.5, 60 TPI, folding, [R] Maxxis Minion DHR II, 26x2.4, 60 TPI, folding
• Extras
  Giant 1x chain guide
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
